Quick Details
-
Housing:
-
PA66/ABS
-
Contact Configuration:
-
1NO 1NC
-
Contact Resistance:
-
30m Max
-
Insulation Resistance:
-
100M Min
-
Application:
-
Home Appliance
-
Product type:
-
2/3 Pin Rocker Switch
-
Dielectric Strength:
-
1500V/0.5mA /1MIN
-
Withstand Voltage:
-
1500V AC/min
-
Operating temperature:
-
25 ~+85
Quick Details
-
Max. Voltage:
-
250
-
Place of Origin:
-
Guangdong, China
-
Model:
-
KCD1-2-101 rocker switch
-
Housing:
-
PA66/ABS
-
Contact Configuration:
-
1NO 1NC
-
Contact Resistance:
-
30m Max
-
Insulation Resistance:
-
100M Min
-
Application:
-
Home Appliance
-
Product type:
-
2/3 Pin Rocker Switch
-
Dielectric Strength:
-
1500V/0.5mA /1MIN
-
Withstand Voltage:
-
1500V AC/min
-
Operating temperature:
-
25 ~+85

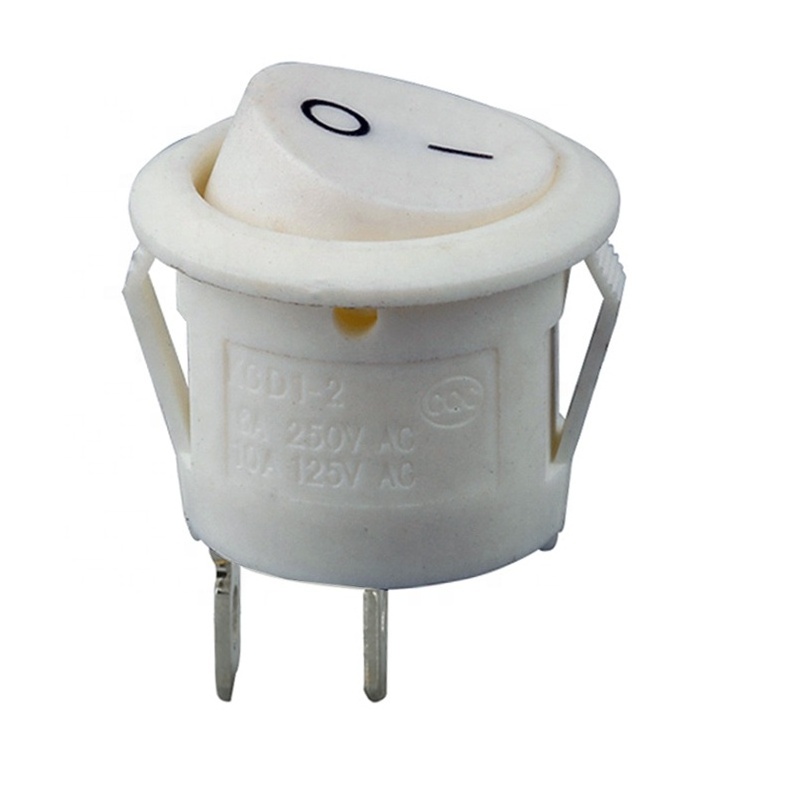

2 position on off white color kcd1 6A 10A T125/55 rocker switch
|
type |
6A 250VAC 10A 125v ON OFF 2PIN round Rocker Switch |
|
C ircuit Diagram |
2pin on off |
|
rating |
10A 125VAC; 6A 250VAC |
|
contact resistance |
< 35MΩ |
|
insulation resistance |
500VDC 1000MΩ Minute |
|
Dielectric strength |
1500VAC, 1 Minute |
|
operating temperature |
-25°C~+85°C |
|
electrical life |
10000 CYCLES |
|
material |
N ylon 66 copper silver-contacts |
|
Application |
Used for electronic equipment and appliance |
|
O perating force |
3-8N |
|
Cold endurance |
-20+-2° C for 96H |
|
Heat endurance |
105+-2° C for 96H |
|
Humidity endurance |
40+-2° C 90-95%RH for 96h |
|
Solder ability |
230+-10° C 3+-1Sec |
|
Terminal strength |
80N |
