Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1979*992*35mm
-
Panel Efficiency:
-
20.61%
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC4 Compatible Connector
-
Application:
-
Solar System
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
-
Type:
-
PERC
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-

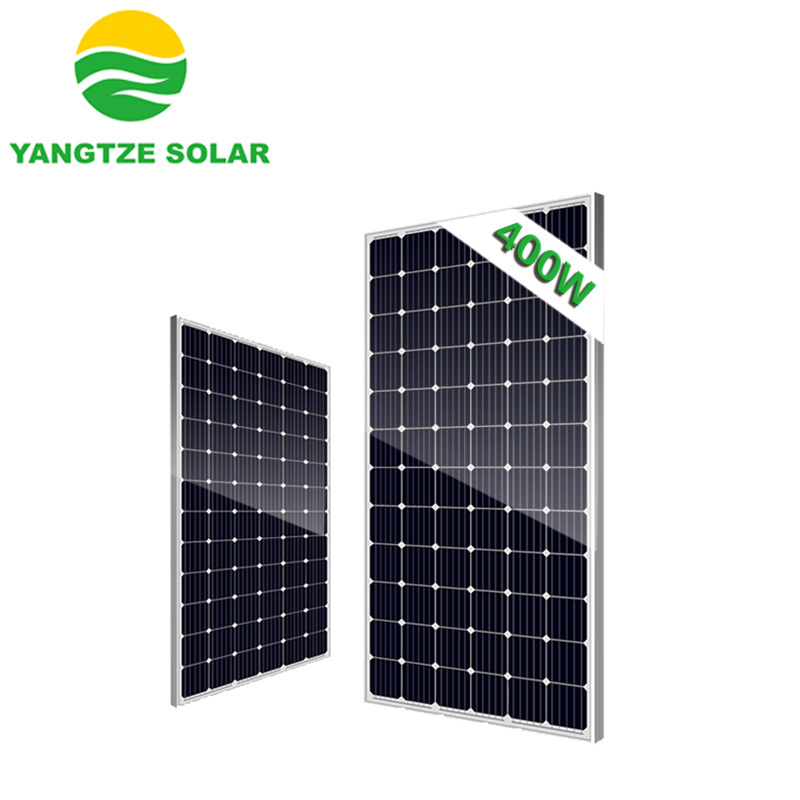

Yangtze Solar
-
Model Number:
-
YS400M-72
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1979*992*35mm
-
Panel Efficiency:
-
20.61%
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC4 Compatible Connector
-
Application:
-
Solar System
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
-
Type:
-
PERC
Product Description
| Model | YS290M-72 | YS300M-72 | YS305M-72 | YS310M-72 | YS315M-72 | YS320M-72 | YS330M-72 |
| Rated Maximum Power at STC | 290W | 300W | 305W | 310W | 315W | 320W | 330W |
| Maximum Power Voltage (Vmp) | 35.7V | 36.2V | 36.4V | 36.8V | 37.1V | 37.4V | 37.8V |
| Maximum Power Current (Imp) | 8.12A | 8.35A | 8.41A | 8.46A | 8.53A | 8.59A | 8.64A |
| Open Circuit Voltage ( Voc) | 44.7V | 45.2V | 45.5V | 45.9V | 46.1V | 46.4V | 46.6V |
| Short Circuit Current (Isc) | 8.65A | 8.77A | 8.81A | 8.85A | 8.92A | 8.98A | 9.03A |
| Module Efficiency | 15.02% | 15.54% | 15.79% | 16.05% | 16.31% | 16.57% | 16.83% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 72 (6x12) | ||||||
| Dimension | 1956x990x40/45/50mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 4mm² , Length: 900mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 3&6 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage |
DC 1000V(IEC) / 1500V(IEC) / 600V(UL) |
||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.40%/°c | ||||||
| Temperature Coefficient of Voc | -0.30%/°c | ||||||
| Temperature Coefficient of Isc | +0.05%/°c | ||||||
structure mono
