Quick Details
-
Interface:
-
Weigand 26/34
-
Power Supply:
-
10-24V DC
-
Active Current:
-
≤80mA
-
Waterproof:
-
IP67
-
User Capacity:
-
2000
-
Operating Humidity:
-
10%~98%RH
-
Operating Temperature:
-
-40°C~+70°C,(-40°F~158°F)
-
Unit Weight:
-
1.2kg
Quick Details
-
Place of Origin:
-
CHINA
-
Dimensions:
-
L100xW43xH20mm
-
Frequency:
-
125khz ,13.56mhz (Option)
-
Interface:
-
Weigand 26/34
-
Power Supply:
-
10-24V DC
-
Active Current:
-
≤80mA
-
Waterproof:
-
IP67
-
User Capacity:
-
2000
-
Operating Humidity:
-
10%~98%RH
-
Operating Temperature:
-
-40°C~+70°C,(-40°F~158°F)
-
Unit Weight:
-
1.2kg

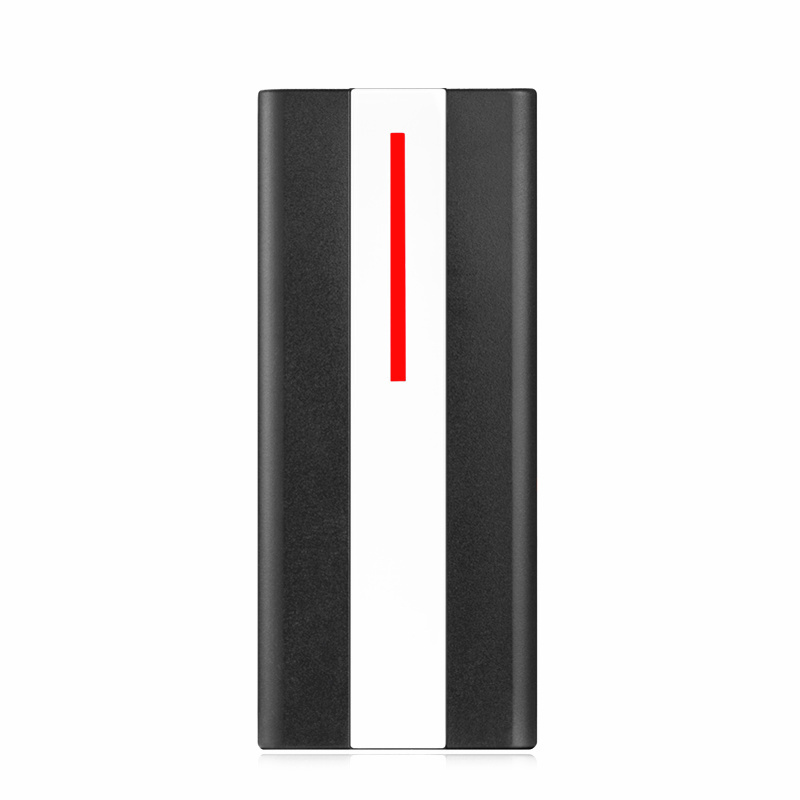

Factory Price 13.56mhz NFC Access Control RFID Reader with relay output
The two series products are contact less proximity card Standalone
Access Control, programed by infrared remote control. Material of
the housing for WP2 is ABS plastic, and Zinc-alloy for 7H102.
Anti-vandal design, and equipped with Admin cards.
Features and Benefits:
1.Wide voltage input: AC /10-24V DC
2.Ani-duress, Anti-passback for single door
3.Waterproof, conforms to IP67
4.Wiegand 26-37 bits input & output
5.Access by multiple cards/PINs
6.Can be installed on 86 type box (HC-7A01)
7.Keypad output:4 bits, 8 bits, 10 digits virtual number
8.Pulse Mode, Toggle Mode
Specifications:
| Power supply | 10-30V AC/DC |
| Idle Current | ≤45mA |
| Active Current | ≤80mA |
| Waterproof | IP67 |
| User Capacity | 2000 |
| Read Range | 4~6cm |
| Card type |
125khz:Tk4100,EM4100,EM4200,T5577,EM4305 13.56mhz:F1108 ,M1 ,S50,S70,213,215,217... |
| Wiegand Interface |
Card: 26-37 bits,
PIN: 4bits, 8bits(ASCII), 10 digits Virtual Number |
| Lock Output Load | ≤2A |
| Alarm Output Load | ≤2A |
| Operating Temperature | -40°C~+70°C,(-40°F~158°F) |
| Operating Humidity | 10%~98%RH |
| Dimensions |
L110xW76xH22mm(Wide)
L129xW44xH20mm(Slim) |
| Shipping Weight |
HC-7H101:0.18kg; HC-7H102:0.29kg. |
INSTALLATION:
1 .Remove the back cover from the unit with screw.
2 .Drill hole on the wall according to the back size of the machine or install distributing box well.
3 .Thread the cable through cable hole, connect related cable.For the un-used cable please separate with insulating tape
4 .After wiring, install front casing to the back casing and fix well.
Wiring:
| Wire Color | Function | Notes |
| Green | NC | Relay NC |
| Brown | COM | Relay COM |
| White | NO | Relay NO |
| Black | GND | Negative Pole |
| Red | AC/DC | 10-24V DC Power Input |
| Yellow | OPEN |
Connect to Exit button and the
Exit button is connected to GND |
Factory Default settings and add admin cards:
Power off, press and hold exit button, power on, release it until hear two beeps. Read two cards, the first card is “Admin Add Card”, and the second card is “Admin Delete Card”, then the device will be in standby mode, resets to factory default setting and adding admin cards are successful.If you don't need to add admin cards: Power off, press exit button,power on, release it until hear two beeps, and the orange LED turn on. Waiting for ten seconds, there is a beep and it will be in standby mode, resets to factory default setting is successful.Reset to factory default, the users' information is still retained.
