Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Yaozhou
-
Model Number:
-
YP400W
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
0-33A
-
Product name:
-
IP65 400W LED Power supply
-
Type:
-
Constant Voltage
-
Warranty:
-
2 Years
-
Size:
-
120*58*184mm
-
Weight:
-
0.5kg
-
Application:
-
LED strip light, LED module, LED display, CCTV, etc.
-
Material:
-
Aluminum Housing
-
Color:
-
Silver White
-
Efficiency:
-
80%
Quick Details
-
Output Power:
-
301 - 400W
-
Input Voltage:
-
AC200-240, AC200-240
-
Output Voltage:
-
11.5-12.4v
-
Place of Origin:
-
China
-
Brand Name:
-
Yaozhou
-
Model Number:
-
YP400W
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
0-33A
-
Product name:
-
IP65 400W LED Power supply
-
Type:
-
Constant Voltage
-
Warranty:
-
2 Years
-
Size:
-
120*58*184mm
-
Weight:
-
0.5kg
-
Application:
-
LED strip light, LED module, LED display, CCTV, etc.
-
Material:
-
Aluminum Housing
-
Color:
-
Silver White
-
Efficiency:
-
80%

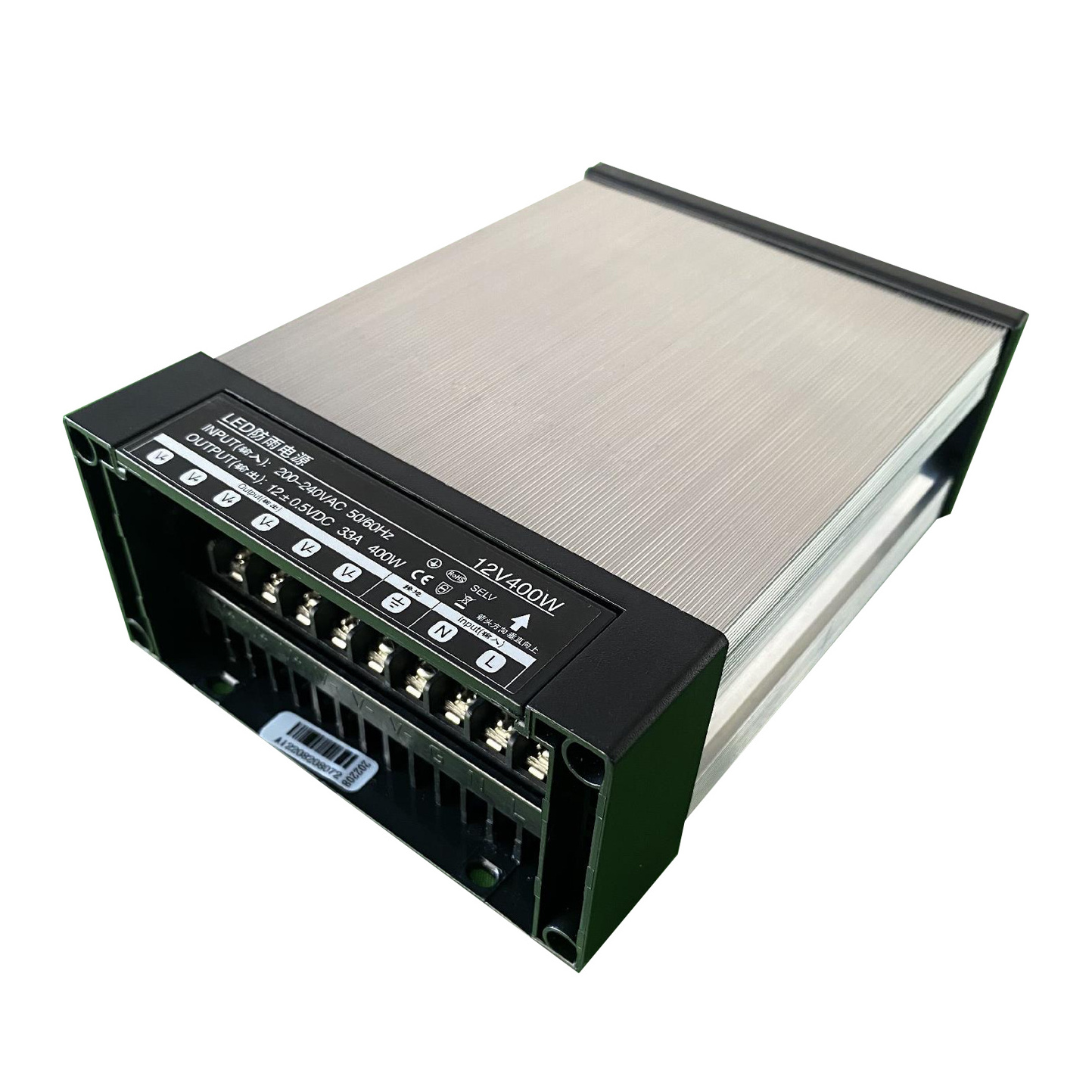

200W 400W 12V Constant Voltage LED Switching Power Supply 220V AC to DC Transformer IP65 Rainproof Power Supply For LED Module
Specifications
2. Protections: short circuit, overload, over-voltage, over-temp.
3. Built-in EMI filter with a tiny ripple
4. 100% full load burn-in test
5. Small-volume high-efficiency
6. Conform to EN60950 GB4943 UL60950 safety standard
| MODEL | 12V 400W | 24V 400W | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 33.3A | 16.6A | |
| CURRENT RANGE | 0~33.3A | 0~16.6A | |
| RATED POWER | 400W | 400W | |
| RIPPLE& NOISE (MAX.) | 150mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±1% | ±1% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | ||
| HOLD UP TIME(Typ.) | 20ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 85~132VAC/170~264VAC | |
| FREQUENCY RANGE | 47~63Hz | ||
| POWER FACTOR(Typ.) | PF>0.6/220VAC | ||
| EFFICIENCY(Typ.) | 82% | 85% | |
| AC CURRENT(Typ.) | 7A/115VAC 4A/230VAC | ||
| INRUSH CURRENT(Typ.) | 40A/115VAC 60A/230VAC | ||
| SHORT CIRCUIT | protection type: recovers automatically after fault condition is removed | ||
| PROTECTION | OVERLOAD | 105~135% hiccup mode, auto-recovery | |
| DC ADJ. RANGE | 115%~135% Cut off the output, auto-recovery | ||
| ENVIRONMENT | WORKING TEMP | -20℃~ +60℃ | |
| WORKING HUMIDITY | 20%~90%RH | ||
| STORAGE TEMP, HUMIDITY | -40℃~+85℃,10%~90%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | CE, ROHS | |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| EMC TESTING STANDARD | EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006; | ||
| EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006 | |||
YaoZhou Electronic Technology CO., Ltd was founded in 2007 with more than 10 years of professional manufacturer experience specializing in LED light series products. We integrate researching, producing, selling,after-sales service, and so on. Meanwhile, more than 300 staff experience in the technology team and market group ensure us own international clients. Provide all kinds of samples, parts, and copies of certificates that are offered to our clients to check the quality of our products and build mutual trust. Product styles are continually updated to satisfy our clients' different requirements and adapt to market requirements.
1, How much voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2, How much current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3, How about the quality?
-- We have the best professional and experienced engineer and a strict QA and QC system. Repair rate under 1.1%-0.2%
4, Can we be your distributor?
-- We are looking for distributors and agents all over the world for switching power supply. Should you have any interested, please feel free to send your message or inquiry.
5, What ’ s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union, etc
6, What ’ s your MOQ?
-- 10pcs, except for sample orders or trial orders.
