Quick Details
-
Dimension:
-
1940mmx1090mmx915mm
-
Place of Origin:
-
China
Quick Details
-
Displacement:
-
300
-
Brand Name:
-
motorsll
-
Tire Size:
-
12INCH
-
Dimension:
-
1940mmx1090mmx915mm
-
Place of Origin:
-
China

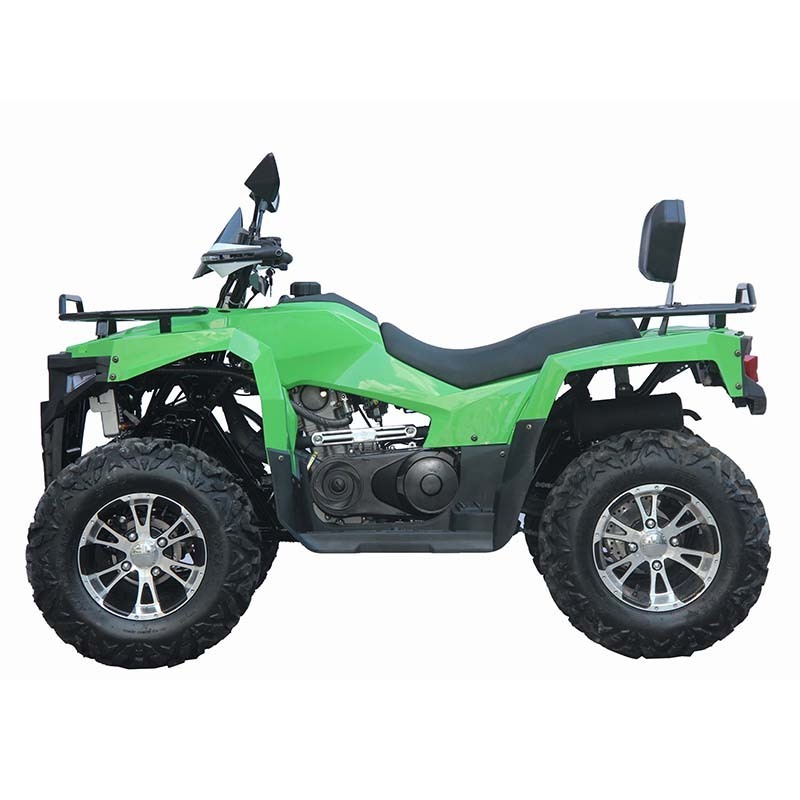

New Design BASHAN ENGINE 300cc 250CC 4 Wheeler Quad ATV Quad Bikes ATV 4x4
| Engine | |
| Engine Type: Water cooled 4stroke signle cylinder | |
| Engine Displacement: 300cc(real 270ml) | |
| Max Power: 13.5Kw/7000r/min | |
| Max Torque: 22N·m/5000r/min | |
| Compression Ratio: 10.5:1 | |
| Ignition: CDI | |
| Starter: electric start | |
| Drive Train | |
| Clutch:CVT gears with reverse gear | |
| Gearbox: FNR | |
| Final Drive:Chain | |
| Dimensions and Weight | |
| Length x Width x Height : 1940mmX1090mmX915mm | |
| Wheelbase: 770mm | |
| Ground Clearance | |
| Front Track: 910mm | |
| Rear Track: 770mm | |
| Seat Height: 780mm | |
| Seat to Footstep: 460mm | |
| Fuel Capacity: 8.5L | |
| Max. speed: 65KM/H | |
| Max load capacity:160kgs | |
| Wheels, Suspension and Brakes | |
| Wheels Front: alloy rim | |
| Wheels Rear: alloy rim | |
| Tyres Front: AT25*8-12 | |
| Tyres Rear AT25*10-12 | |
| Suspension Front:Independent double-wishbone | |
| Suspension Rear:Swing arm with single shock | |
| Brakes Front: Hydraulic disc brake | |
| Brake Rear: Hydraulic disc brake | |
| Packing | |
| Carton Size: 1950mm*1100mm*800mm | |
| G.W./N.W.260KGS/230KGS | |
| 40HQ Loading Quanity: 36PCS | |
