Quick Details
-
Disc(Wheel) Type:
-
Grinding Disc
-
Warranty:
-
1years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DSMACHINETOOL
-
Model Number:
-
U3
-
Rated Voltage:
-
220-380V
-
Weight:
-
60KG
-
Name:
-
Cutter Grinder Machine
-
Feature:
-
Multifuction
-
MOQ:
-
1 Set
-
Packing:
-
Carton Packing
-
Wheel Size:
-
)100x50x20mm
Quick Details
-
Type:
-
Mini Grinder
-
Variable Speed:
-
Yes
-
Rated Input Power:
-
0.375KW
-
Disc(Wheel) Type:
-
Grinding Disc
-
Warranty:
-
1years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DSMACHINETOOL
-
Model Number:
-
U3
-
Rated Voltage:
-
220-380V
-
Weight:
-
60KG
-
Name:
-
Cutter Grinder Machine
-
Feature:
-
Multifuction
-
MOQ:
-
1 Set
-
Packing:
-
Carton Packing
-
Wheel Size:
-
)100x50x20mm

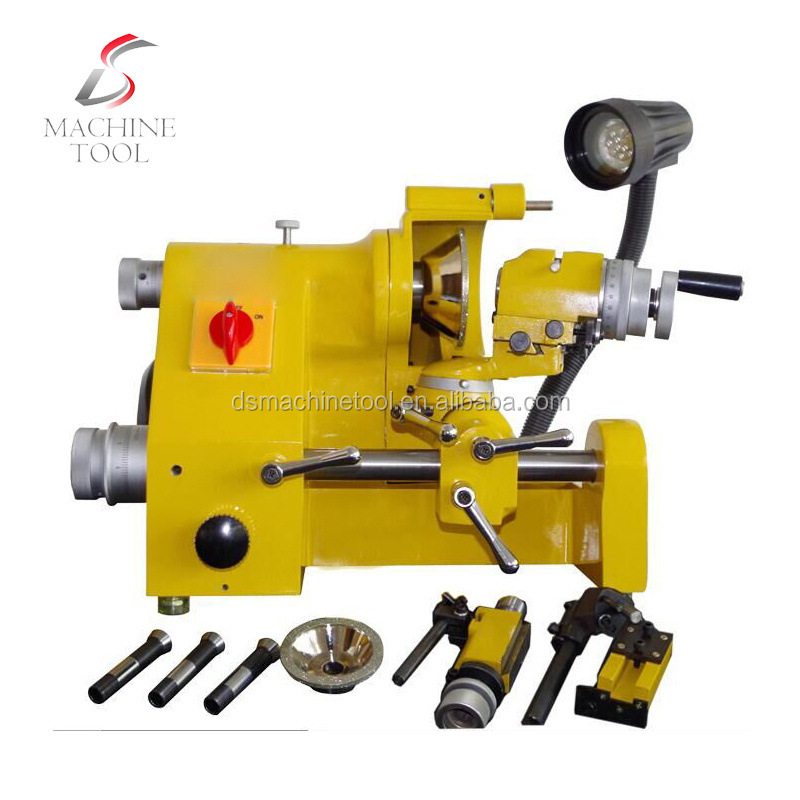

Universal cutting Grinder machine U3
Universal cutting grinding: voltage: 220V or 380V 50HZ
For grinding milling cutter of all kinds of diameter ,shapes and angles for die sinker ,
also to die pin corresponding to the miller according to die sinker scale,
it has ability of grinding turning tools,drill. So it is a necessary equipment in using die sinker with EXCELLENT figuration ,
new structure and good application.
Technical Date
| Technical Date |
| Max. Collet capacity : 3-28mm |
| Taper angle: 0- 180 |
| Relief angle: 0- 44 |
| Negative angel: 0- 52 |
| Grinding spindle:5600 r.p.m. |
| Cup grinding wheel(outside diameter*thickness*hole diameter) 100x50x20mm |
| Longitudinal travel of index head carrier: 140mm |
| Longitudinal adjustment travel of index head carrler: 18mm |
| Motor and voltage: 0.375kw 220V single-phase or 380V 3Phase 50hz/60hz |
| Motor Speed: 2810rpm |
| Net weight : 45kgs |
| Gross weight 60kgs |
| Packing dimensions (L x W x H ) :53.6*42.4*41.5cm |
1. Universal Cutter Grinder*1 2. Adjustable diamond grinding wheel dresser * 1
3. Collt * 3 4. Diamond grinding wheel*1 5. Driving belt * 1 6. Lockpin * 1
7. Spotlight * 1 8. Tools * 1 set 9. Alignment Rod * 1 10. Operation manual * 1
Contain accessories:
U3 universal grinding machine is a computer engraving machine engraving and milling machine, machining center is the necessary equipment, specially designed for engraving milling machine, grinding, carving machine, dividing machine,
computer engraving machine, marking machine, etc all kinds of diameter, shape, Angle of the carving knife, round knife, straight shank cutter, knives, and according to the proportion of engraving the corresponding pin.Easy to use, high precision and good performance.
Real factory photos
Packing photo:
