Through the induction of hot water inlet temperature, automatically adjust the water flow of cold water, so that the water temperature maintain at the temperature that you set already, to avoid burns due to the high temperature of the outlet, especially suitable for those who have children and the elderly in the family..
- Product Details
- {{item.text}}
Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300, 300L
-
Place of Origin:
-
China
-
Brand Name:
-
Soflower
-
Name:
-
Heat Pipe Solar Collector
-
Pipe Material:
-
Glass
-
Certification:
-
CE, SRCC, ISO9001:2008
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300, 300L
-
Place of Origin:
-
China
-
Brand Name:
-
Soflower
-
Name:
-
Heat Pipe Solar Collector
-
Pipe Material:
-
Glass
-
Certification:
-
CE, SRCC, ISO9001:2008
Product Description
SFBS30300L

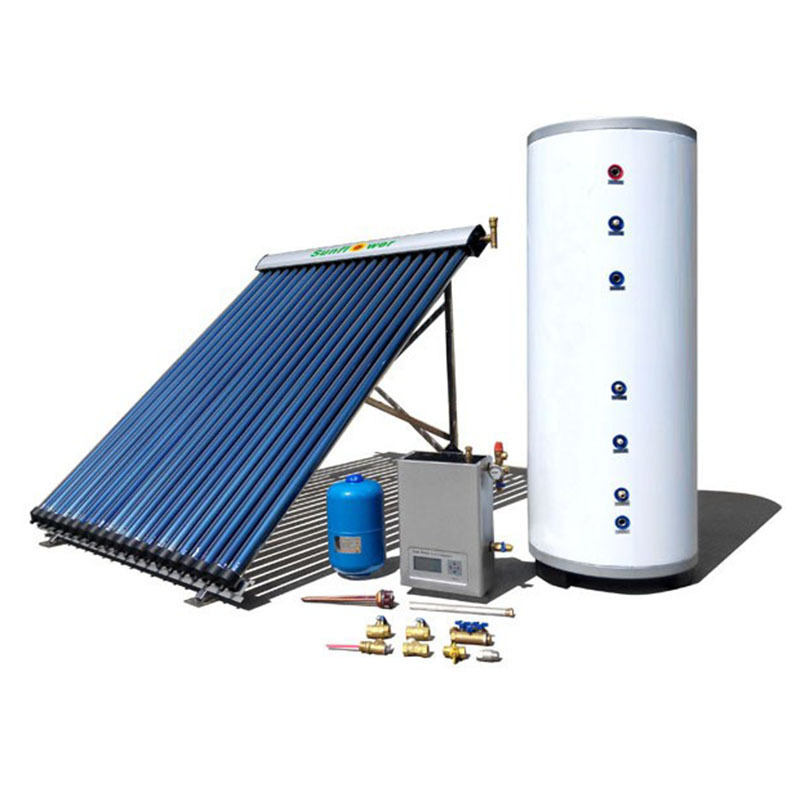

Split pressure heat pipe solar water heater
SFBS30300L is split pressure solar water heater. The solar vacuum collector absorbs solar energy and passes heat through the heat pipe to the flow path. Under the drive of the circulating pump, the working substance is heated as it passes through the runner, the heat is passed to the tank, pool or heat exchanger.
This energy can be used for domestic and commercial hot water heating, hot water supply for hotels and hospitals, pool heating, space heating, solar water desalination and thermal power generation.
Size of Product
Specification
|
Name
|
Moedel and specification
|
|
Quantity
|
|
|
|
Model:SFB305818, 30 tubes heat pipe solar collector
Heat pipes:￠58mm*1800mm*30pcs
Collector Box and frame:aluminum alloy and SS
Heat Preservation Layer: Rock Wool
|
|
|
|
|
|
Model:SFO300C Capacity: 300L
Working pressure: 0.6Mpa
Test pressure: 0.9Mpa
Inner tank: SUS3041.2mm
Outer tank: galvanized sheet 0.5mm
Polyurethane foam layer: 5cm with single coil copper pipe (Φ16mm, thickness 1mm)
|
|
|
|
|
|
Model:SR961S
Circulation Pump: WILO RS15 / 6, low meter, Pressure meter, Overflow Valve, etc
|
|
|
|
|
|
Capacity: 8Liter
Pre-charge pressure 0.2Mpa
Max pressure: 1.0 Mpa,
|
|
|
|
|
|
Include Air Bleeder, Mounting Strip
Filter Valve, Connector between two collectors.
|
|
|
|
|
Package/volume/weight
|
Carton/1.24cbm/180kg
|
|
|
|
|
Packing quantity
|
22sets/20GP,59sets/40GP,54sets/40HQ
|
|
|
|
Optional Accessories
Solar heat pipe collector
Collect solar energy and convert it into heat energy.
Solar Water Tank
The solar water tank is for Storing solar energy.
Solar workstation
The solar power station is an integrated intelligent control device, which controls the operation of the whole system. It includes
solar energy controller, circulating pump, pressure gauge, temperature sensor, safety valve, check valve and so on.
solar energy controller, circulating pump, pressure gauge, temperature sensor, safety valve, check valve and so on.
Expansion tank
Automatically adjust the pressure of circulation pipe to protect the pipe and equipment from damage and extend the life.
Circulation pipe and constant Temperature Mixing Valve
The circulation pipe is recommended to use metal pipe (copper pipe or stainless steel corrugated pipe). Good insulation of the pipe can reduce heat loss.The insulation pipe is wrapped with PE film, which can effectively prevent the aging of ultraviolet rays.
Features
Pressure type solar water heater, hot water outlet pressure is high, bath is more comfortable and relaxed.
Diversified water tank structure design can be used in combination with gas water heater, heat pump, electric water heater, etc.It can maximize the utilization of solar energy and reduce the energy cost for several days.
The hot water storage tank is installed separately from the solar collector. The heat collector is installed on the roof or the ground. The water tank is placed in the courtyard or indoor, which is convenient to install and safe to use.
The heat pipe collector is made of high-quality materials and exquisite craftsmanship, safe and stable operation, and does not require maintenance costs.
Product Advantages
1. Split pressure type solar water heater, perfect domestic hot water supply center.
2. Powerful hot water pressure, bath is more comfortable and relaxed.
3. The solar collector and the building are perfectly integrated.
4. Good working principle design, maintenance and use of low cost.
5. Seamless connection with gas, heat pump, and boiler etc.
6. Efficient solar thermal transformation system
