PVC WPC Profile for Windows Door upvc Window Frame Making Machine Extruder PVC Profile Extrusion line

FOB Reference Price: Get Latest Price

≥1 Sets

US $25000

≥2 Sets

US $10000

Free Inquiry

Customized Request

Explore More Products

PP PE PC Hollow Sheet Lattice Grid Plate Board Extrusion Machine Plastic Extruder Hollow Board Production Line

$ 138000 - $ 139000

High quality Plastic PP PE EVA Single Wall Corrugated Pipe Extrusion Making Machine Production Line

$ 99998 - $ 99999

XPS Plastic Insulation Foam Sheet Extrusion Line PVC Foam Board Machine Polyurethane Foam Machine insulation board thermal insul

$ 168000 - $ 169000

Ultra low price Pvc Double Elastic Floor Sheet Making Machine PVC Elastic floor leather Production Line

$ 168000 - $ 169000

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: CGFE

Voltage:: 380 V/50HZ

Dimension(L*W*H):: 20m*1.8m*2.0m

Power (kW):: 37

Weight:: 2000 KG

Capacity:: 250-300kg/h

Usage:: window/door/roof/office

Raw material:: pvc

Processing Type:: extrusion

Final product:: PVC profile

extruder:: Conical twin screw extruder

After-sales Service Provided:: Field maintenance and repair service

After Warranty Service:: Field maintenance and repair service

Marketing Type:: New Product 2020

Quick Details

Screw Design:: Double-screw

Screw L/D Ratio:: Unapplicable

Screw Speed (rpm):: 34.9 rpm

Place of Origin:: Jiangsu, China

Brand Name:: CGFE

Voltage:: 380 V/50HZ

Dimension(L*W*H):: 20m*1.8m*2.0m

Power (kW):: 37

Weight:: 2000 KG

Capacity:: 250-300kg/h

Usage:: window/door/roof/office

Raw material:: pvc

Processing Type:: extrusion

Final product:: PVC profile

extruder:: Conical twin screw extruder

After-sales Service Provided:: Field maintenance and repair service

After Warranty Service:: Field maintenance and repair service

Marketing Type:: New Product 2020

Products Description

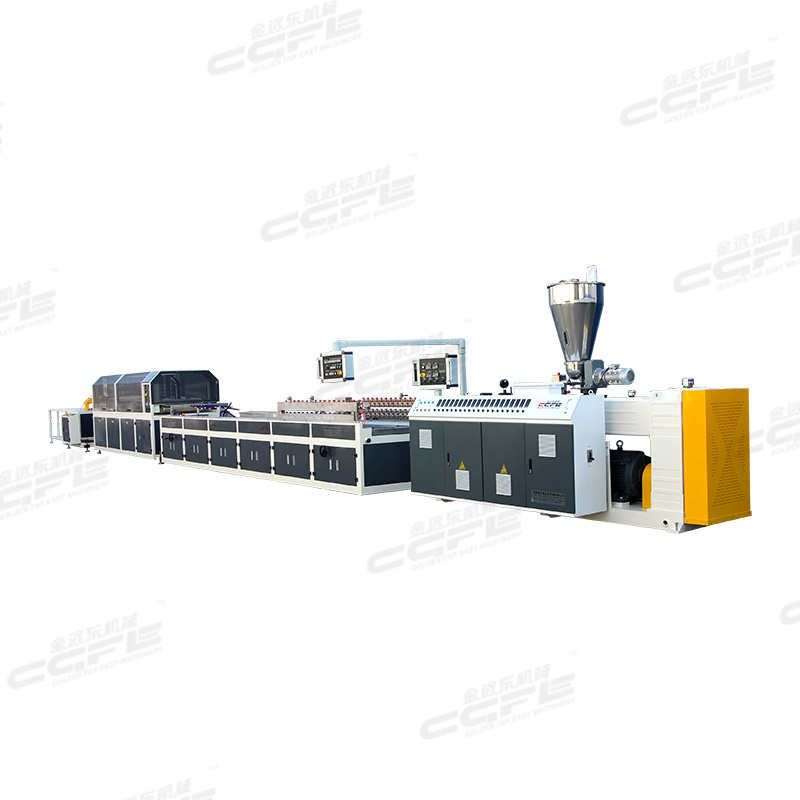

PVC Door and Window Profile Extrusion Line

Main Components

A. Double Screw Extruder

Conical twin-screw extruder has special designed screw and mould structure to protect the screw and barrel from easy-abrasion and ensures an easy operation process.

B. Vacuum Calibration Table

The extrusion system applies special computer control. According to customers requirements, most reasonable structure of conical
twin screw can be made so as to achieve the best performance and material quality.

C. Haul-off Machine

This part is specially designed, the pull force bearing is fully imported, and the drive life span can be prolonged.It can bear large extruding pressure.

D. Cutting Machine

The cooling system has applied special design. The heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1 degree.

E. Stacker

Made of stainless steel, more stable and easy to stack and pack.

Processing Flow

raw material mixing → extruder → shaping table → haul-off → cutting machine → stacker

Applications

●door and window

●decorative material

●cabinet

Advantages

●simple operation and high output

●high quality standard

●h ighly automatic and mechanized, energy saving and environmental-friendly

Technical Parameter

Machine Model	JYDY-150	JYDY-240	JYDY-300
Shaping table length(mm)	3000	4000	5000
Max profile width(mm)	150	240	300
Haul-off speed(m/min)	0-8	0-6	0-5
Total power(kw)	70	95	110
