Quick Details
-
Brand Name:
-
RUNZHOU
-
Use:
-
Telecommunication
-
Application:
-
Telecommunication
-
Certification:
-
ISO9001
-
Wavelength:
-
1260~1650nm
-
Fiber Type:
-
SM/MM
-
Cable Materal:
-
PVC/LSZH
-
Design:
-
OEM
-
Output Connector Type:
-
SC, FC, ST, LC
-
Model Numbe:
-
PLC splitter
-
Insertion Loss:
-
<3dB
-
Cable length:
-
1M/1.5M
Quick Details
-
Type:
-
PLC Splitter
-
Model Number:
-
PLC -001
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUNZHOU
-
Use:
-
Telecommunication
-
Application:
-
Telecommunication
-
Certification:
-
ISO9001
-
Wavelength:
-
1260~1650nm
-
Fiber Type:
-
SM/MM
-
Cable Materal:
-
PVC/LSZH
-
Design:
-
OEM
-
Output Connector Type:
-
SC, FC, ST, LC
-
Model Numbe:
-
PLC splitter
-
Insertion Loss:
-
<3dB
-
Cable length:
-
1M/1.5M
Products Description
Specification

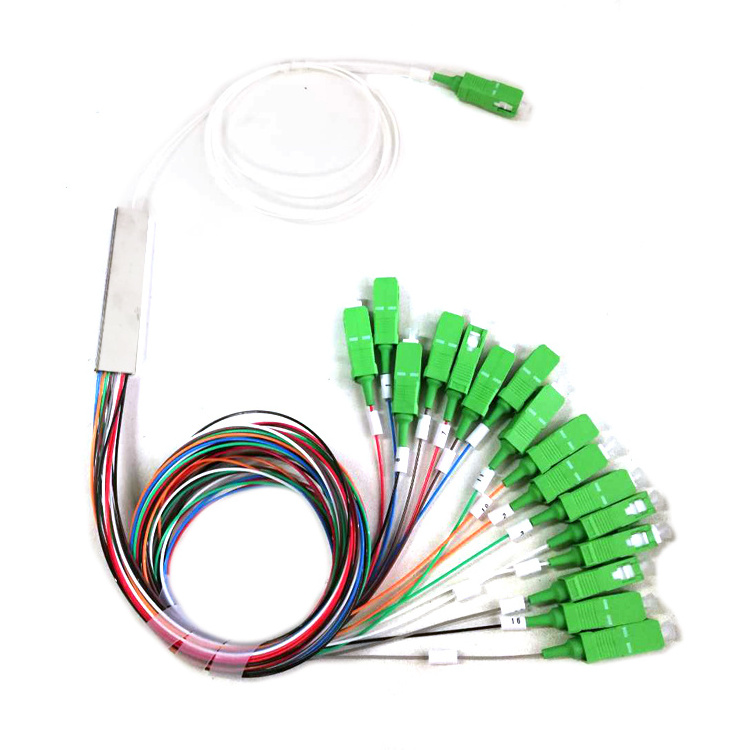

1*16 SC/A PC PLC Splitter Specification
|
Parameter
|
Unit
|
Specification
|
|
|
|
|
|
|||||
|
Operation Wavelength
|
nm
|
1260~1650
|
|
|
|
|
|
|||||
|
Channel Number
|
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|||||
|
Insertion Loss(Max.)
|
dB
|
4.2
|
7.3
|
10.5
|
13.5
|
17.2
|
21.5
|
|||||
|
Uniformity(Max.)
|
dB
|
0.5
|
0.8
|
1
|
1.4
|
1.6
|
2
|
|||||
|
Polarization Dependent Loss
|
dB
|
0.2
|
0.3
|
0.3
|
0.3
|
0.3
|
0.5
|
|||||
|
Return Loss
|
dB
|
≥50
|
|
|
|
|
|
|||||
|
Directivity
|
dB
|
≥50
|
|
|
|
|
|
|||||
Specifications:
Optic Fiber 1*16 PLC Splitter
1.For EPON, GPON, FTTH
2.Low excess, high uniformity
3.GR-1221,GR-1209 standard
4.Low PDL
Optic Fiber 1*16 PLC Splitter
1.For EPON, GPON, FTTH
2.Low excess, high uniformity
3.GR-1221,GR-1209 standard
4.Low PDL
Features:
1. High uniformity
2. Easy Installation
3. High reliability
4. Comply with GR-1221 and GR-1209
5. Various coupling ratio6.Single mode and multi mode available
7. Low PDL, low excess loss, low insertion loss
8. Environmental stable
9. Standard type, compact size
10. Variety of connectors available
Application:
1. FTTX Networks
2. CATV System
3. Testing Device
4. Data Communication
5. Passive Optical Network(EPON,BPON,GPON)
6. Other applications in fiber optic systems
