Quick Details
-
Type:
-
Drone accessories
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
benwujiadi
-
Model Number:
-
Matek System VRX-1G3-V2
-
Type:
-
Drone accessories
Product Description
|
Quantity(pieces)
|
1 - 500
|
501 - 1000
|
1001 - 5000
|
>5000
|
|
Lead time (days)
|
15
|
30
|
45
|
To be negotiated
|
* Description

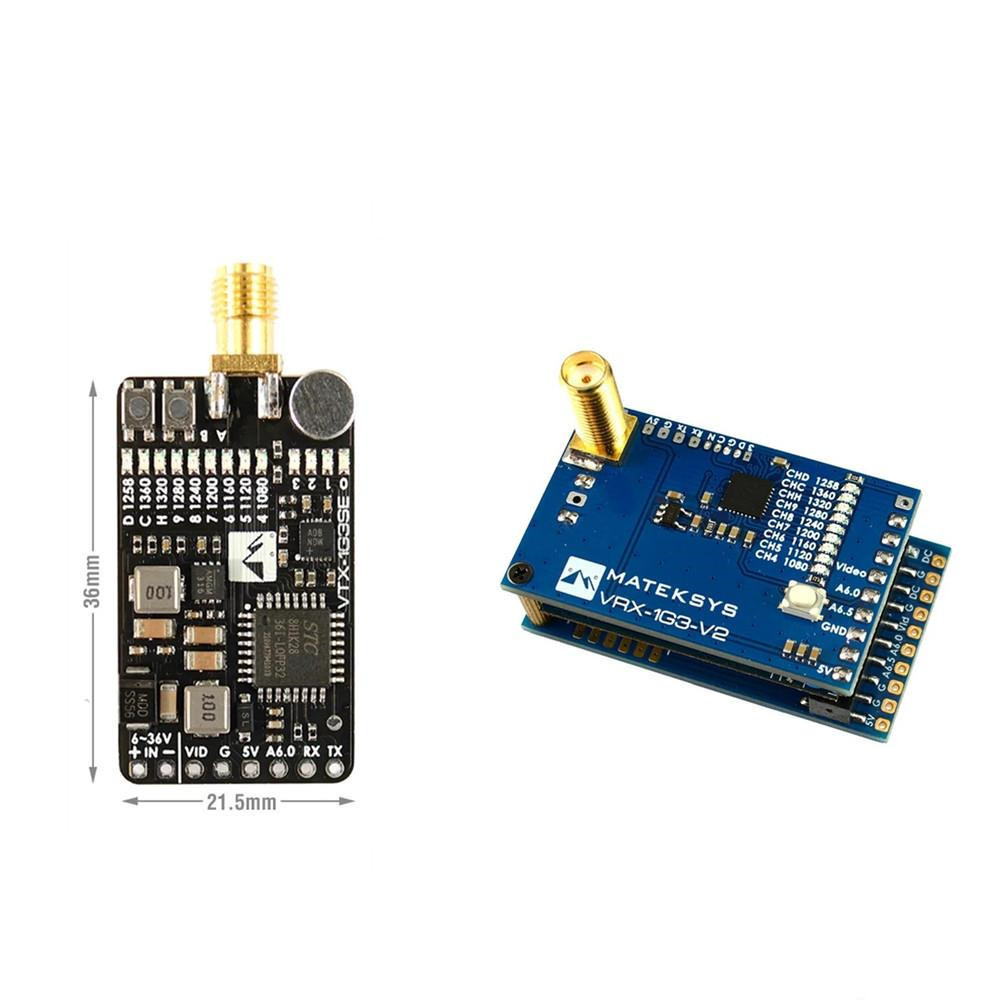

Features & Specifications of Matek 1.3Ghz Receiver
* Receiving frequency: 9CH (1080MHz to 1360MHz)
* RX Sensitivity: -95dBm
* Band-pass filter 950MHz~1450MHz
* Dual input options: 4~5V via pins or 6-30V via “DC” pad on VRX-DK
* Button control and LED indicators
* VRX-DK input voltage 6~30V (“DC” pad)
* VRX-DK regulator output: 5V 2.5A
* Current Consumption: 0.3A @5V
* Video format: NTSC or PAL
* Video Output impedance: 75Ω, Typ.
* Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
* ANT. input impedance: 50Ω, Typ.
* RF Connector: SMA
* 2.54mm pins and PCB size are compatible with FS module
* 5pins (5V, Gnd, A6.5, A6.0, Video) work with FS dock
* Weight: 12g ( w/o dock), 19g (w/ dock)
* Size: board 43*27mm
Includes
* 1x 1.2/1.3G Video receiver VRX-1G3-V2
* 1x VRX-DK
* 1x Dipole antenna_SMA, center freq 1240MHz
How to configure Matek 1.3Ghz Receiver
* Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
* Press the button to select the frequency
* When the LED blinks at new frequency, RF input is enabled on this frequency.
* New frequency will be saved if no button action within 3 seconds
* Receiving frequency: 9CH (1080MHz to 1360MHz)
* RX Sensitivity: -95dBm
* Band-pass filter 950MHz~1450MHz
* Dual input options: 4~5V via pins or 6-30V via “DC” pad on VRX-DK
* Button control and LED indicators
* VRX-DK input voltage 6~30V (“DC” pad)
* VRX-DK regulator output: 5V 2.5A
* Current Consumption: 0.3A @5V
* Video format: NTSC or PAL
* Video Output impedance: 75Ω, Typ.
* Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
* ANT. input impedance: 50Ω, Typ.
* RF Connector: SMA
* 2.54mm pins and PCB size are compatible with FS module
* 5pins (5V, Gnd, A6.5, A6.0, Video) work with FS dock
* Weight: 12g ( w/o dock), 19g (w/ dock)
* Size: board 43*27mm
Includes
* 1x 1.2/1.3G Video receiver VRX-1G3-V2
* 1x VRX-DK
* 1x Dipole antenna_SMA, center freq 1240MHz
How to configure Matek 1.3Ghz Receiver
* Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
* Press the button to select the frequency
* When the LED blinks at new frequency, RF input is enabled on this frequency.
* New frequency will be saved if no button action within 3 seconds
