Quick Details
-
Place of Origin:
-
Shanghai
-
Model Number:
-
XC-APA-002
-
Color:
-
brown,pink,green
-
Application:
-
ceiling and wall
-
Type:
-
Other Door & Window Accessories
-
Product name:
-
Access panel
-
Certification:
-
ISO9001
-
Aluminum Thickness:
-
12.5mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Place of Origin:
-
Shanghai
-
Model Number:
-
XC-APA-002
-
Color:
-
brown,pink,green
-
Application:
-
ceiling and wall
-
Type:
-
Other Door & Window Accessories
-
Product name:
-
Access panel
-
Certification:
-
ISO9001
-
Aluminum Thickness:
-
12.5mm

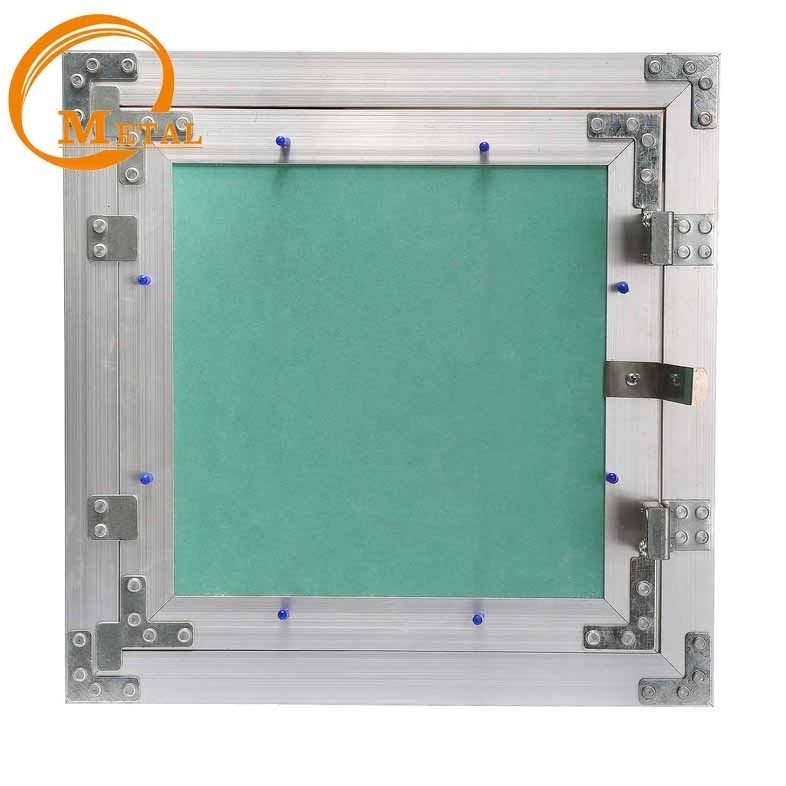

Access Panel Aluminum frame with spring hook and Green plasterboard
XC-APA-002 access panel
XC-APA-002 access panels are considered as" standard access panels" , because it comes into people's sight very early. Meanwhile, the consicion design and effective function and cheap price are also attractive.This design is popular both in Euope and Middle East market.
High quality push lock, or touch latch is required for this model, it directly effects the function of the whole product. Xicheng produce this push lock by our-self to make sure the product with good quality.
Character
1. Aluminum frame anodized.
2. High quality push lock/touch latch, strong hardware
3. Strong aluminum frame with gypsum board inlay.
4. Inner door of the access panel can be taken out easily.
5. Spring hook or stee wire hook for safety protect.
6. Easy open and close, quick installation.
7. White powder coating finish are available on request.
8. Quick production and delivery.
Standard Sizes (Special Sizes Available Upon Request)
| MODEL | SIZES(MM) | Q’TY/BOX(PCS) |
| XC-APA-002-01 | 200*200 | 2 |
| XC-APA-002-02 | 300*300 | 2 |
| XC-APA-002-03 | 400*400 | 2 |
| XC-APA-002-04 | 450*450 | 2 |
| XC-APA-002-05 | 500*500 | 2 |
| XC-APA-002-06 | 600*600 | 2 |
Description of XC-APA-002
Attributes:
1. Easy and quick installation,fixing by screws or clips
2. High-class quality, perfect design, light weight but strong bearing capacity,
Application:
1.Ceilings and walls of building, hotels, shopping malls, hospital, school, office, house and etc indoor decoration
2.Central air conditioning system
3. Access ductwork or pipe work above the light fixtures , vents , fire fighting pipeline, bathroom pipeline, etc.
Advantages:
1. Strong aluminum frame and hardware
2. Available in ceiling maintenance panel
3. White powder-coated finish can available
4. With clips for safety system
5. Special spring fixed for inner and outer frames, with easy and comfortable control handles
6. Gypsum board inlay available
7. Simple removable door panel, with safety
8. Quick installation without difficulties
Brand advantage
| Customized choice | Depends on your requested size and specifications. |
| LONGtime supplying | one of 7 years reliable suppliers on the ALIBABA platform. |
| RELIABLE | Your new factory means your longest choice according to the marketing reflection. |
| good service |
The good service based on our own best sales-team. they are 7 years’ selling all over the world but we never get complain from customers! |
| PROFESSIONAL | Factory specially supplying each the refinement parts of door accessories. |
| PRECISION DETAILS | All the latches and locks are produced by our own factory so finest and lubricous connected outlay surface. |
Packing, Storage, Transportation, Service
Color box, label, special box, carton and pallet can be provided according to customer request. Our warehouse is dry and clean, goods are well kept. The container can be loaded directly into our factory. Sometimes per customer’s request, we help them souring some goods, or customer purchase by themselves. These out-side purchased items can group together with ourselves produced item and keep in our warehouse, and loading together.
Good service can be assured. Thank you for working with us!
Installation steps:
1. Fix the position and draw the correct size on the plasterboard.
2. Drill a rough hole matching the access hole on the plasterboard;
3. Place the access hole at the rough hole;
4. Fix the first fastener/screw to the frame, check and align with the hole, and then apply the second screw;
5. Open the door several times to check the flexibility;
6. Put multiple screws on the frame;
7. Especially the corner must be marked with screws;
8. The installation is complete;
9. Close the access port;
