Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
China
-
Brand Name:
-
OEM/ODM
-
Size:
-
STANDARD
-
Car Model:
-
for Commercial Fiat Iveco Daily II
-
Engine Code:
-
8140.23.3700, 8140, S9Q700/702
-
Model Number:
-
TD04, TF035HM-13T-6
-
Part Number:
-
49135-05010
-
OEM Number:
-
99450704, 7701044612, 99466793
-
Previous Version:
-
4913505010, 53149886445
-
Engine type:
-
8140.23.3700, 8140, S9Q700/702
-
Application:
-
for Commercial Fiat Iveco Daily II
-
Warranty Time:
-
12 months
-
Certification:
-
CE/TS16949/ISO9001:2008
-
Delivery time:
-
3-5 Working Days
-
Package:
-
Neutral Packing
Quick Details
-
OE NO.:
-
99450704, 7701044612, 99466793
-
Condition:
-
New
-
Reference NO.:
-
53039900054, 49S35-05000, 53149886444, 126015, 53149886446, 454061-5014S, 4913505000, 454061-0010, 49377-07050, 49377-07052, 454061-14, 53149706445, 49S35-05030, 49S35-05050, 124080, 53039900081, 49S35-05010, 53149806445, 4913505010, 53039700054
-
Warranty:
-
1year
-
Place of Origin:
-
China
-
Brand Name:
-
OEM/ODM
-
Size:
-
STANDARD
-
Car Model:
-
for Commercial Fiat Iveco Daily II
-
Engine Code:
-
8140.23.3700, 8140, S9Q700/702
-
Model Number:
-
TD04, TF035HM-13T-6
-
Part Number:
-
49135-05010
-
OEM Number:
-
99450704, 7701044612, 99466793
-
Previous Version:
-
4913505010, 53149886445
-
Engine type:
-
8140.23.3700, 8140, S9Q700/702
-
Application:
-
for Commercial Fiat Iveco Daily II
-
Warranty Time:
-
12 months
-
Certification:
-
CE/TS16949/ISO9001:2008
-
Delivery time:
-
3-5 Working Days
-
Package:
-
Neutral Packing

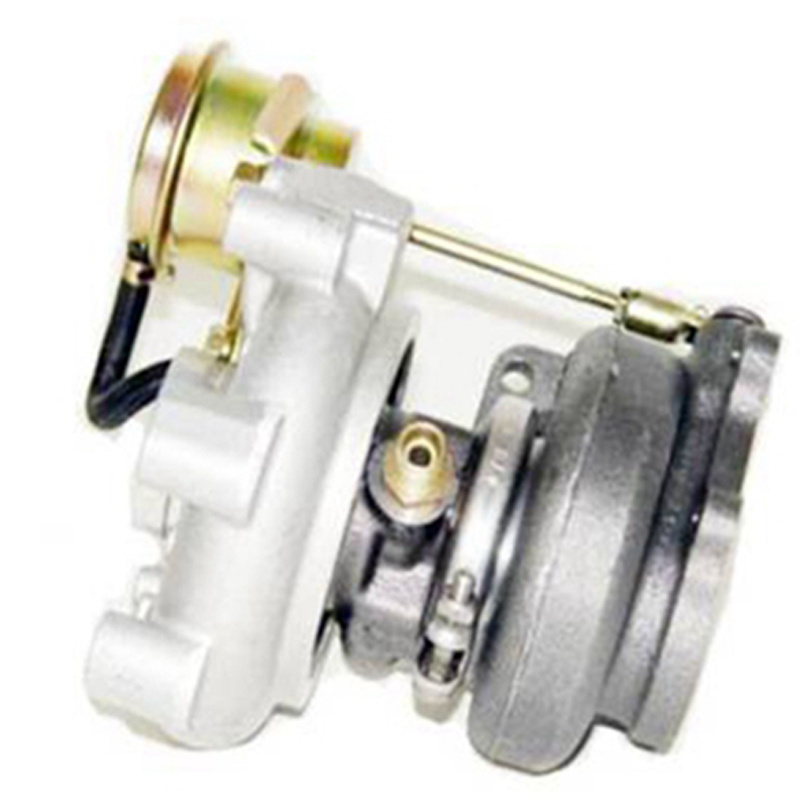

Factory turbocompresor TD04 TF035 49135-05010 99450704 7701044612 99466793 turbo charger for Iveco engine 8140 turbocharger
Product Description
| Part Number | 49135-05010 |
| Previous Part Number | 4913505010, 53149886445 |
| OE number | 99450704, 7701044612, 99466793 |
| Description | Commercial Fiat Iveco Daily II, Renault Master, Opel/Vauxhall Movano |
| Engine Code | 8140.43.3700 |
| Manufacturer Part Number | 49135-05010 |
| CHRA | 49135-08100 (49135-08101)(1401635920, 1000050116) |
| Turbo Model | TD04, TF035HM-13T-6 |
| Engine | 8140.23.3700, 8140, S9Q700/702 |
| Displacement | 2.8L, 2798 ccm, 4 Cylinders |
| KW | 90/122 |
| RPM Max | 3500 |
| Fuel | Diesel |
| Bearing Housing | 49177-25420 (Oil Cooled)(1401404451, 1900011200) = |
| Turbine Wheel | 49135-30100 (Ind. 36.23 mm, Exd. 43. mm, Trm 6.55, 11 Blades)(1401635435, 1100030027) |
| Comp. Wheel | 49135-00015 (Ind. 38.3 mm, Exd. 51. mm, Trm 7., 6+6 Blades, Superback)(1401635427, 1200030063) |
| Back plate | 49135-00044 (49135-15405)(1401635300, 1800016016) |
| Heat shield Number | 49170-19100 (2030016010) |
| Repair Kit | 49135-TFO35 (Major)(1401635751, 5000050003B) |
| Turbine Housing | 49135-15000 |
| Compressor Cover | 49135-00080 |
| Turbine Housing AR | 6.0 |
| Settings Wastegate (pressure) | 1.160/1.300 bar |
| Settings Wastegate (lift shaft) | 1.00/5.00 mm |
| Actuator | 49135-18814 (49135-18801)(2061016553) |
| Gasket (turbine inlet) | 210338 (Inox Steel) |
| Gasket (turbine outlet) | 210350 (Stainless Steel) |
| Gasket (oil outlet) | 210243 (Paper) |
| Gasket Kit | 215029 (1900100185, 2090505168) |
Applications
1996-99 Iveco Daily II 2.8L Engine 8140
