Pneumatic Switch Wind Induction Switch Air Flow Sensing Switch For Air Purifier UV HVAC Ventilation System

Pneumatic Switch Wind Induction Switch Air Flow Sensing Switch For Air Purifier UV HVAC Ventilation System

FOB Reference Price: Get Latest Price

≥1 Pieces

US $19.89

≥10 Pieces

US $13.58

≥500 Pieces

US $9.56

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KY-AFS-50

Type:: Touchless

Power:: 10ma

Sensing Range:: 1-15cm

Load control capacity:: 5A/10A/20A

Applicable temperature:: -20℃~50℃

Minimum perceived airflow:: 0.5m/s

Size:: 105*55*33mm

Hole distance:: 95mm,45mm

95mm,45mm:: 3.5mm

Function:: Sensing wind speed or airflow/detecting fault fan motor

Application:: central air-conditioning/any fan

OEM/ODM Service:: YES

Support Customized:: YES

Certification:: CE

Quick Details

Voltage:: DC12V/AC110V/AC220V

Place of Origin:: Guangdong, China

Brand Name:: Kinyo

Model Number:: KY-AFS-50

Type:: Touchless

Power:: 10ma

Sensing Range:: 1-15cm

Load control capacity:: 5A/10A/20A

Applicable temperature:: -20℃~50℃

Minimum perceived airflow:: 0.5m/s

Size:: 105*55*33mm

Hole distance:: 95mm,45mm

95mm,45mm:: 3.5mm

Function:: Sensing wind speed or airflow/detecting fault fan motor

Application:: central air-conditioning/any fan

OEM/ODM Service:: YES

Support Customized:: YES

Certification:: CE

Product Description

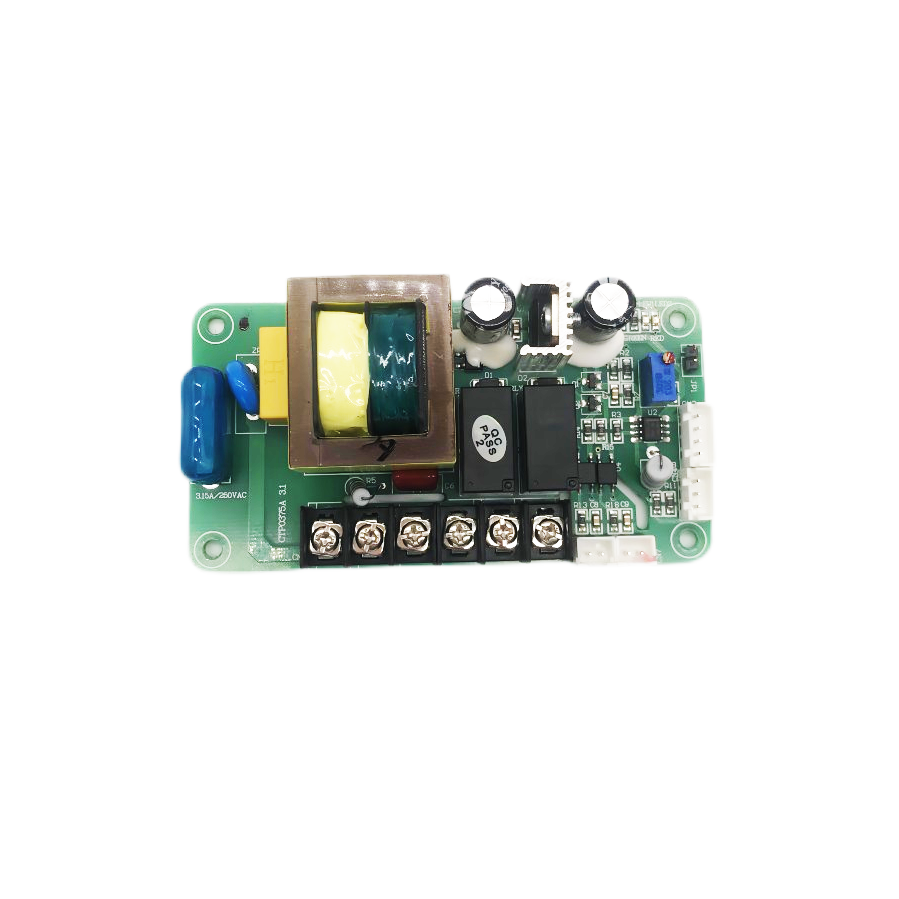

This product is a sensor that senses wind speed or airflow, equivalent to a pneumatic switch, with a minimum perceived wind speed of 200ml/min,The perceived wind speed can be adjusted as needed, with an input voltage of DC12V AC110V/60Hz or AC220V/50Hz; It can be applied to various devices in the central air conditioning duct, such as ultraviolet lamps, air purifiers, etc., to achieve linkage with the central air conditioning fan, and can also be applied to fault detection sensors forvarious types of fans

Feature and benefits

* Use high-performance sensor chip;
* Perceived air volume≥200ml/min;
* The size of the perceived air volume can be adjusted;
* When there is wind, the relay will act, and when there is no wind, the relay will be disconnected;
* With temperature compensation function;
* Input voltage: DC 12V AC 110V/60Hz or AC 220V/50Hz;
* Load control capacity:5A,10A, 20A.

* OEM/ODM Service

* Support Customized

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Kinyo
Model Number	KY-AFS-50
Warranty	3months-1year
Type	Touchless
Certification	CE
Power	10ma
Voltage	DC12V/AC110V/AC220V
Customized	Yes
Sensing Range	1-15cm
Whether the smart	Yes
Load control capacity	5A/10A/20A
Applicable temperature	-20℃~50℃
Minimum perceived airflow	0.5m/s
Size	1055533mm
Hole distance	95mm,45mm
95mm,45mm	3.5mm
Function	Sensing wind speed or airflow/detecting fault fan motor
Application	central air-conditioning/any fan
OEM/ODM Service	YES
Support Customized	YES
