Quick Details
-
Cooling Capacity:
-
2~15hp
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dachang
-
Voltage:
-
220V/380V
-
Power:
-
2700W or above
-
Dimension(L*W*H):
-
3000mm *2500mm *2300mm
-
Weight:
-
1000 KG
-
Product name:
-
Mini Cold Storage
-
Insulation:
-
Polyurethane panel
-
Application:
-
Meat Fresh
-
Color:
-
Grey-white
-
Door:
-
Hinge door with hydraulic closer
-
Compressor:
-
Copeland,Bitzer,Tecumseh etc
-
Refrigerant:
-
R404a/R507a
-
Refrigerant type:
-
Fan cooling
-
Certification:
-
CE,ETL
Quick Details
-
Temperature:
-
-5℃ ~ +5℃
-
Compressor brand:
-
Copeland, Bitzer, Sanyo
-
Panel Thickness:
-
100mm, 120mm, 50mm, 150mm
-
Cooling Capacity:
-
2~15hp
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dachang
-
Voltage:
-
220V/380V
-
Power:
-
2700W or above
-
Dimension(L*W*H):
-
3000mm *2500mm *2300mm
-
Weight:
-
1000 KG
-
Product name:
-
Mini Cold Storage
-
Insulation:
-
Polyurethane panel
-
Application:
-
Meat Fresh
-
Color:
-
Grey-white
-
Door:
-
Hinge door with hydraulic closer
-
Compressor:
-
Copeland,Bitzer,Tecumseh etc
-
Refrigerant:
-
R404a/R507a
-
Refrigerant type:
-
Fan cooling
-
Certification:
-
CE,ETL

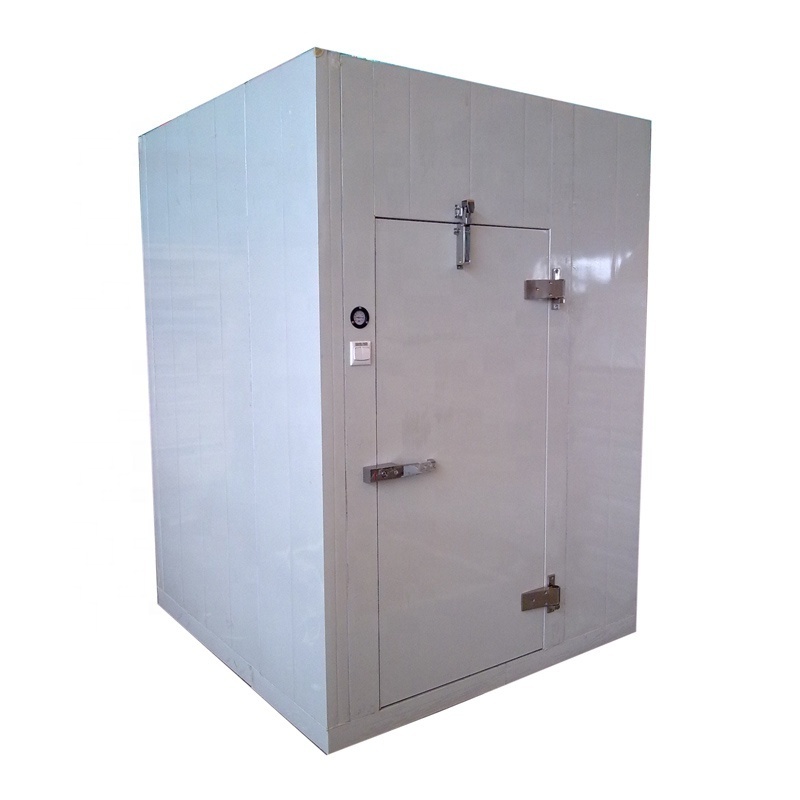

Commercial cold room / Cold Storage for Frozen Food
Dachang company has been in the business line of cold room for 20years, we provide the perfect sulutions to the modular cold room .
Specification of cold room
- type: cam locks
- size: 3000mm L*2500mm W*2300mm H
- temperature: 0~5degree C
- with standard insulation floor
Customized cold room storage is available:
| Dimension | Length (m) *Width (m)*Height (m) |
| Panel | polyurethane insulation panel,43kg/m3, fire retardant |
| Foaming material | BASF |
| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | hinge door, convex door, sliding door |
| Temp.of room | -45~+20 degree, optional |
| Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
| Refrigeration unit | Copeland / Bitzer / Sanyo etc |
| Refrigeration type | air cooled / water cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional
|
Feature of cold storage room
- polyurethane insulation panel , BASF material foamed by high pressure,density 43kg/m3,with fire retardant,panel thick 100mm
- Surface steel finish: painted galvanized steel
- Cold room hinge door : high quality hinges, hydraulic closer, auto-closing. Equipped with safety knob
- Compressor brands option: Bitzer, Copeland, Tecumseh etc.
- Refrigerant optional: R404a, R507a
- Domestic and imported evaporator optional
- Fittings like light and switch, control box, control wire etc are available.
Cold room projects we make:
Production line for PU panels
Packing
plywood box for refrigeration units, bubble paper for polyurethane cold panels
