Quick Details
-
Brand Name:
-
Other
-
Model Number:
-
C9300L-24P-4G-E
-
Place of Origin:
-
Beijing, China
-

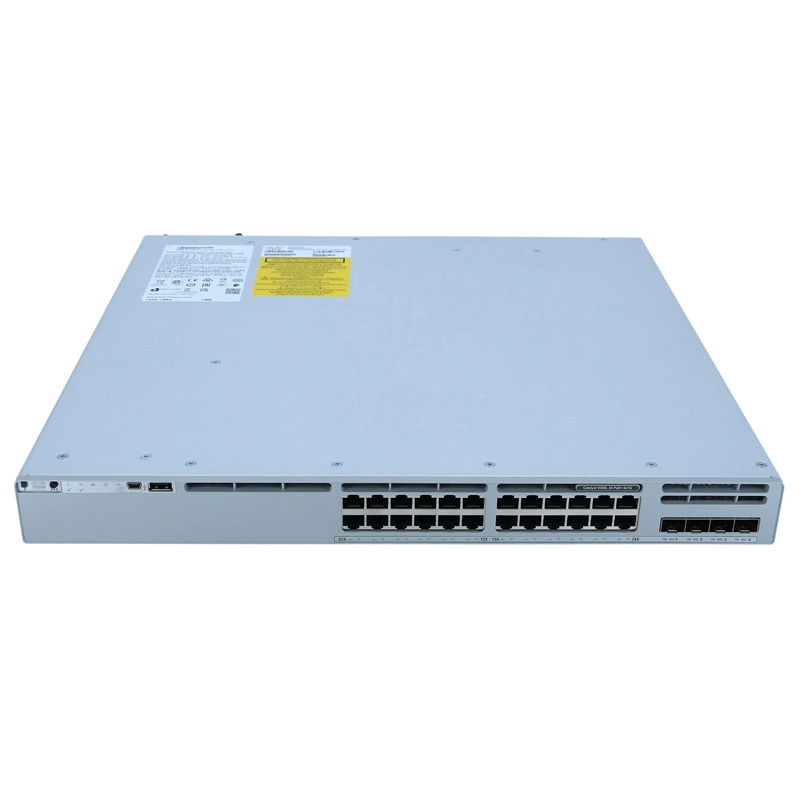

Product Name:
-
Layer 3 core Ethernet switch supports POE ports
-
Model:
-
C9300L-24P-4G-E
-
Fixed Ports:
-
24*10/100/1000BASE-T ports(PoE+)
-
Uplink Ports:
-
4*1GE SFP Uplink ports
-
PoE Ports:
-
Supported
-
POE power budget:
-
720W
-
Power Supply:
-
PWR-C1-715WAC-P
-
Dimensions H x W x D:
-
1.73 x 17.5 x 19.2in
-
Condition:
-
New original sealed packaging
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56 Gbps
-
Brand Name:
-
Other
-
Model Number:
-
C9300L-24P-4G-E
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Layer 3 core Ethernet switch supports POE ports
-
Model:
-
C9300L-24P-4G-E
-
Fixed Ports:
-
24*10/100/1000BASE-T ports(PoE+)
-
Uplink Ports:
-
4*1GE SFP Uplink ports
-
PoE Ports:
-
Supported
-
POE power budget:
-
720W
-
Power Supply:
-
PWR-C1-715WAC-P
-
Dimensions H x W x D:
-
1.73 x 17.5 x 19.2in
-
Condition:
-
New original sealed packaging
-
Warranty:
-
1 Year
Product overview
C9300L Series Ethernet Gigabit Network Core switches.
C9300L Series switches are lead stackable enterprise access switching platform and as part of the C9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. The C9300L Series, including the new C9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. With C9300L switches, you choose how you want to manage your network – on-premise, virtual or from the cloud.
The table displays Bandwidth specifications.
|
SKU
|
Switching capacity
|
Switching capacity with stacking
|
Forwarding rate
|
Forwarding rate with stacking
|
|
C9300L-24T-4G
|
56 Gbps
|
376 Gbps
|
41.66 Mpps
|
279.76 Mpps
|
|
C9300L-24T-4X
|
128 Gbps
|
448 Gbps
|
95.23 Mpps
|
333.33 Mpps
|
|
C9300L-48T-4G
|
104 Gbps
|
424 Gbps
|
77.38 Mpps
|
315.48 Mpps
|
|
C9300L-48T-4X
|
176 Gbps
|
496 Gbps
|
130.95 Mpps
|
369.05 Mpps
|
|
C9300L-24P-4G
|
56 Gbps
|
376 Gbps
|
41.66 Mpps
|
279.76 Mpps
|
|
C9300L-24P-4X
|
128 Gbps
|
448 Gbps
|
95.23 Mpps
|
333.33 Mpps
|
|
C9300L-48P-4G
|
104 Gbps
|
424 Gbps
|
77.38 Mpps
|
315.48 Mpps
|
|
C9300L-48P-4X
|
176 Gbps
|
496 Gbps
|
130.95 Mpps
|
369.05 Mpps
|
|
C9300L-48PF-4G
|
104 Gbps
|
424 Gbps
|
77.38 Mpps
|
315.48 Mpps
|
|
C9300L-48PF-4X
|
176 Gbps
|
496 Gbps
|
130.95 Mpps
|
369.05 Mpps
|
|
C9300L-24UXG-4X
|
272 Gbps
|
592 Gbps
|
202.38 Mpps
|
440.47 Mpps
|
|
C9300L-24UXG-2Q
|
352 Gbps
|
672 Gbps
|
261.90 Mpps
|
500.00 Mpps
|
|
C9300L-48UXG-4X
|
392 Gbps
|
712 Gbps
|
291.66 Mpps
|
529.76 Mpps
|
|
C9300L-48UXG-2Q
|
472 Gbps
|
792 Gbps
|
351.19 Mpps
|
589.28 Mpps
|
Modular uplink models .
The table displays
C9300L Series Switch configurations.
|
Model
|
Total 10/100/1000, Multigigabit copper or SFP Fiber
|
Uplink Configuration
|
Default AC power supply
|
|||
|
Fixed uplink models
|
|
|
|
|||
|
C9300L-24T-4G
|
24 port Data
|
4x 1G fixed uplinks
|
350W AC
|
|||
|
C9300L-24T-4X
|
24 port Data
|
4x 10G/1G fixed uplinks
|
350W AC
|
|||
|
C9300L-48T-4G
|
48 port Data
|
4x 1G fixed uplinks
|
350W AC
|
|||
|
C9300L-48T-4X
|
48 port Data
|
4x 10G/1G fixed uplinks
|
350W AC
|
|||
|
C9300L-24P-4G
|
24 port PoE+
|
4x 1G fixed uplinks
|
715W AC
|
|||
|
C9300L-24P-4X
|
24 port PoE+
|
4x 10G/1G fixed uplinks
|
715W AC
|
|||
|
C9300L-48P-4G
|
48 port PoE+
|
4x 1G fixed uplinks
|
715W AC
|
|||
|
C9300L-48P-4X
|
48 port PoE+
|
4x 10G/1G fixed uplinks
|
715W AC
|
|||
|
C9300L-48PF-4G
|
48 port PoE+
|
4x 1G fixed uplinks
|
1100W AC
|
|||
|
C9300L-48PF-4X
|
48 port PoE+
|
4x 10G/1G fixed uplinks
|
1100W AC
|
|||
|
C9300L-24UXG-4X
|
24 port UPOE, 8 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M) |
4x 10G/1G fixed uplinks
|
1100W AC
|
|||
|
C9300L-24UXG-2Q
|
24 port UPOE, 8 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M) |
2x 40G fixed uplinks
|
1100W AC
|
|||
|
C9300L-48UXG-4X
|
48 port UPOE, 12 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10) |
4x 10G/1G fixed uplinks
|
1100W AC
|
|||
|
C9300L-48UXG-2Q
|
48 port UPOE, 12 port Multigigabit
(10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10M) |
2x 40G fixed uplinks
|
1100W AC
|
|||
Related products
Hubei Netstar Yiyue Technology Co., Ltd
Do you have any questions about C9300L series products?
Contact us
Chat now
or
weiss@hkbarrette.com
Models configuration and ordering table
|
Stacking accessories
|
Description
|
|
C9300L-STACK-KIT
|
Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable
|
|
STACK-T3-50CM
|
Data stack 50cm cable (default cable with C9300L Stack Kit)
|
|
STACK-T3-1M
|
Data stack 1m cable (cable option with C9300L Stack Kit)
|
|
STACK T3-3M
|
Data stack 3m cable (cable option with C9300L Stack Kit)
|
|
Power supplies
|
Description
|
|
PWR-C1-350WAC-P=
|
350WAC Platinum-rated power supply spare
|
|
PWR-C1-715WAC-P=
|
715WAC Platinum-rated power supply spare
|
|
PWR-C1-1100WAC-P=
|
1100WAC Platinum-rated power supply spare
|
|
PWR-C1-715WAC-UP
|
Upgrade to 715WAC Platinum-rated power supply
|
|
PWR-C1-1100WAC-UP
|
Upgrade to 1100WAC Platinum-rated power supply
|
|
PWR-C1-1900WAC-UP
|
Upgrade to 1900WAC Platinum-rated power supply
|
PoE+ Power with primary and secondary power supplies
.
C9300L Series switches support dual redundant power supplies. The switches ship with one power supply by default, and the second power supply can be purchased when the switch is ordered or at a later time. If only one power supply is installed, itshould always be in power supply bay #1. The switches also ship with three field-replaceable fans. Power Supplies are common across the C9300 Series.
|
Model
|
Primary power supply
|
Default or Upgrade
|
Available PoE power
|
With 350W Secondary PS
|
With 715W Secondary PS
|
With 1100W Secondary PS
|
|
C9300L-24T-4G
|
PWR-C1-350WAC-P
|
Default
|
No PoE
|
No PoE
|
No PoE
|
No PoE
|
|
C9300L-24T-4X
|
PWR-C1-350WAC-P
|
Default
|
No PoE
|
No PoE
|
No PoE
|
No PoE
|
|
C9300L-48T-4G
|
PWR-C1-350WAC-P
|
Default
|
No PoE
|
No PoE
|
No PoE
|
No PoE
|
|
C9300L-48T-4X
|
PWR-C1-350WAC-P
|
Default
|
No PoE
|
No PoE
|
No PoE
|
No PoE
|
|
C9300L-24P-4G
|
PWR-C1-715WAC-P
|
Default
|
505W
|
720W*
|
720W*
|
720W*
|
|
C9300L-24P-4X
|
PWR-C1-715WAC-P
|
Default
|
505W
|
720W*
|
720W*
|
720W*
|
|
C9300L-48P-4G
|
PWR-C1-715WAC-P
|
Default
|
505W
|
855W
|
1220W
|
1440W*
|
|
C9300L-48P-4X
|
PWR-C1-715WAC-P
|
Default
|
505W
|
855W
|
1220W
|
1440W*
|
|
C9300L-48PF-4G
|
PWR-C1-1100WAC-P
|
Default
|
890W
|
1240W
|
1440W
|
1440W*
|
|
C9300L-48PF-4X
|
PWR-C1-1100WAC-P
|
Default
|
890W
|
1240W
|
1440W
|
1440W*
|
|
C9300L-24UXG-4X
|
PWR-C1-1100WAC-P
|
Default
|
880W
|
1230W
|
1440W
|
1440W*
|
|
C9300L-24UXG-2Q
|
PWR-C1-1100WAC-P
|
Default
|
722W
|
1072W
|
1440W
|
1440W*
|
|
C9300L-48UXG-4X
|
PWR-C1-1100WAC-P
|
Default
|
675W
|
1025W
|
1390W
|
1775W
|
|
C9300L-48UXG-2Q
|
PWR-C1-1100WAC-P
|
Default
|
675W
|
1025W
|
1390W
|
1775W
|
C9300L
Switches Models
C9300L Models Ordering information
|
Product number
|
Product description
|
|
C9300L-24T-4G-E
|
C9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials
|
|
C9300L-24T-4G-A
|
C9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Advantage
|
|
C9300L-24P-4G-E
|
C9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials
|
|
C9300L-24P-4G-A
|
C9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Advantage
|
|
C9300L-48T-4G-E
|
C9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials
|
|
C9300L-48T-4G-A
|
C9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Advantage
|
|
C9300L-48P-4G-E
|
C9300 48-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials
|
|
C9300L-48P-4G-A
|
C9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+ Network Advantage
|
|
C9300L-48PF-4G-E
|
C9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+ Network Essentials
|
|
C9300L-48PF-4G-A
|
C9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+ Network Advantage
|
|
C9300L-24T-4X-E
|
C9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Essentials
|
|
C9300L-24T-4X-A
|
C9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Advantage
|
|
C9300L-24P-4X-E
|
C9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Essentials
|
|
C9300L-24P-4X-A
|
C9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Advantage
|
|
C9300L-24UXG-4X-E
|
C9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Essentials
|
|
C9300L-24UXG-4X-A
|
C9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Advantage
|
|
C9300L-48T-4X-E
|
C9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Essentials
|
|
C9300L-48T-4X-A
|
C9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Advantage
|
|
C9300L-48P-4X-E
|
C9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Essentials
|
|
C9300L-48P-4X-A
|
C9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Advantage
|
|
C9300L-48PF-4X-E
|
C9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Essentials
|
|
C9300L-48PF-4X-A
|
C9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Advantage
|
|
C9300L-48UXG-4X-E
|
C9300 48-port fixed uplinks UPOE, 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper, 4x 10G uplinks, Network Essentials
|
|
C9300L-48UXG-4X-A
|
C9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Network Advantage
|
|
C9300L-24UXG-2Q-E
|
C9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials
|
|
C9300L-24UXG-2Q-A
|
C9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage
|
|
C9300L-48UXG-2Q-E
|
C9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials
|
|
C9300L-48UXG-2Q-A
|
C9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage
|
Supported SFP/SFP+ modules. view more >>
C9300L Series switches support a wide range of optics. Because the list of supported optics is updated on a regular basis,So we only showed a portion of the optical module models.
|
Part number
|
Description
|
|
GLC-SX-MMD
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
|
|
GLC-SX-MMD=
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM spare
|
|
GLC-LH-SMD
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
|
|
GLC-LH-SMD=
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM spare
|
|
GLC-LX-SM-RGD=
|
1000Mbps Single Mode Rugged SFP spare
|
|
GLC-TE
|
1000BASE-T SFP transceiver module for Category 5 copper wire
|
|
GLC-TE=
|
1000BASE-T SFP transceiver module for Category 5 copper wire spare
|
|
GLC-EX-SMD=
|
1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM spare
|
|
GLC-ZX-SMD=
|
1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM spare
|
|
SFP-10G-SR
|
10GBASE-SR SFP Module
|
|
SFP-10G-SR=
|
10GBASE-SR SFP Module spare
|
|
SFP-10G-SR-S
|
10GBASE-SR SFP Module, Enterprise-Class
|
|
SFP-10G-SR-S=
|
10GBASE-SR SFP Module, Enterprise-Class spare
|
|
SFP-10G-LR
|
10GBASE-LR SFP Module
|
|
SFP-10G-LR=
|
10GBASE-LR SFP Module spare
|
|
SFP-10G-LR-S
|
10GBASE-LR SFP Module, Enterprise-Class
|
|
SFP-10G-LR-S=
|
10GBASE-LR SFP Module, Enterprise-Class spare
|
|
SFP-10G-ER
|
10GBASE-ER SFP Module
|
|
SFP-10G-ER=
|
10GBASE-ER SFP Module spare
|
|
SFP-10G-ZR
|
10GBASE-ZR SFP10G Module for SMF
|
|
SFP-10G-ZR=
|
10GBASE-ZR SFP10G Module for SMF spare
|
|
SFP-25G-SR-S
|
25GBASE-SR SFP Module
|
|
SFP-25G-SR-S=
|
25GBASE-SR SFP Module spare
|
|
QSFP-40G-CSR4
|
QSFP 4x10GBASE-SR Transceiver Module, MPO, 300M
|
|
QSFP-40G-CSR4=
|
QSFP 4x10GBASE-SR Transceiver Module, MPO, 300M spare
|
|
QSFP-40G-LR4-S
|
QSFP 40GBASE-LR4 Trnscvr Mod, LC, 10km, Enterprise-Class
|
|
QSFP-40G-LR4-S=
|
QSFP 40GBASE-LR4 Trnscvr Mod, LC, 10km, Enterprise-Class spare
|
|
QSFP-40G-SR-BD
|
QSFP40G BiDi Short-reach Transceiver
|
|
QSFP-40G-SR-BD=
|
QSFP40G BiDi Short-reach Transceiver spare
|
|
QSFP-40G-SR4
|
40GBASE-SR4 QSFP Transceiver Module with MPO Connector
|
|
QSFP-40G-SR4-S
|
40GBASE-SR4 QSFP Trnscvr Module, MPO Conn, Enterprise-Class spare
|
|
QSFP-40G-SR4-S=
|
40GBASE-SR4 QSFP Trnscvr Module, MPO Conn, Enterprise-Class
|
|
QSFP-40G-SR4=
|
40GBASE-SR4 QSFP Transceiver Module with MPO Connector spare
|
|
QSFP-100G-CWDM4-S
|
100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF
|
|
QSFP-100G-CWDM4-S=
|
100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF
|
|
QSFP-100G-LR4-S
|
100GBASE LR4 QSFP Transceiver, LC, 10km over SMF
|
|
QSFP-100G-LR4-S=
|
100GBASE LR4 QSFP Transceiver, LC, 10km over SMF
|
|
QSFP-100G-PSM4-S
|
100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF
|
|
QSFP-100G-PSM4-S=
|
100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF
|
|
QSFP-100G-SM-SR
|
100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
|
|
QSFP-100G-SM-SR=
|
100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
|
|
QSFP-100G-SR4-S
|
100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF
|
|
QSFP-100G-SR4-S=
|
100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF
|
Team Introduction
Hubei
Netstar
Yiyue Technology Co., Ltd
Team Profile
Our company's team is not only at the forefront of the industry in technology, but also leading in price and product quality. We pay more attention to expressing the products that our customers need clearly and accurately. Most of our teams have undergone professional training, and we have researched various network construction related to machinery, ICT, electronics, system integration, etc. We can easily understand the customer's ideas, so we can better express their intentions. We have our own professional pre-sales team, CCIE engineers, a comprehensive after-sales team, and a management team that updates inventory in a timely manner. We continuously innovate and improve pre-sales communication, CCIE technology docking, patient product explanation customer service, and professional after-sales operation and maintenance to continuously meet the needs of customers for digital experience services.
Hubei
Netstar
Yiyue Technology Co., Ltd
Hot Searches
