Quick Details
-
Blade Length (mm):
-
2600 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
Raymax
-
Power (kW):
-
11 kW
-
Weight (KG):
-
5000 KG
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
44550X1850X2002
-
Name:
-

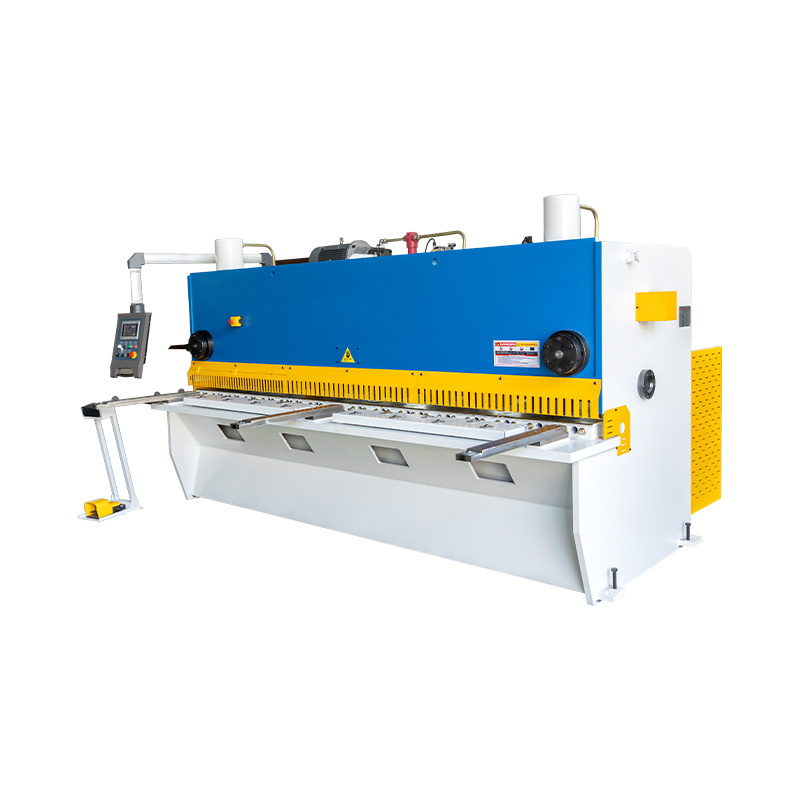

Guillotining Shear Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Keyword:
-
Metal Steel Cnc Cutting Machine
-
Control system:
-
P40T
-
Color:
-
Customer Requirement
-
Application:
-
Industrial Metal Cutting
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Main Motor:
-
Siemens Germany
-
Cutting thickness:
-
1-8mm
-
Controller:
-
E21S/E200-S/DAC310/DAC360
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
8 mm
-
Shearing Angle:
-
0.5-1.5
-
Blade Length (mm):
-
2600 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
Raymax
-
Power (kW):
-
11 kW
-
Weight (KG):
-
5000 KG
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
44550X1850X2002
-
Name:
-
Guillotining Shear Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Keyword:
-
Metal Steel Cnc Cutting Machine
-
Control system:
-
P40T
-
Color:
-
Customer Requirement
-
Application:
-
Industrial Metal Cutting
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Main Motor:
-
Siemens Germany
-
Cutting thickness:
-
1-8mm
-
Controller:
-
E21S/E200-S/DAC310/DAC360
Feature
1.Totally EU streamlined design, Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany.
3.The RAYMAX Hydraulic Guillotine is a Variable Rake Action machine which is produced in a variety of cutting lengths and capacity options.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by ELGO P40T with Servo motor.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety to CE regulation
|
Model
|
Cutting thickness (mm)
|
Cutting length (mm)
|
Cutting Angel (°)
|
Stopper Adjust Range (mm)
|
Stroke time (min-1)
|
Motor (KW)
|
Dimension(mm)
|
Weight(t)
|
|
QC11Y-6X2500
|
6
|
2500
|
0.5~1.5
|
500
|
20
|
7.5
|
2850X1800X1950
|
4
|
|
QC11Y-6X3200
|
6
|
3200
|
0.5~1.5
|
500
|
16
|
7.5
|
3450X1850X2000
|
5.2
|
|
QC11Y-6X4000
|
6
|
4000
|
0.5~1.5
|
500
|
12
|
7.5
|
4550X1850X2000
|
7
|
|
QC11Y-6X6000
|
6
|
6000
|
0.5~1.5
|
500
|
10
|
15
|
6940X2200X2450
|
11.5
|
|
QC11Y-8X2500
|
8
|
2500
|
0.5~1.5
|
500
|
18
|
11
|
2860X1850X2150
|
5
|
|
QC11Y-8X3200
|
8
|
3200
|
0.5~1.5
|
500
|
14
|
11
|
3460X1850X2150
|
6.2
|
|
QC11Y-8X4000
|
8
|
4000
|
0.5~2
|
500
|
12
|
11
|
4550X1750X1950
|
8
|
|
QC11Y-8X6000
|
8
|
6000
|
0.5~2
|
500
|
10
|
15
|
6940X2250X2550
|
14
|
|
QC11Y-10X2500
|
10
|
2500
|
0.5~2
|
500
|
15
|
15
|
2950X1850X2050
|
7
|
|
QC11Y-10X3200
|
10
|
3200
|
0.5~2
|
500
|
13
|
15
|
3650X1850X2050
|
8.3
|
|
QC11Y-10X4000
|
10
|
4000
|
0.5~2
|
500
|
12
|
18.5
|
4550X2050X2150
|
9
|
|
QC11Y-10X6000
|
10
|
6000
|
0.5~2
|
600
|
10
|
18.5
|
6850X2550X2650
|
17
|
|
QC11Y-13X2500
|
13
|
2500
|
0.5~2
|
600
|
14
|
15
|
3050X2050X2150
|
8
|
|
QC11Y-13X3200
|
13
|
3200
|
0.5~2
|
600
|
13
|
15
|
3650X2050X2150
|
9
|
|
QC11Y-13X4000
|
13
|
4000
|
0.5~2
|
600
|
10
|
18.5
|
4550X2050X2150
|
10
|
|
QC11Y-13X6000
|
13
|
6000
|
0.5~2
|
600
|
8
|
22
|
6850X2550X2650
|
16
|
|
QC11Y-16X2500
|
16
|
2500
|
0.5~2
|
600
|
12
|
18.5
|
2850X2150X2350
|
9
|
|
QC11Y-16X3200
|
16
|
3200
|
0.5~2
|
600
|
10
|
18.5
|
3650X2150X2350
|
10.6
|
|
QC11Y-16X4000
|
16
|
4000
|
0.5~2
|
600
|
9
|
18.5
|
4350X2250X2450
|
14
|
|
QC11Y-16X6000
|
16
|
6000
|
0.5~2
|
600
|
8
|
30
|
6850X2550X2750
|
25
|
|
QC11Y-20X3200
|
20
|
3200
|
0.5~3
|
600
|
10
|
30
|
3550X2350X2550
|
18
|
|
QC11Y-20X4000
|
20
|
4000
|
0.5~3
|
600
|
8
|
30
|
4540X2500X2950
|
22
|
|
QC11Y-20X6000
|
20
|
6000
|
0.5~3
|
600
|
8
|
30
|
6850X2650X2950
|
28
|
