Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Daheng
-
Dimension(L*W*H):
-
1500*1700*2400mm
-
Weight:
-
260 KG
-
Product name:
-
Robot Palletizer
-
Usage:
-
Industrial Palletizing Machine
-
Function:
-
Electric Robotic Palletizer
-
Suitable for:
-
All kinds of packing line
-
Advantage:
-
Save Labor
-
Speed:
-
Adjustable
-
Packing material:
-
Carton Case
-
Related Machines:
-
Pallet Conveyors
-
Control Mode:
-
Robotics Teaching System
-
Power supply:
-
AC380V/220V 50/60HZ 3Phase 8KW (Customized)
Quick Details
-
Application:
-
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Daheng
-
Dimension(L*W*H):
-
1500*1700*2400mm
-
Weight:
-
260 KG
-
Product name:
-
Robot Palletizer
-
Usage:
-
Industrial Palletizing Machine
-
Function:
-
Electric Robotic Palletizer
-
Suitable for:
-
All kinds of packing line
-
Advantage:
-
Save Labor
-
Speed:
-
Adjustable
-
Packing material:
-
Carton Case
-
Related Machines:
-
Pallet Conveyors
-
Control Mode:
-
Robotics Teaching System
-
Power supply:
-
AC380V/220V 50/60HZ 3Phase 8KW (Customized)
Product Overview

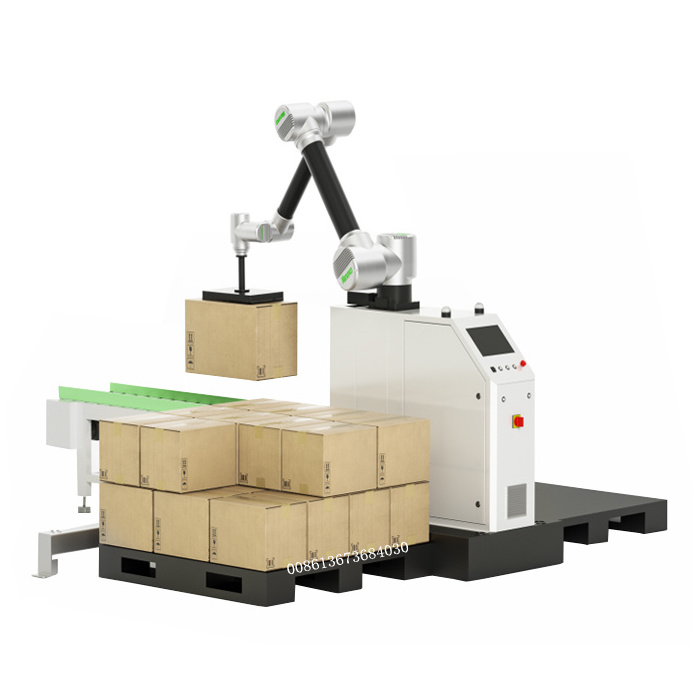

Automatic case palletizer robot
This automatic palletizer machine adopts PLC touch screen and intelligent control system, easy to operate and maintain. It can put the bags on the pallet in a fixed order and stack them automatically. The multilayer of palletzing enables the fork moves them into warehouse.
At the same time, it can cooperate with the pallet machine, stacker area conveyor line, feed conveyor line, etc. (optional) to form a set of stacker system. The stacker will stack the cartons on the pallet according to a certain arrangement for automatic stacking, which can be stacked in multiple layers and then pushed out, so as to facilitate the transportation of forklift to the warehouse for storage. The equipment is controlled by motion controller and teaching pendant to realize intelligent operation and management, which is simple and easy to master. It can greatly reduce labor personnel and labor intensity.
Pictures of palletizer robot
Technical data of palletizer robot
|
Model
|
DHMD-12
|
DHMD-16
|
DHMD-20
|
DHMD-25
|
|
Loading weight
|
12kg
|
16kg
|
20kg
|
25kg
|
|
Height
|
1700/2400mm
|
1900mm
|
1600mm
|
1300mm
|
|
Stacking speed
|
6-8case/min
|
5-8case/min
|
5-8case/min
|
5-8case/min
|
|
Positioning accuracy
|
±0.04mm
|
±0.04mm
|
±0.04mm
|
±0.04mm
|
|
Communication mode
|
EtherCAT
|
EtherCAT
|
EtherCAT
|
EtherCAT
|
|
Ip grade
|
Ip54
|
Ip54
|
Ip54
|
Ip54
|
|
Temperature range
|
0-55℃
|
0-55℃
|
0-55℃
|
0-55℃
|
|
Power
|
2500W
|
3000W
|
3300W
|
3300W
|
|
Voltage
|
220V
|
220V
|
220V
|
220V
|
|
Machine weight
|
≈300kg
|
≈300kg
|
≈300kg
|
≈300kg
|
|
Area covered
|
1505*1716mm
|
1505*1716mm
|
1505*1716mm
|
1505*1716mm
|
Feature of palletizer robot
1.Simple structure ,easy in installation and maintation.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3.When there is some change about the production line, just need to modify the software program.
4.Running in a high automatization and intellectualization,no pollution
5.Robert Palletizer takes less space and more flexiable ,accurate compared to the traditional palletizer.
6.Reducing a lot of labour and labour cost, more productive.
Packing and Delivery:
Based on customer's requirement. Whole container generally.
1.Spare parts are used for fastening the machine on the trailer or inside the container.
2.Cork wood are placed in front or behind the machine to protect it.
3.Plastic film is covered on the machine as protection for the color .
2.Cork wood are placed in front or behind the machine to protect it.
3.Plastic film is covered on the machine as protection for the color .
Transportation methods:sea transport or railway transportation are usually suitable ,
sometimes road transportation is ok, if your country is near by China mainland.
sometimes road transportation is ok, if your country is near by China mainland.
