Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS200
-
Product Name:
-
float level switch
-
Medium temperature:
-
- 20 ~ 150 ℃
-
Range:
-
L: 300~6000mm
-
output:
-
Relay alams
-
Accuracy:
-
500~1000mm≤±1.5%
-
Power supply:
-
24VDC (12~36V DC)
-
Medium viscosity:
-
≤ .015 PaS
-
Medium density:
-
≥ 0.65g/cm-3
-
Load Resistance:
-
0~750Ω>1000≤±1.0%
-
Keywords:
-
float level switch
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS200
-
Product Name:
-
float level switch
-
Medium temperature:
-
- 20 ~ 150 ℃
-
Range:
-
L: 300~6000mm
-
output:
-
Relay alams
-
Accuracy:
-
500~1000mm≤±1.5%
-
Power supply:
-
24VDC (12~36V DC)
-
Medium viscosity:
-
≤ .015 PaS
-
Medium density:
-
≥ 0.65g/cm-3
-
Load Resistance:
-
0~750Ω>1000≤±1.0%
-
Keywords:
-
float level switch
OVERVIEW

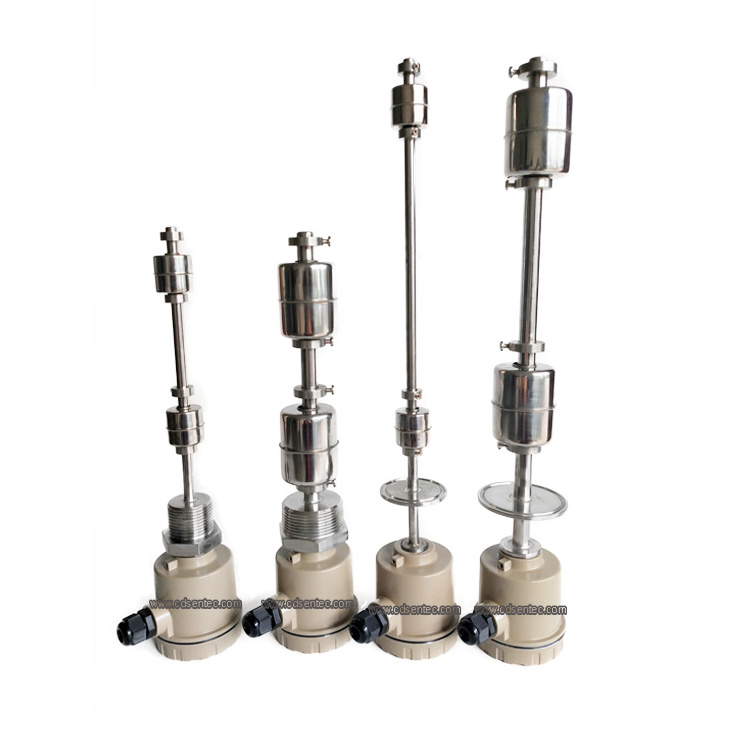

SFLS200 series float level switch is mainly composed of three parts: magnetic float, sensor and transmitter. 304 stainless steel,PVC, PTFE and other materials are used as protection pipes and installation fixings for the floating ball liquid level meter; for highly corrosive media, polytetrafluoroethylene is sintered on the surface of contact medium metal protection pipes and floating balls to ensure that the liquid level meter is not corroded. According to the user's requirements, the magnetic sensor is preset, and the floating ball changes the preset state of the magnetic sensor along with the up and down movement of the liquid level to send the on-off signal, so as to realize the monitoring of the liquid level.
|
voltage
|
24VDC (12~36V DC)
|
|
Medium
|
density: ≥ 0.5g/cm3, viscosity ≤ 0.07pas
|
|
Range
|
300~6000mm
|
|
Accuracy
|
± 1.5% (H ≥ 1000mm), ± 2.5% (H < 1000mm)
|
|
Medium temperature
|
- 20 ~ 150 ℃
|
|
Output signal
|
Relay alams
|
|
Output load
|
90 ~ 1K Ω, 0 ~ 500 Ω
|
|
Connecting flange
|
DN100 PN1.6 ball φ 90; DN80 PN0.6 ball φ 76
|
|
Working pressure
|
≤1.6MPa
|
|
Indication
|
LED
|
|
Sensor material
|
Stainless steel 316
|
|
Shell material
|
Aluminum alloy
|
|
Explosion proof
|
flameproof type: Exd II BT4-6; Intrinsic safety type: Exia II CT4-6
|
MAIN FEATURES
* It can be used for multi-point control, and the control switch position can be customized according to the user's needs
* Using magnetic spring switch does not need power supply, contact life can reach 2 million times
* Comparison of multiple switch control points with other types of liquid level switch
* There are PVDF, PP, PVC plastic materials and SUS304, SUS316 metal materials, because acid and alkali, high temperature environment can be used
* The magnetic spring switch is completely separated from the conductor from the liquid. It can also be used in high temperature and high voltage equipment
* Simple structure, stable and reliable performance, convenient installation
* It can be used for multi-point control, and the control switch position can be customized according to the user's needs
* Using magnetic spring switch does not need power supply, contact life can reach 2 million times
* Comparison of multiple switch control points with other types of liquid level switch
* There are PVDF, PP, PVC plastic materials and SUS304, SUS316 metal materials, because acid and alkali, high temperature environment can be used
* The magnetic spring switch is completely separated from the conductor from the liquid. It can also be used in high temperature and high voltage equipment
* Simple structure, stable and reliable performance, convenient installation
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Indicator Hot Tank Water Sensor Liquid Float Float less Level Switch Controller Relay
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Indicator Hot Tank Water Sensor Liquid Float Float less Level Switch Controller Relay
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Indicator Hot Tank Water Sensor Liquid Float Float less Level Switch Controller Relay
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Indicator Hot Tank Water Sensor Liquid Float Float less Level Switch Controller Relay
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Indicator Hot Tank Water Sensor Liquid Float Float less Level Switch Controller Relay
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Indicator Hot Tank Water Sensor Liquid Float Float less Level Switch Controller Relay
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
