WK10-08 backhoe wheel loaders overall frame, the whole machine stability is good, more suitable for digging work. The excavating device is of lateral displacement type, which has high strength and good structural stability. The working device of the loading end adopts an eight-link mechanism.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5300x1300x2500mm
-
Machine Weight:
-
2250 kg
-
Bucket capacity:
-
0.3cbm
-
Marketing Type:
-
New product 2023
-
Rated loading:
-
800kg
-
Engine Model:
-
3TNV88-G1
-
Wheelbase:
-
1780mm
-
Max. dump height:
-
2286mm
-
Dinging depth:
-
94mm
-
Min. turning radius:
-
3000mm
-
Dumping angle:
-
45
-
Max. Digging depth:
-
2116mm
-
Digging bucket capacity:
-
0.17cbm
Quick Details
-
Engine Brand:
-
YANMAR
-
Power:
-
19
-
Brand Name:
-
WALKER
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5300x1300x2500mm
-
Machine Weight:
-
2250 kg
-
Bucket capacity:
-
0.3cbm
-
Marketing Type:
-
New product 2023
-
Rated loading:
-
800kg
-
Engine Model:
-
3TNV88-G1
-
Wheelbase:
-
1780mm
-
Max. dump height:
-
2286mm
-
Dinging depth:
-
94mm
-
Min. turning radius:
-
3000mm
-
Dumping angle:
-
45
-
Max. Digging depth:
-
2116mm
-
Digging bucket capacity:
-
0.17cbm
Products Description

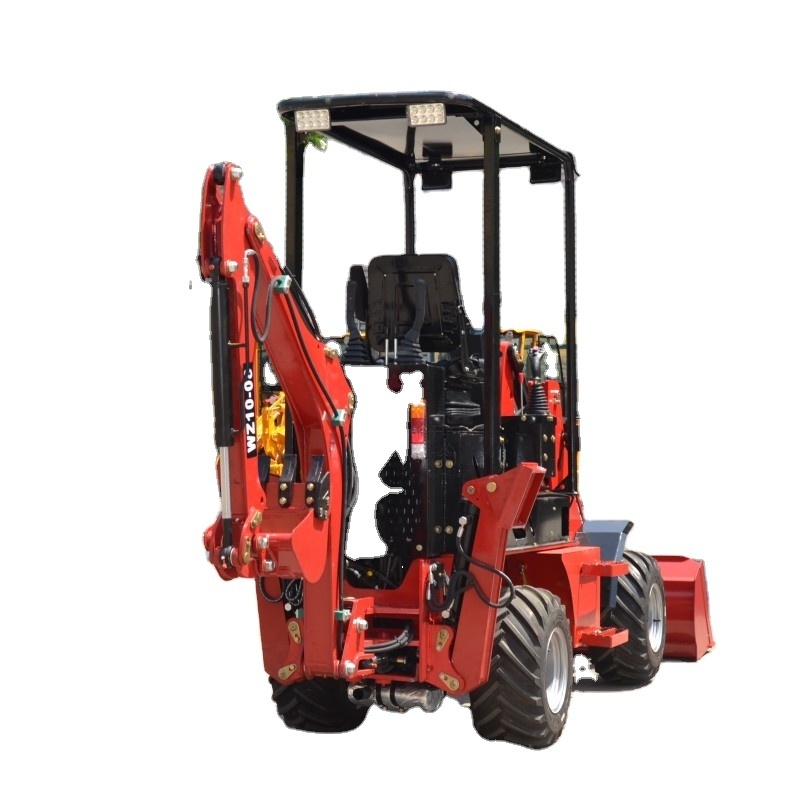

WZ10-08 Mini backhoe loader
Product Photograph
Product Paramenters
|
Model
|
WZ10-08
|
|
Rated loading
|
800kg
|
|
Operation weight
|
2250kg
|
|
Max. Shovel width
|
1060mm
|
|
Bucket capacity
|
0.3cbm
|
|
Max. grade ability
|
30°
|
|
Min. ground clearance
|
200mm
|
|
Max. dump height
|
2286mm
|
|
Max.lifting height
|
3536mm
|
|
Overall dimension (L*W*H)
|
5300x1300x2500mm
|
|
Min. turning radius
|
3000mm
|
|
Max. Digging depth
|
2116mm
|
|
Max. Digging height
|
2927mm
|
|
Max. Digging Radius
|
3000mm
|
|
Digging bucket capacity
|
0.17cbm
|
|
Engine Model
|
3TNV88-G1
|
|
Engine Type
|
Vertical, in-line, water cooling, 3-cylinder
|
|
Engine Rated power
|
19KW
|
|
Optional engine
|
Kubota D1105/ Perkins 403J-11(Eu5 and EPA4 stage)
XINCHAI 18.5KW Eu5 stage |
|
Type
|
Hydrostatic
|
|
Drive type
|
Independent wheel motors
|
|
Pump type
|
Gear
|
|
Pump maximum flow
|
42L/min
|
|
System Voltage
|
12V
|
|
Battery capacity
|
60Ah
|
Optional accessories
Workshop display
Product packaging
