Quick Details
-
Brand Name:
-
AOCA
-
Model Number:
-
AD-55
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
3.5A 0.23A
-
Product Name:
-
220v power supply
-
Application:
-
CCTV Camera
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Feature:
-
Load Burn-in Test
-
Output:
-
13.8V mode power supply
-
Usage:
-
Industrial Equipment
-
Power:
-
55w dc power supply
-
Keyword:
-
cctv power supply,onstant voltage power supply,24v-12v power supply
-
Packing:
-
Brown Box
-
Input:
-
AC 100V~240V
Quick Details
-
Input Voltage:
-
230vac dc power supply
-
Output Voltage:
-
13.8V 13.4V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOCA
-
Model Number:
-
AD-55
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
3.5A 0.23A
-
Product Name:
-
220v power supply
-
Application:
-
CCTV Camera
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Feature:
-
Load Burn-in Test
-
Output:
-
13.8V mode power supply
-
Usage:
-
Industrial Equipment
-
Power:
-
55w dc power supply
-
Keyword:
-
cctv power supply,onstant voltage power supply,24v-12v power supply
-
Packing:
-
Brown Box
-
Input:
-
AC 100V~240V
Product Description
|

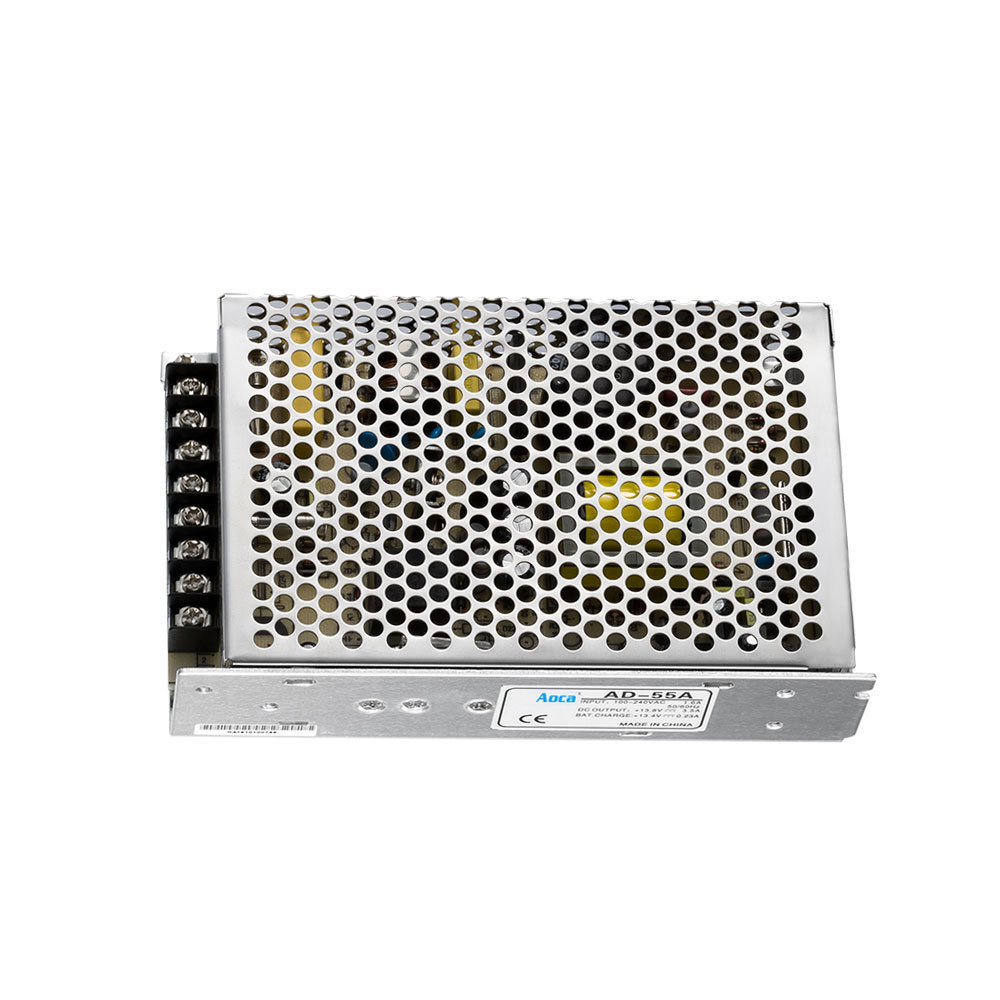

MODEL
|
AD-55A
|
AD-55B
|
|||
|
OUTPUT
|
DC VOLTAGE SET AT
|
13.8V
|
13.4V
|
27.6V
|
26.5V
|
|
RATED CURRENT
|
3.5A
|
0.23A
|
1.8A
|
0.16A
|
|
|
CURRENT RANGE
|
0~4A
|
*
|
0~2A
|
*
|
|
|
RATED POWER
|
51.38W
|
53.92W
|
|||
|
RIPPLE & NOISE
|
100mVp-p
|
*
|
100mVp-p
|
*
|
|
|
VOLTAGE ADJ.RANGE
|
12 ~ 14.5V
|
24 ~ 29V
|
|||
|
VOLTAGE TOLERANCE
|
±1.0%
|
*
|
±1.0%
|
*
|
|
|
LINE REGULATION
|
±0.5%
|
*
|
±0.5%
|
*
|
|
|
LOAD REGULATION
|
±0.5%
|
*
|
±0.5%
|
*
|
|
|
SETUP, RISE, TIME
|
800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
|
||||
|
MODEL
|
AD-55A
|
AD-55B
|
|||
|
INPUT |
VOLTAGE RANGE
|
88 ~ 264VAC 124 ~ 370VDC
|
|||
|
FREQUENCYRANGE
|
47~63Hz smps battery charger
|
||||
|
EFFICIENCY
|
71%
|
74%
|
|||
|
AC CURRENT
|
1.6A /115VAC 1A/230VAC
|
||||
|
INRUSH CURRENT
|
COLD START 20A/115VAC 40A/230VAC
|
||||
|
MODEL
|
AD-55A
|
AD-55B
|
|
|
PROTECTION
|
OVERLOAD
|
105 ~ 150% rated output power
|
|
|
AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed /UPS Mode : Protected by internal fuse
|
|||
|
OVER VOLTAGE
|
15.87 ~ 18.63V
|
31.74 ~ 37.26V
|
|
|
Hiccup mode, recovers automatically after fault condition is removed
|
|||
|
BATTERY LOW
|
9.5 ~ 11V
|
20 ~ 22V
|
|
|
MODEL
|
AD-55A
|
AD-55B
|
|||
|
ENVIRONMENT |
WORKINGTEMP.
|
-10 ~ +60°C (Refer to "Derating Curve")
|
|||
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
||||
|
STORAGETEMP., HUMIDITY
|
-20 ~ +85℃, 10 ~ 95% RH
|
||||
|
TEMP
COEFFICIENT
|
±0.03%/℃(0 ~ 50℃)
|
||||
|
VIBRATION
|
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
|
||||
|
SAFETY &
EMC |
SAFETY STANDARDS
|
UL60950-1, CSA22.2, EN60950-1 approved
|
|||
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC meanwell power supply
|
||||
|
ISOLATION RESISTANCE
|
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
|
||||
|
EMC EMISSION
|
Compliance to EN55014-1 class B, FCC part 15 Class B
|
||||
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
|
||||
