Quick Details
-
Interface Standard:
-
IEC 62196-2 , Type 2 Socket or Plug
-
Output Current:
-
32A Current adjustable
-
Input Voltage:
-
230Vac±10%
-
Application:
-
Electric Vehicle Charging Station
-
Cable Length:
-
4.5m
-
Warranty:
-
2 Years
-
Certificate:
-
CE , UKCA
-
Output voltage:
-
230Vac±10%&400Vac±10%
-
Rated Current:
-
32A
-
Type:
-
Home EV Charger
-
IP Grade:
-
IP65
-
RCD:
-
TypeA + DC 6mA
-
Weight:
-
2.5kg
Quick Details
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
eGO 100E
-
Brand Name:
-
GoPRO
-
Interface Standard:
-
IEC 62196-2 , Type 2 Socket or Plug
-
Output Current:
-
32A Current adjustable
-
Input Voltage:
-
230Vac±10%
-
Application:
-
Electric Vehicle Charging Station
-
Cable Length:
-
4.5m
-
Warranty:
-
2 Years
-
Certificate:
-
CE , UKCA
-
Output voltage:
-
230Vac±10%&400Vac±10%
-
Rated Current:
-
32A
-
Type:
-
Home EV Charger
-
IP Grade:
-
IP65
-
RCD:
-
TypeA + DC 6mA
-
Weight:
-
2.5kg

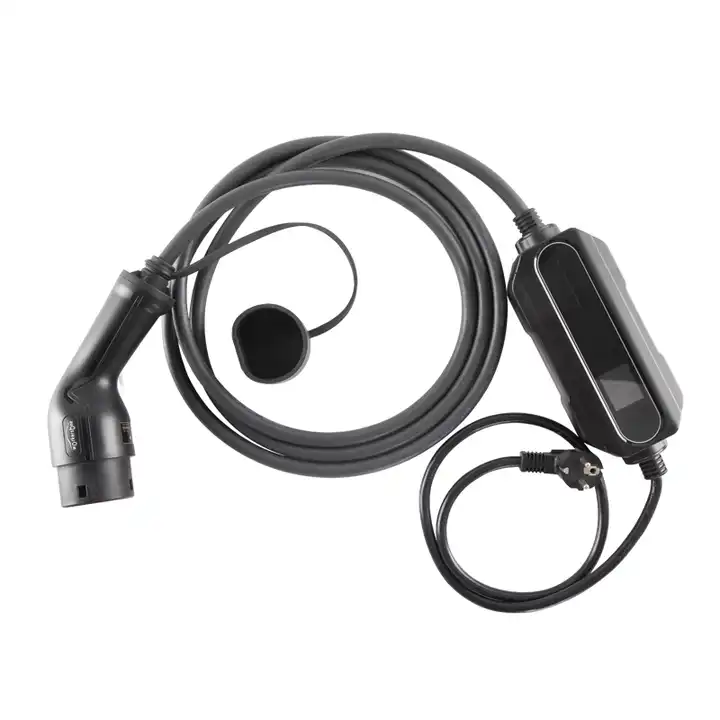

Details Images
Product Paramenters
|
Regional Standard
|
|
|
|
|
Regional Standard
|
EU Standard
|
NA Standard
|
|
|
Model Name
|
eGo 100A
|
eGo
100A
|
|
|
Voltage
|
230Vac±10%
|
208–240Vac
|
|
|
|
(Single phase)
|
Single phase
|
|
|
|
L/N/PE
|
L/N/PE
|
|
|
Power / Amperage
|
7kW / 32A Current adjustable
|
7kW / 32A Current adjustable
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency
|
50-60Hz
|
50-60Hz
|
|
|
Function
|
|
|
|
|
Display
|
N/A
|
N/A
|
|
|
User Authentication
|
UL
|
N/A
|
|
|
Network
|
N/A
|
N/A
|
|
|
Connectivity
|
N/A
|
N/A
|
|
|
Protection & Standard
|
|
|
|
|
Certificate
|
CE 、UKCA
|
UL
|
|
|
Charging Interface
|
IEC 62196-2 , Type 2 Socket or Plug
|
SAE J1772 , Type 1 Plug
|
|
|
Safety Compliance
|
IEC 61851-1 ,IEC 61851-21-2
|
UL2594 , UL2231-1/-2
|
|
|
RCD
|
30mA AC
|
CCID 20
|
|
|
Multiple Protection
|
Leakage current protection; Impact resistance, Over current protection, Ground protection, Surge protection, O/U voltage
protection, O/U frequency protection, Over temp protection |
UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
|
|
|
Environmental
|
|
|
|
|
Operating Temperature
|
-30°C ~ 50°C
|
-22°F to 122°F
|
|
|
Indoor / Outdoor
|
IP65
|
IK08, Type 3 enclosure
|
|
|
Relative Humidity
|
Up to 95% non-condensing
|
Up to 95% non-condensing
|
|
|
Mechanical
|
|
|
|
|
Dimension (WxDxH)
|
-
|
-
|
|
|
Weight
|
2.5kg
|
2.5kg
|
|
|
Cable Length
|
4.5m
|
25ft
|
|
Why Choose Us
Exhibition
FAQ
Q1: The main difference between AC Charger and DC Charger?
A1: The difference between AC charging and DC charging is the location where the AC power gets converted; inside or outside the car.Unlike AC chargers, a DC charger has the converter inside the charger itself. That means it can feed power directly to the car's battery and doesn't need the on-board charger to convert it.
A1: The difference between AC charging and DC charging is the location where the AC power gets converted; inside or outside the car.Unlike AC chargers, a DC charger has the converter inside the charger itself. That means it can feed power directly to the car's battery and doesn't need the on-board charger to convert it.
Q2: The differences of global DC fast charging standards?
A2: CCS-1: DC fast charging standard for North America.
CCS-2: DC fast charging standard for Europe.
CHAdeMO: DC fast charging standard for Japan.
GB/T: DC fast charging standard for China.
Q3: Are you a factory or a trading company?
A3: We are a manufacturer, welcome to visit our factory at any time!
A3: We are a manufacturer, welcome to visit our factory at any time!
Q4: Can I customize the box and packing way?
A4: We can provide related services under the condition of meeting the MOQ.
A4: We can provide related services under the condition of meeting the MOQ.
Q5: How about your delivery time?
A5: Generally, it will take 3 to 30 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q6: Does the product meet local customs clearance standards?
A6: Our products have been sold to all over the world in large quantities, and all products have passed the relevant certifications recognized by the local government. In addition, we provide standardized product information and packaging to ensure full compliance with local customs clearance requirements. If you have any questions about customs clearance, please contact us intime, we can provide timely and effective assistance.
A6: Our products have been sold to all over the world in large quantities, and all products have passed the relevant certifications recognized by the local government. In addition, we provide standardized product information and packaging to ensure full compliance with local customs clearance requirements. If you have any questions about customs clearance, please contact us intime, we can provide timely and effective assistance.
