Quick Details
-
Weight (KG):
-
400
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BURGEN
-
Dimension(L*W*H):
-
L)970*(W)680*(H)1950mm
-
Product Name:
-
Paste Ketchup Mayonnaise Tomato Sauce Sachet Packing Packaging Machine
-
Main Function:
-
Weighing Filling Sealing
-
Packing Speed:
-
Max.70 Bags/Min
-
Bags Length:
-
Max.180mm
-
Bags Width:
-
Max.100mm
-
Filling Volume:
-
Max.100ml
-
After-sales Service Provided:
-
Online Support
-
Bag type:
-
3/4 Sides Seal/Back Seal
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, SLITTING, Automatic coding,weighing,feeding
-
Packaging Type:
-
Bags, Film, Foil, Pouch, Back seal,3/4 side sealing sachet
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood, Aluminum film,pure aluminum film
-
Weight (KG):
-
400
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BURGEN
-
Dimension(L*W*H):
-
L)970*(W)680*(H)1950mm
-
Product Name:
-
Paste Ketchup Mayonnaise Tomato Sauce Sachet Packing Packaging Machine
-
Main Function:
-
Weighing Filling Sealing
-
Packing Speed:
-
Max.70 Bags/Min
-
Bags Length:
-
Max.180mm
-
Bags Width:
-
Max.100mm
-
Filling Volume:
-
Max.100ml
-
After-sales Service Provided:
-
Online Support
-
Bag type:
-
3/4 Sides Seal/Back Seal

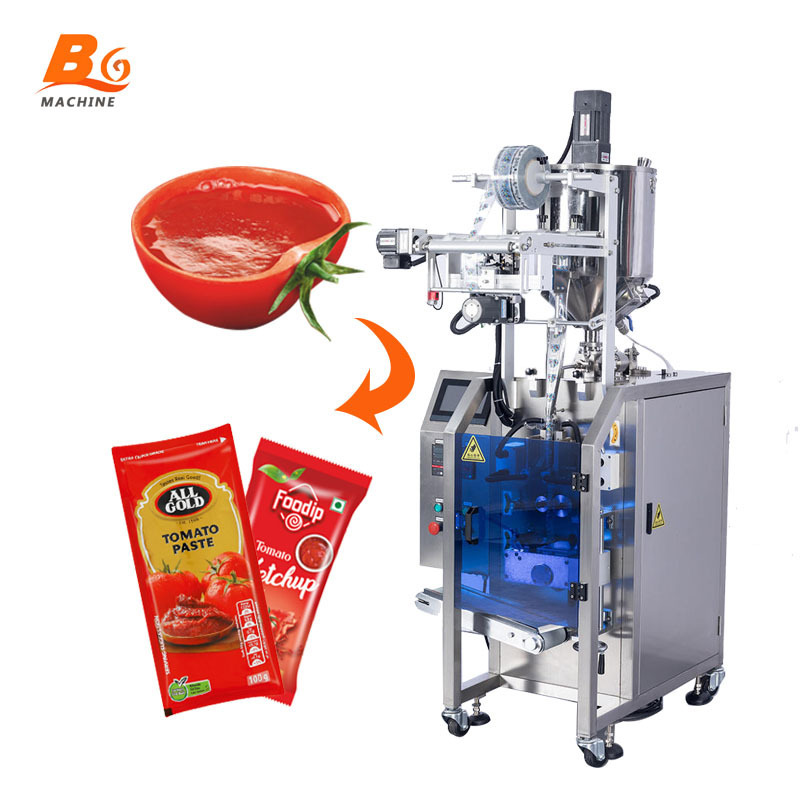

BG-100YS Paste Ketchup Mayonnaise Tomato Sauce Sachet Packing Packaging Machine
Modle
|
BG-100YSD
|
BG-160YSD
|
|
Film Width
|
Max.320MM
|
Max.420MM
|
|
Bag Length
|
30-150MM
|
40-170MM
|
|
Bag Width
|
30-100MM
|
40-120MM
|
|
Roll Diameter
|
Max.320MM
|
Max.320MM
|
|
Film Thickness
|
0.04-0.12MM
|
|
|
Packing Speed
|
40-60Bag/Min
|
40-60Bag/Min
|
|
Power
|
220V50/60HZ
2.6KW
|
220V 50/60HZ
2.6KW
|
|
Machine Size(mm)
|
(L)1005* (W)850*(H)1241 MM
|
(L)1217* (W)1015*(H)1343 MM
|
|
Machine Weight
|
About 620KG
|
About 650KG
|
|
Option Device
|
Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag
device. |
|
The paste packing machine is stainless steel material which comply to food safety grade and rust-proof, equip reliable performance electric & mechanism compoment.High packing capacity and speed, high efficient and lower your labour cost.
>>What materials can this equipment pack?
The machine is suit for automatic filling and packing liquid/paste/sauce/cream item, such as milk, juice honey, hair shampoo, tomato paste, salad dressing, jam ect. The machine adopt the pneumatic pump dosing unit which have the machine advantage of suit for viscous liquid item with high efficient and reliable performance. The most important is the machine equip with small horizontal ribbon blender mixing machine, this will make the machine much suit for seasoning paste/sauce, such as chilli paste, for the mixing machine will have the paste evenly packaged with less deposite.
Please contact supplier, send inquiry now.
More working videos, details and the coupon waiting for you
.
RAQ
Q.Are you factory or trading company?
A.We are a factory and manufacturer,we doing this industry for more than 20 years.
Q.Why do you choose your product?
A.We are professtional in packing machines over 20 years,
we pay much attention on quality controlling and strictly follow the Professional standard forms from parts
procession,assembly for whole set of machine and debug to the shipment.
Q.Where is your factory located? How can I visit there?
A.Our factory is located in Guangdong Province, China. You can take a plane to Guangzhou Baiyun Airport
or you can take an express from another country to Guangzhou. We'll arrange for someone to pick you up.
Q.How can you solve the after-sales problem of your factory in China?
A.We have thousands of after-sale operation videos of our products,
and we can provide detailed video explanations and solutions whenever we encounter problems
Q.What’s the service and guarantee can you offer?
A.The main parts of the machine, such as PLC, touch screen, etc. are guaranteed for one year.
Provide professional certificates; Free technical support;
