Quick Details
-
Ink type:
-
Edible Ink
-
The print height:
-
0-20cm
-
The cartridges:
-
803BK / Tri-color 803
-
Tablet System:
-
Android 8 , Resolution: 1280 x 800
-
Supporting software:
-
MAOSEN 1.0 Coffee printing software
-
Support language:
-
Russian, English, Chinese
-
Printing Object Height:
-
Automatic Detecting
-
Print Cup Caliber:
-
1-90mm (can be adjusted at will) per cup
-
Print head Protection:
-
intelligent Self Protect System
-
Printing Speed:
-
20 sec. for 1/2cups coffee
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Place of Origin:
-
Guangdong, China
-
Ink type:
-
Edible Ink
-
The print height:
-
0-20cm
-
The cartridges:
-
803BK / Tri-color 803
-
Tablet System:
-
Android 8 , Resolution: 1280 x 800
-
Supporting software:
-
MAOSEN 1.0 Coffee printing software
-
Support language:
-
Russian, English, Chinese
-
Printing Object Height:
-
Automatic Detecting
-
Print Cup Caliber:
-
1-90mm (can be adjusted at will) per cup
-
Print head Protection:
-
intelligent Self Protect System
-
Printing Speed:
-
20 sec. for 1/2cups coffee
| Name | 1-4cupw Coffee printer / Milktea Printer /cookies Printer | ||
| The cartridges | 803BK / Tri-color 803 | ||
| Tablet System | Android 8 , Resolution: 1280 x 800 | ||
| Supporting software | MAOSEN 1.0 Coffee printing software | ||
| Wireless configuration | Support mobile phone scanning QR code to upload images, Mobile phone needs to connect to WIFI | ||
| Support language | Russian, English, Chinese | ||
| The print height | 0-20cm | ||
| Printing Object Height Examine | Automatic Detecting | ||
| Print Cup Caliber | 1-90mm (can be adjusted at will) per cup | ||
| Print head Protection | intelligent Self Protect System | ||
| Printing Speed | 20 sec. for 1/2cups coffee | ||
| Print Quantity | 1-4cups (rectangular print Area 200mm) | ||
| The printing resolution | 600*600dpi | ||
| The ink type | edible ink or single brown ink /coffee ink | ||
| The ink system | The refillable cartridges | ||
| Power | 110-240v Frequency: 50-60hz | ||
| Computer system | Android system | ||
| Printing Interface | USB2.0 high speed | ||
| Working Environment | 10-35 ℃, Humidity 20%-80 % | ||
| Software | cupshow software customized software | ||
| Printer Size | 45*42*40.5cm | ||
| Net Weight | 17kg | ||
| The package size | 53*50*48cm | ||
| The Gross weight/ Volume weight | 27kg/31kg | ||

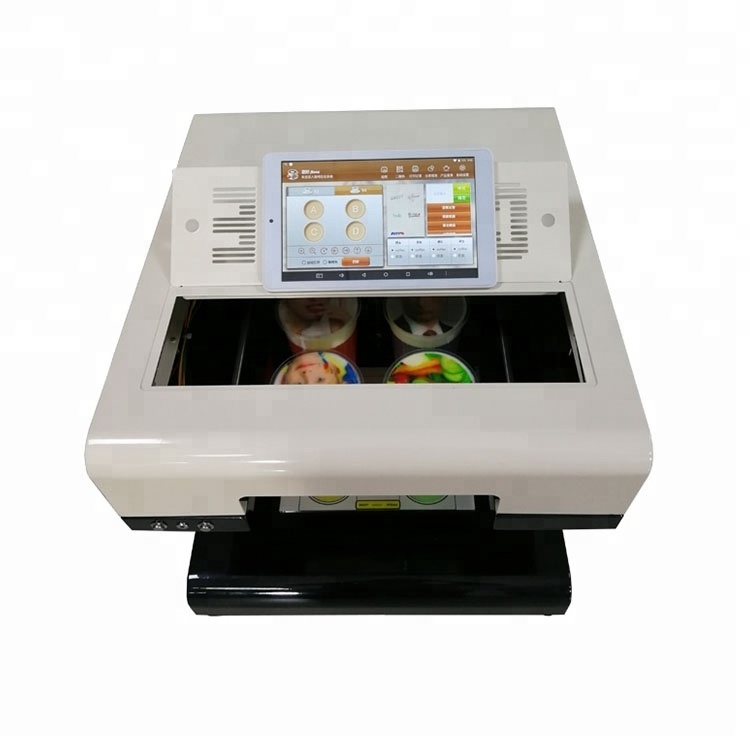

1.Update the coffee priner comw with 8" inch tablet PC
We will install the driver and calibration before printing , customer can use it immediately after refill the ink .
2.The upgrade cupshow software with more multi-function
a. The client can scan the QR code and send the picture from his mobile phone to software print , its increase the wireless router can upload images without the need for an external network
b. It can print 1-4 cups at the same time for different images , you do not need design 4 different pictures combine with one picture via photoshop , just input to our software with 4 different picture directly , greatly improve printing efficiency
3.Intelligent Anti-scratch Protecion system and same size cup just detect its height one time
Intelligent Anti-Scratch-Protectionsystem can detect the media by both red ray sensors to prevent the print head from scratching. At the same time , it will save a lots of time if you print more than 1 cups coffee due to the tray do not rising and down after finishing its printing .
.
4.The parallel leading screws to lift the platform and use stepper motor do not need clutch with more power to drive the machine to run
The platform rising/down with synchronization servo motor driver double leading screw with belt , it will be more power to drive the machine and more stable to improve the printing quality
