Quick Details
-
Dimensions:
-
63-160mm
-
Use:
-
welding
-
Power (kW):
-
2.9
-
Weight (KG):
-
61 KG
-
Application:
-
Plastic Pipe
-
Welding range:
-
Plastic Pipes: 63mm-160mm
-
Materials:
-
Aluminum Alloy
-
Weld Method:
-
Manual Butt Fusion Welding Machine
-
Power:
-
2.9Kw
-
After Warranty Service:
-
Video technical support
Quick Details
-
Core Components:
-
heating plate, frame
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
chengchao
-
Dimensions:
-
63-160mm
-
Use:
-
welding
-
Power (kW):
-
2.9
-
Weight (KG):
-
61 KG
-
Application:
-
Plastic Pipe
-
Welding range:
-
Plastic Pipes: 63mm-160mm
-
Materials:
-
Aluminum Alloy
-
Weld Method:
-
Manual Butt Fusion Welding Machine
-
Power:
-
2.9Kw
-
After Warranty Service:
-
Video technical support
|
Model
|
TH60-160FA
|
|
Welding range
|
60-160MM
|
|
Heating plate temperature
|
0-300℃
|
|
Package
|
Wooden Box
|
|
Machine frame material
|
aluminum ZL104
|
|
Application materials
|
PE,PPR,PB,PVDF
|

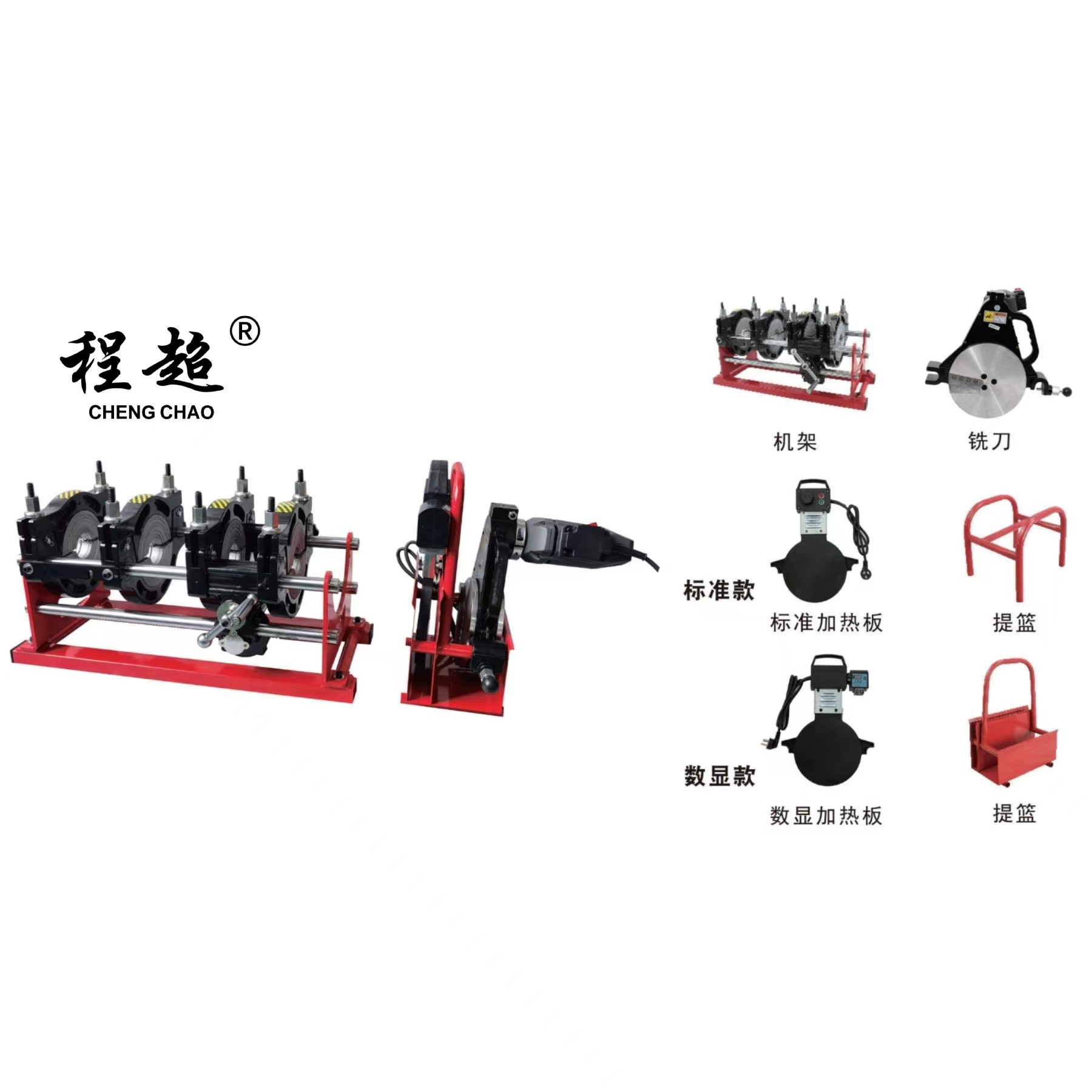

The main body supports and centres the plastic pipes with two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and supply the necessary movement for the welding process.
Using Japanese imported Teflon coating material, after twice Coating and three processes, heat transfer is uniform.
Planing Tool
Pure copper motor, cast aluminum housing,high con-centricity, smooth milling.
|
PACKING DETAILS
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Socket Fusion Machine/Manual Pressure Test Pump:
each set for one small carton box first, then 5-10 sets for one big carton box
Butt Fusion Machine:
packed in wooden box
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
SHIPPING DETAILS
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
For small or light goods, we will use international express;
For heavy or large goods, we suggest you use air or sea transportation.
Anyway, at customer's will.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Air Transport
Ocean Shipping
International Express
Socket Fusion Machine
Temperature Adjustable
Automatic
Digital Display
Double Heating
Pipe Cutter
32/42/63/75/110/200mm
customized color and blister card
Manual Pressure Test Pump
HDPE Butt Fusion Machine
Pump:25/50/60/70 Bar
Butt Fusion Machine: Manual/Hydraulic type
FAQ
Q1. Are you trading company or manufacturer ?
A: We are factory of PPR HDPE PVC pipe welding machine, plastic pipe cutter, manual pipeline testing pump and HDPE butt fusion welder. Our factory has been specializing in this industry for 20 years. More professional skills, better quality and more competitive price.
Q2. How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. And it is 15-20 days if the goods are not in stock, according to quantity.
Q3. Do you provide samples ? Is it free or extra ?
A:Yes, for some machines, we could offer the sample for free charge but do not pay the cost of freight.
Q4. What is your terms of payment?
A: We accept Paypal, Western Union, L/C, TT, Trade Assurance,...
