Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CH Machinery
-
Model Number:
-
JMD5T
-
brake:
-
hand brake
-
rope groove:
-
option
-
rope capacity:
-
200m
Quick Details
-
Power Source:
-
DIESEL ENGINE
-
Application:
-
CRANES
-
Capacity:
-
5Ton
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CH Machinery
-
Model Number:
-
JMD5T
-
brake:
-
hand brake
-
rope groove:
-
option
-
rope capacity:
-
200m

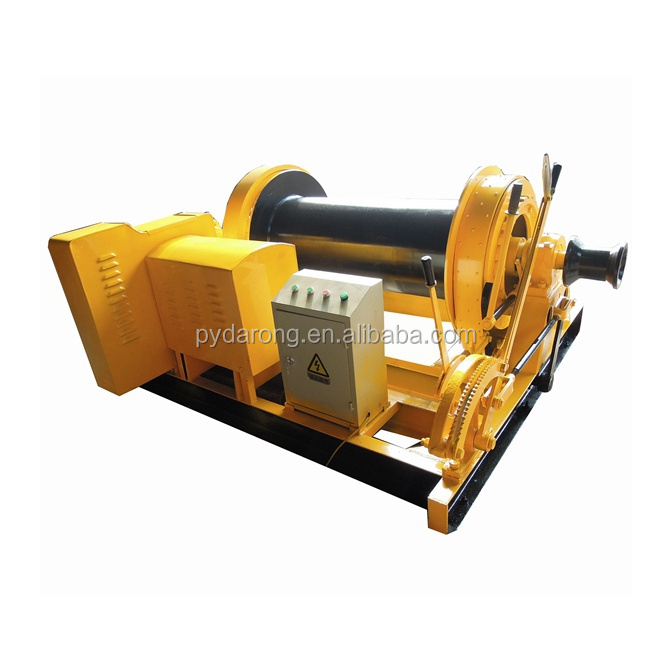

3Ton DIESEL WINCH FOR MINE CONSTRUCTION LIFTING / PULLING.
1. Capacity 3Ton
2. Rope capacity 150m
3. hand brake
4. speed:10m/min
5. can forward and reverse running, lifting 3000kg load up and down.
APPLICATION: PULLING, and wind steel wire rope
FORWARD AND REVERSING by GEAR LEVER
Brake: one handle brake
Single SPEED
Key starter with battery
We can supply 1ton to 50ton electric/ diesel power winch
The winches are made by order, please supply the capacity and rope length requirment to us via email.
|
No. |
Item |
Spec. |
|
1 |
Winch model |
JMD-5T |
|
2 |
Line pull capacity (S.W.L.) |
5 Ton |
|
3 |
Line rope rated speed |
10m/min |
|
4 |
Diesel engine power |
16kw, single cylinder engine, horizontal and four-stroke circle.Speed:2200 r/min |
|
8 |
Speed reducer |
Three stage reduction column helical gears box Marine gearbox with handle for switch way |
|
9 |
Brake system |
One hand brake on drum |
