Quick Details
-
Brand Name:
-
ZPX
-
Dimension(L*W*H):
-
1200*450*550MM
-
Weight:
-
100
-
Product name:
-
99.9% Purity Cryogenic Liquid Nitrogen LN2 Generator 10 Liter Daily
-
Source Electricity Power:
-
AC220V 50HZ
-
Liquid nitrogen output /day:
-
8-10L
-
Refrigerator power consumption:
-
1.2KW
-
Nitrogen generator:
-
built-in (Hollow fiber membrane)
-
Power consumption of air compressor form:
-
0.55KW Piston oil-free type 0.55KW
-
Automaticity:
-
Automatic fluid replenishment
-
Noise level:
-
Less than 55 DB
-
Built-in dewar:
-
10L
-
Nitrogen output pressure:
-
0.5-1.5bar adjustable
Quick Details
-
Capacity:
-
10L
-
Max Working Pressure(MPa):
-
0 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZPX
-
Dimension(L*W*H):
-
1200*450*550MM
-
Weight:
-
100
-
Product name:
-
99.9% Purity Cryogenic Liquid Nitrogen LN2 Generator 10 Liter Daily
-
Source Electricity Power:
-
AC220V 50HZ
-
Liquid nitrogen output /day:
-
8-10L
-
Refrigerator power consumption:
-
1.2KW
-
Nitrogen generator:
-
built-in (Hollow fiber membrane)
-
Power consumption of air compressor form:
-
0.55KW Piston oil-free type 0.55KW
-
Automaticity:
-
Automatic fluid replenishment
-
Noise level:
-
Less than 55 DB
-
Built-in dewar:
-
10L
-
Nitrogen output pressure:
-
0.5-1.5bar adjustable
Zhongpanxin liquid nitrogen tank is a series of products of Xinxiang Zhongpanxin Industrial Co., Ltd., which is a company integrating research, development, production and sales of professional industrial application refrigeration, refrigeration and cold supply chain equipment and instruments. The YDS, YDZ, YDD, YDK series of liquid nitrogen tanks and liquid nitrogen generators (liquid nitrogen biological cryogenic containers and generators) produced by Zhongpanxin are widely used in the freezing and storage of semen of livestock breeding in animal husbandry, the cryopreservation of human organs, skin, blood and cells in the medical and health industry, bioengineering, industrial cold assembly, cold treatment of metal materials, low-temperature grinding, beauty industry, liquid nitrogen ice cream industry and superconductivity.
Liquid Nitrogen Generator Brief:
The liquid nitrogen generator (liquid nitrogen machine) equipment is composed of three parts: xenon generator (built-in or external), refrigeration equipment (gas liquefaction equipment) and dewar. The whole machine has the function of automatic liquid replenishment when the liquid nitrogen tank is lower than the set liquid level, and the equipment will start automatically when the liquid nitrogen in the liquid nitrogen tank is lower than the set liquid level. The liquid nitrogen machine is manufactured using the principle of throttling refrigeration of mixed working fluid, which cools the nitrogen from the ambient temperature step by step to the saturated condensation temperature of nitrogen liquefaction, and the minimum temperature of the refrigeration machine can be -196 °C, and the liquefied liquid nitrogen in the refrigeration evaporator is transported to the liquid nitrogen tank for preservation and liquid nitrogen, and the equipment automatically detects the liquid nitrogen level in the dewar.
Liquid Nitrogen Generator Advantage:
1. The liquefaction system adopts advanced mixed environmental refrigerant (MR)
2. The refrigerator does not need regular maintenance, high reliability, and long service life.
3. All cryogenic pipe fittings are insulated by vacuum to reduce the loss of cold energy.
4. One-button touch screen, color Chinese and English operation interface is simple and easy to operate.
5. The equipment has the function of automatic rehydration and automatic control system
Liquid Nitrogen Generator 10L /Day Data and Specification:
|
C onfiguration name |
Technical Parameter |
Executive standards |
|
Working power supply |
AC220V 50HZ |
|
|
Refrigeration compressor |
Efficiency <1.2KW |
Imported |
|
Refrigeration method |
M ixtures |
Independent Research and Development |
|
Refrigeration capacity |
55W |
|
|
External air compressor |
Variable frequency oil-free air compressor |
Imported |
|
Built in Dewar |
10L |
GB standard China National Standard |
|
|
Nitrogen purity>99.9%, dew point temperature -70 ℃, pressure 6 bar, nitrogen flow
|
fr South Korea |
|
Precooling time |
30min |
|
|
Cooling mode |
Air-cooled |
|
|
Daily output of liquid nitrogen |
8L-12L/d |
|
|
Nitrogen output pressure |
0.1-0.5bar |
Adjustable |
|
|
One-click style |
Independent Research and Development (Single Chip) |
|
Noise |
<55db |
|
|
Ambient temperature |
<32°C |
|
|
NET size of liquid nitrogen machine |
550mm*
450mm*
|
|
|
Weight of liquid nitrogen machine |
≈65kg |

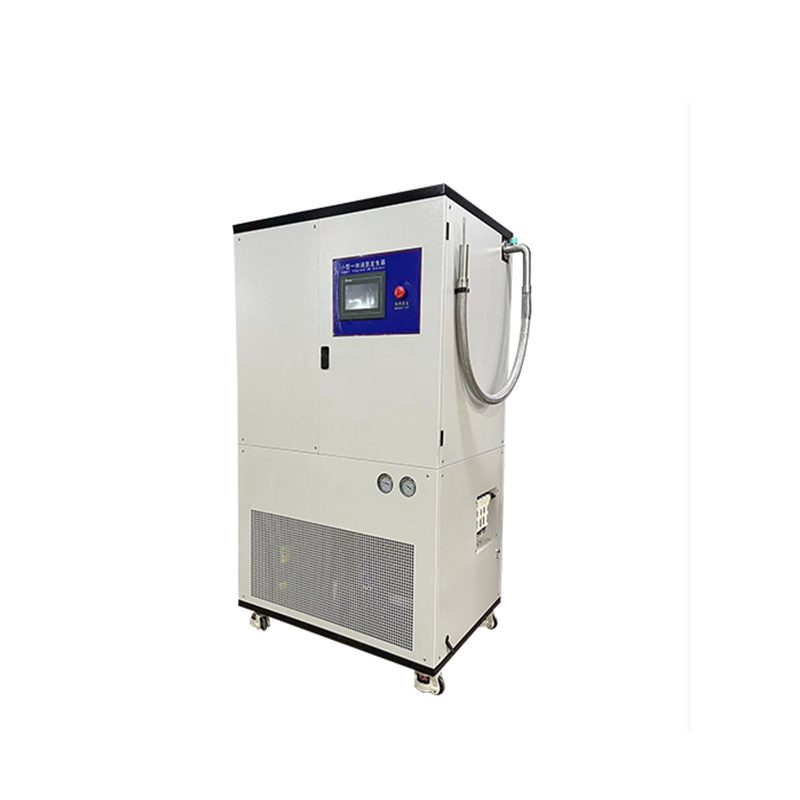

Liquid Nitrogen Generator Picture:
