Quick Details
-
Dimension(L*W*H):
-
1920*940*1800mm
-
Weight (KG):
-
550 kg
-
Product Name:
-
Electric Stacker 1.5 Ton
-
lifting height:
-
1.6-3.5m
-
load capacity:
-
1500kg automatic stacker machine
-
Motor:
-
DC motor
-
Control systme:
-
Curtis
-
Seal ring:
-
Japan NOK
-
Product name:
-
Electric Stacker
-
Application:
-
Stack
-
Power type:
-
Electric Power
-
Operator Type:
-
Stand-on stacker
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OLIFT
-
Dimension(L*W*H):
-
1920*940*1800mm
-
Weight (KG):
-
550 kg
-
Product Name:
-
Electric Stacker 1.5 Ton
-
lifting height:
-
1.6-3.5m
-
load capacity:
-
1500kg automatic stacker machine
-
Motor:
-
DC motor
-
Control systme:
-
Curtis
-
Seal ring:
-
Japan NOK
-
Product name:
-
Electric Stacker
-
Application:
-
Stack
-
Power type:
-
Electric Power
-
Operator Type:
-
Stand-on stacker

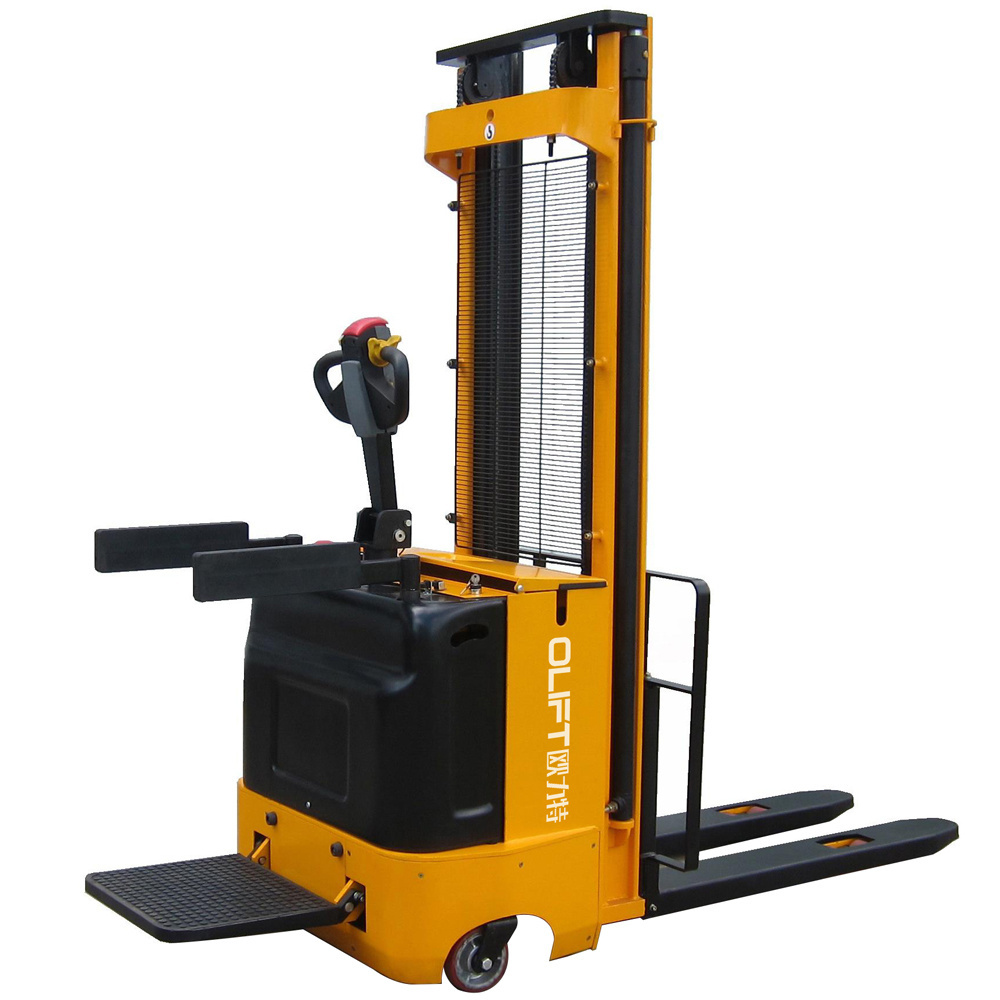

Electric Stacker 1.5 ton 2 ton Electric Powered Pallet Stacker Automatic Stacker Machine
Product Description
The explosion-proof electric pallet stacker
The difference between the explosion-proof Pallet Stacker and the ordinary
Pallet Stacker
is mainly in the circuit, which has high requirements on the circuit, especially the electric motor, such as the walking motor, the steering motor, and the hydraulic lifting motor. When the motor rotates, sparks are generated, which may cause danger in some special places, so special protection and isolation are carried out, or it is sealed. The connections between the wires have been specially
protected.
protected.
Working Places:
With the development of the world economy,
especially the development of the petroleum and chemical industries and the continuous increase in the variety of chemical raw
materials, the places where there are hidden dangers of explosive gas safety in production, transportation and storage are also expanding. In order to ensure safe and efficient production, the application of explosion-proof storage and transportation vehicles such as forklifts, pallet trucks, stackers, order pickers, etc., has attracted more and more attention from all over the world. Explosion-proof storage and handling vehicles have also become a highly needed electric product in the market.
especially the development of the petroleum and chemical industries and the continuous increase in the variety of chemical raw
materials, the places where there are hidden dangers of explosive gas safety in production, transportation and storage are also expanding. In order to ensure safe and efficient production, the application of explosion-proof storage and transportation vehicles such as forklifts, pallet trucks, stackers, order pickers, etc., has attracted more and more attention from all over the world. Explosion-proof storage and handling vehicles have also become a highly needed electric product in the market.
factories, ammunition warehouses and dangerous goods warehouses.
Specifications chart with models of the Electric
Pallet Stacker
:
|
Model
|
|
EL15/20
|
EL15/20
|
EL15/20
|
EL15/20
|
|||
|
Driving style
|
|
Standing pedal
|
Standing pedal
|
Standing pedal
|
Standing pedal
|
|||
|
Load capacity
|
kg
|
1500/2000
|
1500/2000
|
1500/2000
|
1500/2000
|
|||
|
Load center
|
mm
|
600
|
600
|
600
|
600
|
|||
|
Overall length
|
mm
|
2050
|
2050
|
2050
|
2050
|
|||
|
Overall width
|
mm
|
940
|
940
|
1080
|
1080
|
|||
|
Min. overall height
|
mm
|
2182
|
2349
|
2515
|
2682
|
|||
|
Fork dimension
|
mm
|
1150×160×56
|
1150×160×56
|
1150×160×56
|
1150×160×56
|
|||
|
Outside width of forks
|
mm
|
560/680
|
560/680
|
560/680
|
750
|
|||
|
Ground clearance
|
mm
|
29
|
29
|
29
|
29
|
|||
|
Base distance
|
mm
|
1365
|
1365
|
1365
|
1365
|
|||
|
Wheel material
|
|
PU
|
PU
|
PU
|
PU
|
|||
|
Driving wheel dimension
|
mm
|
Φ250×80
|
Φ250×80
|
Φ250×80
|
Φ250×80
|
|||
|
Front wheel dimension
|
mm
|
Φ78×70
|
Φ78×70
|
Φ78×70
|
Φ78×70
|
|||
|
Balance wheel dimension
|
mm
|
Φ150×75
|
Φ150×75
|
Φ150×75
|
Φ150×75
|
|||
|
Min. steering radius
|
mm
|
1600
|
1600
|
1605
|
1605
|
|||
|
Min. width of aisle
|
mm
|
≥2500
|
≥2500
|
≥2500
|
≥2500
|
|||
|
Max. height of forks
|
mm
|
4500
|
5000
|
5500
|
6000
|
|||
|
Max. overall height
|
mm
|
5285
|
5785
|
6285
|
6785
|
|||
|
Min. height of forks
|
mm
|
90
|
90
|
90
|
90
|
|||
|
Free lift height
|
|
1550
|
1720
|
1885
|
2050
|
|||
|
Travel speed(laden/unladen)
|
km/h
|
4.5/5.5
|
4.5/5.5
|
4.5/5.5
|
4.5/5.5
|
|||
|
Lift speed(laden/unladen)
|
mm/s
|
125/175
|
125/175
|
125/175
|
125/175
|
|||
|
Lowering speed(laden/unladen)
|
mm/s
|
105/120
|
105/120
|
105/120
|
105/120
|
|||
|
Brake type
|
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
|||
|
Power of driving motor
|
kw
|
1.2
|
1.2
|
1.2
|
1.2
|
|||
|
Power of lift motor
|
kw
|
3
|
3
|
3
|
3
|
|||
|
Battery capacity/voltage
|
Ah/V
|
240/24
|
240/24
|
240/24
|
240/24
|
|||
|
Weight of battery
|
kg
|
240
|
240
|
240
|
240
|
|||
|
Net weight(without battery)
|
kg
|
1010
|
1035
|
1065
|
1145
|
|||
List of Components for Explosion-proof electric Order Picker：
|
Component
|
Standards
|
|
Electric controller
|
Flame proof treatment, meet the relevant requirements of National Standard of China GB3836-2010.
|
|
Battery
|
Treat the battery into the equipment with explosion-proof ed function，meet the relevant requirements of National Standard of China GB3836-2010.
|
|
Motor
|
Treat the common motor into the motor with explosion-proofed function, meet the relevant requirements of China’s standard GB3836-2010.
|
|
Alarm device
|
Horn with explosion-proof treatment.
|
|
Panel
|
explosion-proof treatment.
|
|
Switches
|
Forward/backward switch, steering switch, emergency stop switch, Explosion proof electric lock.
|
|
Circuit of the whole machine
|
All electrical parts and wires are explosion-proofed and flameproof treated.
|
|
The body of machine
|
Treated with adding electrostatic tape
|
|
Applicable zone
|
T2 IIB
The maximum allowable temperature of the surface of the machine is 300℃. |
|
Standard
|
National Standard of China GB3836 -2010, GB19854-2005
|
Examples of combustible gases, steam levels, and temperature groups that the vehicle can adapt to are shown in the following table:
|
Explosive Level /
Category
|
T1
T＞450℃
|
T2
450℃≥T＞300℃
|
T3
300℃≥T＞200℃
|
T4
200℃≥T＞135℃
|
|
IIA
|
Methane, ethane, propane ammonia, acetic acid, acetone, styrene, chlorobenzene, toluene
|
Methanol, ethanol, propanol, butanol, butane, propylene, ethyl acetate, amyl acetate, butyl acetate
|
Pentane, hexane, heptane octane, decane, kerosene pentanol motor gasoline
|
Acetaldehyde, trimethylamine
|
|
IIB
|
Carbon monoxide, propyne, cyclopropane, acrylonitrile, hydrogen cyanide, coke oven gas
|
Ethylene, 1,3-butadiene, ethylene oxide, 1,2-propylene oxide
|
Dimethyl ether. Acrolein, hydrogen sulfide
|
Dimethyl ether. Acrolein, hydrogen sulfide
|
Detailed Images
Related Products
Packing&Shipping
|
Packaging Detail:
|
Electric Stacker 1.5 ton 2 ton Electric Powered Pallet Stacker Automatic Stacker Machine will be packed by Flexible Package, Seaworthy Package
|
|
|
|
|||
|
Delivery Detail:
|
Within 15 days for Electric order picker.
|
|
|
|
|||
Certifications
Company Introduction
Qingdao Olift Equipment Co.,Ltd.
provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lifts, moving tool, car mover, platform lifting, wheelchair lift platform and more. We have professional team members to design your hand pallet truck products and control the quality.
After Sales Service
Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
1. After-sales service provided: Engineer available to service machinery overseas.
2. We offer technical supporting for the
Electric Pallet Stacker
all year round.
3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the trucks.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Qingdao Olift Equipment Co., Ltd.
Address:
No. 143, Zhuzhou Road, Laoshan District, Qingdao, Shandong, China
Tel : +86-532-88990008
Sales Dept.: Lily Liu
Tel : +86-532-88990008
Sales Dept.: Lily Liu
Email:
truck@olift.com
Mobile: +86 18561937711
Mobile: +86 18561937711
Wechat:
+8618561937711
Website: www.olift.com
Website: www.olift.com
FAQ
1.How can customer buy parts once the Electric Pallet Stacker breaks down?
The Pallet Stacker adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Electric Pallet Stacker ?
One of the great advantage of Pallet Stacker is with very very low failure rate. Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 3-5 years if you maintain it as per our maintenance manual.
4.How long is the quality guarantee of the Electric Pallet Stacker ?
One year quality guarantee including battery. If it breaks down within one year,we can send the parts free of charge to you.
The Pallet Stacker adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Electric Pallet Stacker ?
One of the great advantage of Pallet Stacker is with very very low failure rate. Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 3-5 years if you maintain it as per our maintenance manual.
4.How long is the quality guarantee of the Electric Pallet Stacker ?
One year quality guarantee including battery. If it breaks down within one year,we can send the parts free of charge to you.
