Quick Details
-
Blade Length (mm):
-
5100 mm
-
Backgauge Travel (mm):
-
20 - 580 mm
-
Throat Depth (mm):
-
120 mm
-
Brand Name:
-
MAOFENG
-
Power (kW):
-
11 kW
-
Weight (KG):
-
7800 KG
-
Place of Origin:
-
Anhui
-
Dimension(L*W*H):
-
3800*1850*2100
-
Year:
-
2023
-
Product name:
-
MAOFENG QC11K 10*3200 Hydraulic Swing Beam Shearing Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Function:
-
Cutting Sheet Plate
-
Control system:
-
Estun E21S Control/DAC360S
-
Type:
-
Swing Beam Shear
-
Model:
-
QC11K 10*3200
-
Certification:
-
CE
-
Color:
-
Customised
-
Electrical components:
-
Schneider Electrical
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
10 mm
-
Shearing Angle:
-
0.5-2
-
Blade Length (mm):
-
5100 mm
-
Backgauge Travel (mm):
-
20 - 580 mm
-
Throat Depth (mm):
-
120 mm
-
Brand Name:
-
MAOFENG
-
Power (kW):
-
11 kW
-
Weight (KG):
-
7800 KG
-
Place of Origin:
-
Anhui
-
Dimension(L*W*H):
-
3800*1850*2100
-
Year:
-
2023
-
Product name:
-
MAOFENG QC11K 10*3200 Hydraulic Swing Beam Shearing Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Function:
-
Cutting Sheet Plate
-
Control system:
-
Estun E21S Control/DAC360S
-
Type:
-
Swing Beam Shear
-
Model:
-
QC11K 10*3200
-
Certification:
-
CE
-
Color:
-
Customised
-
Electrical components:
-
Schneider Electrical

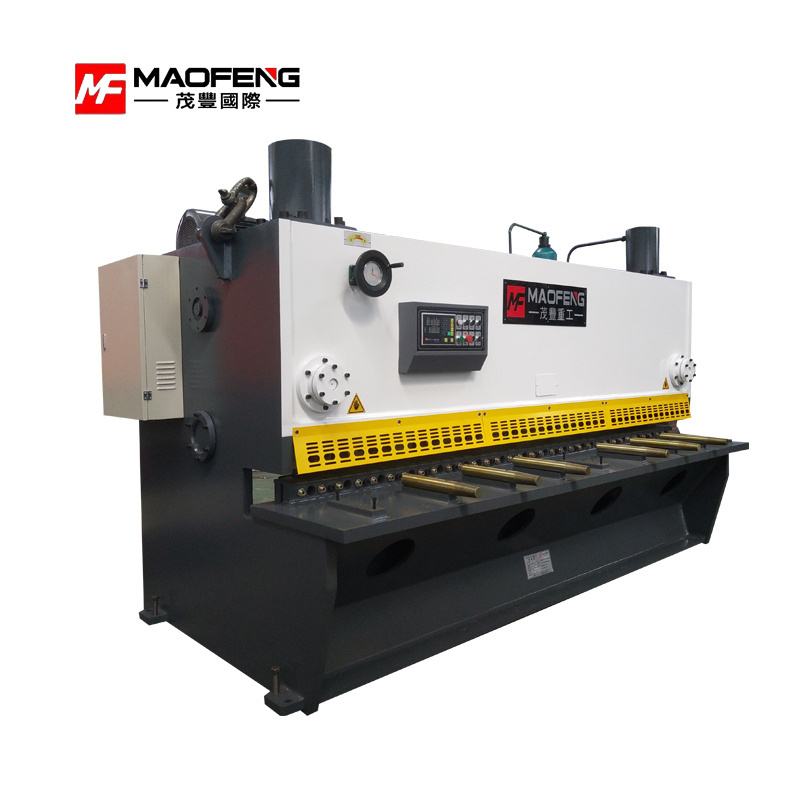

MAOFENG QC11Y/K SERIES CNC GUILLOTINE SHEAR 10*3200
Products Description
The roling guide structure is supported by three points ；The shear Angle of the tool holder can be adjusted in the range；Shear travel can be adjusted arbitrarily；Manual lifting of the retaining function；The inside of the wallboard is equipped with a lubricating oil pump；The standard E21S numerical control system controls the cut count and the post-block；
A variety of numerical control systems such as DAC360 can be selected。
QC11Y/K Series Technical Parameters
|
Model
Type （mm） |
Cutting Angel
（°） |
Throat Depth
（mm） |
Backguage Travel
（mm） |
Strokes Cycle （T/mm）
|
Power
（kw） |
Overall Dimension
L*W*H （mm） |
|
6*2500
|
0.5-1.5
|
100
|
20-580
|
14
|
7.5
|
3100*1700*1950
|
|
6*3200
|
0.5-1.5
|
100
|
20-580
|
12
|
7.5
|
3800*1700*1950
|
|
6*4000
|
0.5-1.5
|
100
|
20-580
|
10
|
7.5
|
4600*1700*1950
|
|
6*5000
|
0.5-1.5
|
100
|
20-580
|
8
|
11
|
5700*1850*2150
|
|
8*2500
|
0.5-2
|
100
|
20-580
|
14
|
7.5
|
3100*1800*2050
|
|
8*3200
|
0.5-2
|
100
|
20-580
|
12
|
7.5
|
3800*1800*2050
|
|
8*4000
|
0.5-2
|
100
|
20-580
|
10
|
7.5
|
4600*1800*2050
|
|
8*5000
|
0.5-2
|
100
|
20-580
|
7
|
11
|
5700*1900*2250
|
|
8*6000
|
0.5-2
|
120
|
20-580
|
6
|
11
|
6700*1900*2250
|
|
10*2500
|
0.5-2
|
120
|
20-580
|
10
|
11
|
3100*1850*2100
|
|
10*3200
|
0.5-2
|
120
|
20-580
|
8
|
11
|
3800*1850*2100
|
|
10*5000
|
0.5-2
|
120
|
20-580
|
5
|
18.5
|
5700*2000*2500
|
|
10*6000
|
0.5-2
|
120
|
20-580
|
4
|
18.5
|
6700*2000*2600
|
|
12*2500
|
0.5-2.5
|
120
|
20-800
|
10
|
18.5
|
3100*2000*2200
|
|
12*3200
|
0.5-2.5
|
120
|
20-800
|
8
|
18.5
|
3800*2000*2200
|
|
12*4000
|
0.5-2.5
|
120
|
20-800
|
6
|
18.5
|
4600*2000*2250
|
|
12*6000
|
0.5-2.5
|
120
|
20-800
|
4
|
22
|
6700*2100*3000
|
|
16*2500
|
0.5-2.5
|
120
|
20-800
|
8
|
18.5
|
3100*2100*2300
|
|
16*3200
|
0.5-2.5
|
120
|
20-800
|
7
|
18.5
|
3800*2100*2400
|
|
16*4000
|
0.5-2.5
|
120
|
20-800
|
6
|
22
|
4600*2100*2500
|
|
16*6000
|
0.5-2.5
|
120
|
20-800
|
4
|
37
|
6700*2150*2900
|
|
20*2500
|
0.5-3
|
120
|
20-800
|
6
|
22
|
3100*2050*2400
|
|
20*3200
|
0.5-3
|
120
|
20-800
|
5
|
22
|
3800*2150*2400
|
|
20*4000
|
0.5-3
|
120
|
20-800
|
4
|
30
|
4600*2200*2800
|
|
25*2500
|
0.5-3
|
120
|
20-800
|
5
|
37
|
3500*2250*2550
|
|
25*3200
|
0.5-3
|
120
|
20-800
|
5
|
37
|
4000*2250*2550
|
FAQ
1.What kind of documents can you supply ?
We can provide the documents according the customer requests, including Certificate of origin ,Insurance, and other export documents.
2.What is the average lead time?
The lead time is about 15 days after receiving the deposit payment.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or By T/T 30% of total amount in advance and the balance to be paid after the copy of the bill of lading sent to the buyer.
4.Guarantee period ?
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers' incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
5.Why Choose Us?
Our elite teams can provide you professional, customized, and all-round services around the clock. lf you need any help contact us by WhatsApp ,Skype, Email or Telephone.
