Quick Details
-
Dimension(L*W*H):
-
5870x2420x2565
-
Power (kW):
-
75
-
Weight (KG):
-
20000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Type:
-
rubber calender
-
working diameter of rolls:
-
450
-
working length of rolls:
-
1400
-
friction ratio of front and rear roll:
-
1:1:1 1:1.5:1
-
capacity per bath(mix-up stock)kg/h:
-
500
-
Driven motor power(kw):
-
75
-
Weight:
-
20000kgs
-
Certification:
-
CE,ISO9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUICAI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5870x2420x2565
-
Power (kW):
-
75
-
Weight (KG):
-
20000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Type:
-
rubber calender
-
working diameter of rolls:
-
450
-
working length of rolls:
-
1400
-
friction ratio of front and rear roll:
-
1:1:1 1:1.5:1
-
capacity per bath(mix-up stock)kg/h:
-
500
-
Driven motor power(kw):
-
75
-
Weight:
-
20000kgs
-
Certification:
-
CE,ISO9001
Customize OEM/ODM SERVICE
WELCOME TO OUR FACTORY VIST AND NEGOTIATION

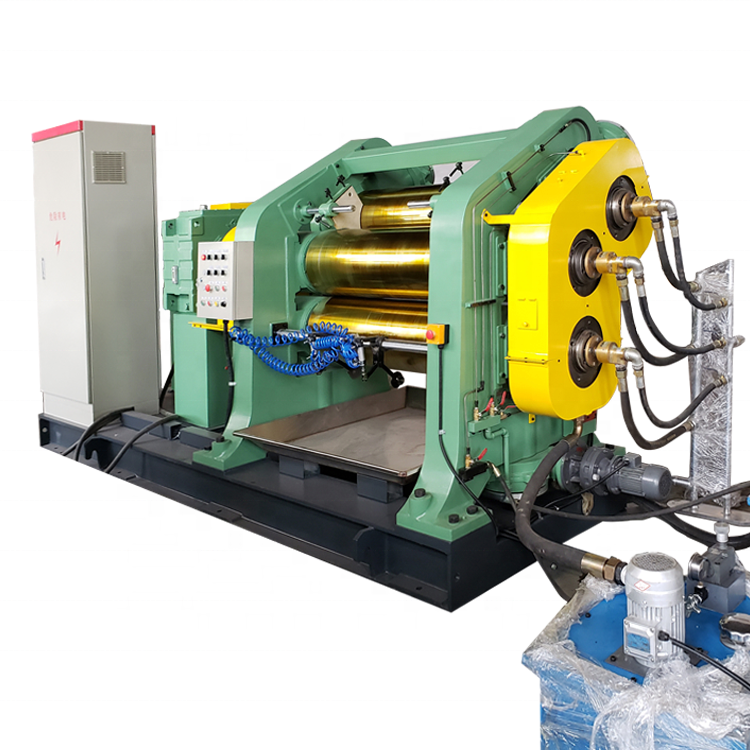

Three roll rubber calender machine/rubber calender mill
Application:
Rubberizing and fractioning of textile material ,rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.
General design:
It mainly contains roller, rack , backplane, adjustment, device , transmission system, roller temperature control device, security device ,lubricating device,etc.
Features :
1.The roller is made of chilled cast iron alloys, whose work surface has high hardness , wear-resistent and durable life. Steam , cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.
2.Roll spacing can be adjusted both by manual or electric mode .
3.Roller bearings lubricating can adopt drier oil or dilute oil.
| Type |
Roll
mm |
Roll working length
mm |
Speed Ratio of rolls |
Middle-roll linear speed
|
Adjusting nip range
|
Min.calendering
product thickness
|
Calendering
product width
|
Motor power kw |
Overall size mm |
Weight ton |
| XY-3R230X630 | 230 | 630 |
1:1:1
1:1.2:1 |
0.8-8 | 0-7 | 0.2 | 500 | 7.5 | 3168x890x1830 | 3 |
| XY-3R252X720 | 252 | 720 | 1:1:1 | 2-15.9 | 0-10 | 0.2 | 550 | 22 | 3950x1720x1210 | 5.5 |
| XY-3R360X1120 | 360 | 1120 |
1:1:1
0.733:1:1 0.733:1:0.733 |
3-20 | 0-10 | 0.2 | 920 | 45 | 6500x1500x2440 | 14 |
| XY-3R400X1200 | 400 | 1200 |
1:1:1
1:1.383:1.383 1:1.383:1 |
3-26.39 | 0-10 | 0.2 | 1200 | 55 | 6300X1500X2440 | 18 |
| XY-3R450X1400 | 450 | 1400 |
1:1:1
1:1.5:1 |
2.62-26.2 | 0-10 | 0.2 | 1250 | 75 | 7320X2200X2900 | 21 |
| XY-3R610X1730 | 610 | 1730 |
1:1:1
1:1.4:1 |
5.4-54 | 0-20 | 0.15 | 1500 | 160 | 7010X3950X3730 | 42 |
| XY-3R710X1800 | 710 | 1800 | 0.5-1 | 4-40 | 0-30 | 0.2 | 1600 |
90X2
110X1 |
9950X3050X4540 | 90 |
| XY-3R710X2130 | 710 | 2130 | 1:1:1 | 8-50 | 0-20 | 0.15 | 1900 | 185 | 7650X4560X4080 | 67 |
| XY-3R800X2500 | 800 | 2500 | 0.5-1 | 3-30 | 0-30 | 0.2 | 2200 | 132X3 | 11400X3200X5050 | 110 |
| XY-3R860X2500 | 860 | 2500 | 0.5-1 | 4-40 | 0-30 | 0.5 | 2200 | 132X3 | 12000X3200X5100 | 130 |
