Quick Details
-
Brand Name:
-
AJK
-
Dimension(L*W*H):
-
2.4cm*2.6cm*7.5cm
-
Weight (KG):
-
0.14 kg
-
Product name:
-
12V 24V Solenoid Electromagnet
-
Type:
-
Mini Micro Electromagnet
-
Certificate:
-
CE RoHS
-
Application:
-
Widely used in massage equipment , disinfecting cabinet, etc.
-
AC/DC Voltage:
-
DC 12.0~24.0V
-
Retentivity:
-
>0.5N
-
Core Diameter:
-
Diameter 4.0mm
-
Maximum stroke:
-
6mm
-
Name:
-
12V 24 Volt Electromagnet
-
Color:
-
Colors
Quick Details
-
Warranty:
-
1 Year
-
Core Components:
-
Electromagnet
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AJK
-
Dimension(L*W*H):
-
2.4cm*2.6cm*7.5cm
-
Weight (KG):
-
0.14 kg
-
Product name:
-
12V 24V Solenoid Electromagnet
-
Type:
-
Mini Micro Electromagnet
-
Certificate:
-
CE RoHS
-
Application:
-
Widely used in massage equipment , disinfecting cabinet, etc.
-
AC/DC Voltage:
-
DC 12.0~24.0V
-
Retentivity:
-
>0.5N
-
Core Diameter:
-
Diameter 4.0mm
-
Maximum stroke:
-
6mm
-
Name:
-
12V 24 Volt Electromagnet
-
Color:
-
Colors

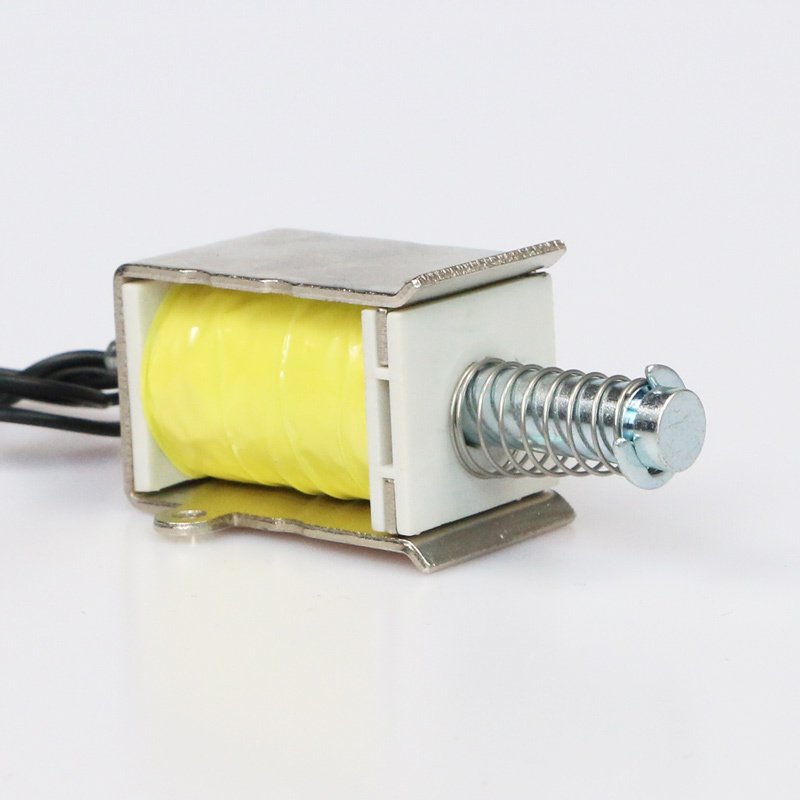

Product show
Product description:
AJK small solenoid with innovative design and friendly material.
Features:
1.Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.
2.DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
3.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
4.Open frame structure with mounting holes, accepted custom as you needed.
5.ISO9001, CB, PAHs, REACH, RoHS compliant.
5.ISO9001, CB, PAHs, REACH, RoHS compliant.
Typical Applications:
Coffer maker,beverage machine,door locker,medical device and so on.
Coffer maker,beverage machine,door locker,medical device and so on.
|
Model
|
Rated Voltage
|
Rated Current
|
Resistance
|
Max Stroke
|
Hold Force
|
Load
|
|
AJK-T0502
|
DC 6.0 V
|
1.11 A
|
5.4Ω±10%
|
3 mm
|
3.5 N
|
Bistable
|
|
|
DC 12.0 V
|
800 mA
|
15Ω±10%
|
3 mm
|
3.5 N
|
Bistable
|
|
AJK-T0901
|
DC 12.0 V
|
600 mA
|
20Ω±10%
|
6 mm
|
0.5 N
|
Push
|
|
|
DC 24.0 V
|
480 mA
|
50Ω±10%
|
6 mm
|
0.5 N
|
Push
|
|
AJK-T0902
|
DC 12.0 V
|
600 mA
|
20Ω±10%
|
6 mm
|
0.5 N
|
Pull
|
|
|
DC 24.0 V
|
480 mA
|
50Ω±10%
|
6 mm
|
0.5 N
|
Pull
|
