RIVER PEBBLES
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
720*660*850
-
Weight:
-
10000 KG
-
Name:
-
Stone Mining Rock Breaker Crushing Line Mobile Jaw Crusher Plant Price
-
Feed Opening (mm):
-
600*900
-
Max.Feeding Size:
-
165
-
Price:
-
Negotation
-
Installation:
-
Engineer Guide
-
Quality:
-
High Level
-
Delivery Time:
-
10-15 Days
-
Color:
-
Customized
-
Factory Visit:
-
Welcomed Warmly
-
Keyword:
-
Mobile Crusher Station
Quick Details
-
Application:
-
Energy Mining
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHUNZHI
-
Dimension(L*W*H):
-
720*660*850
-
Weight:
-
10000 KG
-
Name:
-
Stone Mining Rock Breaker Crushing Line Mobile Jaw Crusher Plant Price
-
Feed Opening (mm):
-
600*900
-
Max.Feeding Size:
-
165
-
Price:
-
Negotation
-
Installation:
-
Engineer Guide
-
Quality:
-
High Level
-
Delivery Time:
-
10-15 Days
-
Color:
-
Customized
-
Factory Visit:
-
Welcomed Warmly
-
Keyword:
-
Mobile Crusher Station
The power system of the
mobile crushing station
is composed of a crawler chassis, a frame assembly, main and auxiliary equipment, and a control system. When moving, the power is provided by the power system, and the hydraulic electronic control system controls the drive of the crawler chassis. During installation, the power system controls and drives the hydraulic cylinder through the hydraulic electronic control system to automatically complete the equipment installation; when working, the power system drives and controls the host and auxiliary equipment through the hydraulic electronic control system. The material is crushed or screened from the silo into the main engine installed on the chassis and frame, and then discharged through the integrated belt conveyor.
VARIOUS MODELS MOBILE CRUSHER STATION
Mobile Jaw Crusher Station
Mobile Sand Making Station
MORE COMBINATIONS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS

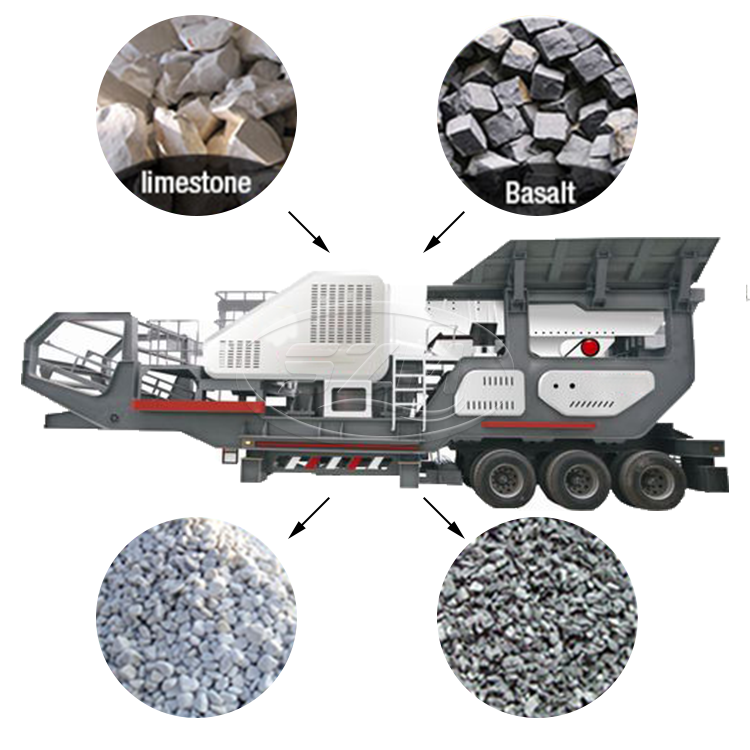

SCOPE OF APPLICATION
COBBLESTONES
BASALT
MARBLE
TECHNICAL PARAMETERS
|
Equipment Model
|
DSM938E69L
|
DSM938FW1214 Il L
|
DSM1142E71L
|
DSM1142FW3151L
|
|
Feeder model
|
GZD-960×3800
|
GZD-960×3800
|
GZD-1100×4200
|
GZD-1100×4200
|
|
Crusher model
|
PE600×900
|
PE-1214Il
|
PE750×1060
|
PEW-13151l
|
|
Main belt model
|
B800×8.5M
|
B800×8.5M
|
B1000×9M
|
B1000×9M
|
|
Main belt discharge height
|
3200
|
3200
|
3500
|
3500
|
|
Side belt type(optional)
|
B450×3M
|
B450×3.2M
|
B500×3.5M
|
B500×3.5M
|
|
Side belt discharge height
|
2800
|
2800
|
3100
|
3000|
|
|
Engine power(kw)
|
180
|
250
|
200
|
300
|
|
Transport length(mm)
|
11900
|
11900
|
13300
|
13300
|
|
Transport width(mm)
|
3100
|
3100
|
3100
|
3100
|
|
Transport height(mm)
|
3650
|
3650
|
4500
|
4500
|
|
Shipping weight(t)
|
43.5
|
50
|
59|
|
59
|
|
Working length(mm)
|
12100
|
12100
|
13500
|
13500
|
|
Job width(mm)
|
3100
|
3100
|
3100
|
3100
|
|
Working height(mm)
|
4100
|
4100
|
5100
|
4800
|
|
PEX-250×1200
|
250×1200
|
210
|
25-60
|
20-61
|
OTHER PRODUCTS
AVAILABLE FROM STOCK
DELIVERY SITE
CASE PRESENTATION
ABOUT US
Our factory
Henan Shunzhi Machinery Co.,Ltd. is a modern enterprise specialized in manufacturing mining-equipment which is integrated with research, production, and marketing of the mining equipments. We provide complete sets of mine selection machines, crusher equipment, sand making equipment, and dryer equipment, etc.
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 30 countries and regions.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements .
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements .
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
BUYING PROCESS
AFTER-SALES SERVIECE
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
