- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RTPEXAL
-
Specification:
-
16mm-32mm
-
Length:
-
50m-300m or as required
-
Thickness:
-
2.0mm-3.0mm
-
Standard:
-
ISO
-
Color:
-
White Yellow Orage or as required
-
Application:
-
Water supply
-
Connection:
-
Axial,Compression,Push-fit
-
Certification:
-
CE ISO
-
Size:
-
1216 1418 1620 2026 2632
-
Working pressure:
-
10 bar
-
Type:
-
Overlapped and Butt-weld
-
Packing:
-
rolls with plastic bag or carton box
-
Sample:
-
Provide Samples
-
OEM:
-
OEM Service Accepted
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
China
-
Brand Name:
-
Ritable
-
Model Number:
-
RTPEXAL
-
Specification:
-
16mm-32mm
-
Length:
-
50m-300m or as required
-
Thickness:
-
2.0mm-3.0mm
-
Standard:
-
ISO
-
Color:
-
White Yellow Orage or as required
-
Application:
-
Water supply
-
Connection:
-
Axial,Compression,Push-fit
-
Certification:
-
CE ISO
-
Size:
-
1216 1418 1620 2026 2632
-
Working pressure:
-
10 bar
-
Type:
-
Overlapped and Butt-weld
-
Packing:
-
rolls with plastic bag or carton box
-
Sample:
-
Provide Samples
-
OEM:
-
OEM Service Accepted

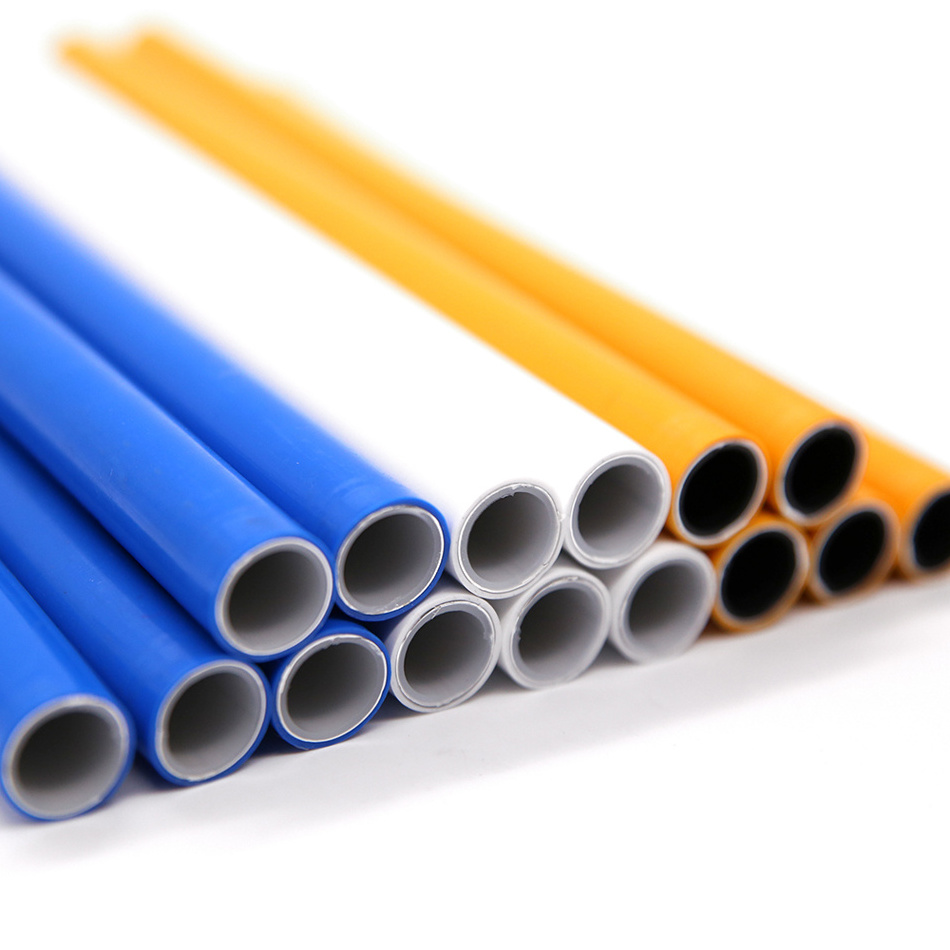

Pex-Al-Pex Multilayer Piping for Water and Heating with Good Quality
PEX-al-PEX piping is a coextruded crosslinked polyethylene composite pressure pipe with a welded aluminum tube reinforcement between the inner and outer layers. The inner and outer crosslinked polyethylene layers are bonded to the aluminum tube by a melt adhesive.
Size Chart
|
Product |
Size(mm) |
OD(mm) |
Tolerance(mm) |
OD(mm) |
Tolerance(mm) |
|
Butt-Weld PEX-AL-PEX |
16*2.0 |
16 |
+0.3 |
2.0 |
+0.2 |
|
20*2.0 |
20 |
+0.3 |
2.0 |
+0.2 |
|
|
26*3.0 |
26 |
+0.3 |
3.0 |
+0.2 |
|
|
Overlap-Weld PEX-AL-PEX |
16*2.0 |
16 |
+0.3 |
2.0 |
+0.2 |
|
20*2.0 |
20 |
+0.3 |
2.0 |
+0.2 |
|
|
26*3.0 |
26 |
+0.3 |
3.0 |
+0.2 |
|
|
Other size as client required |
|||||
Product Advantage
Easy to bend without rebound
It has the properties of metal pipes and is easy to bend without rebound.
Oxygen Barrier and impermeability
Aluminum layer prevents oxygen from permeating into the pipe
Low dilatation coefficient
Lower thermal dilatation coefficient,improve the dimensional stability of the pipe. The thermal dilatation coefficient is 2.5*10-5m/(m* ℃ ) , which is the 1/6 of PEX pipe.
Product Application
Hot- and cold-water plumbing system
Radiant heating and cooling systems (floors, walls, ceilings)
Outdoor snow and ice melting system
Hydraulic piping and distribution (radiators, fan coils, etc.)
Packing and Delivery
