Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AISpeaker
-
Model Number:
-
L9
-
Control method:
-
Touch
-
Certification:
-
CCC
-
System:
-
Linux
-
Power Supply:
-
100-240V AC
-
Display screen:
-
IPS LCD 480 *480
-
Touch Screen:
-
G+FF
-
WiFi:
-
Yes;802.11 b/g/n
-
ZigBee:
-
Yes,ZigBee3.0
-
Size(Appearance ):
-
86mm*86mm*10mm
-
Size (Packing box):
-
118.5x105.5x91mm
Quick Details
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
240Vac
-
Customized support:
-
Packaging customization
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AISpeaker
-
Model Number:
-
L9
-
Control method:
-
Touch
-
Certification:
-
CCC
-
System:
-
Linux
-
Power Supply:
-
100-240V AC
-
Display screen:
-
IPS LCD 480 *480
-
Touch Screen:
-
G+FF
-
WiFi:
-
Yes;802.11 b/g/n
-
ZigBee:
-
Yes,ZigBee3.0
-
Size(Appearance ):
-
86mm*86mm*10mm
-
Size (Packing box):
-
118.5x105.5x91mm
Product Description
|
Hardware
|
Depict
|
|
CPU
|
R528 1.5GHz
|
|
Power supply
|
220V,50Hz/AC
|
|
Operating system
|
Linux
|
|
Display screen
|
IPS LCD 480 *480
|
|
Touch Screen
|
G+FF
|
|
Bluetooth
|
Yes
|
|
WiFi
|
Yes;802.11 b/g/n
|
|
ZigBee
|
Yes，ZigBee3.0
|
|
RAM
|
128M/128M
|
|
TF card
|
Yes,Up to 32GB
|
|
USB
|
Yes
|
|
Ethernet
|
10/100M Ethernet
|
|
Other
|
RS485
|
|
Size（Appearance ）
|
86mm*86mm*10mm
|
|
Size （Install）
|
86mm*86mm*70mm
|
|
Size （Packing box）
|
118.5x105.5x91mm
|
|
Colour
|
one physical key, wake up screen/pause screen/long press to restart
|
|
Net Weight（Individual machine）
|
158g
|
|
Gross Weight（With packaging）
|
291g
|

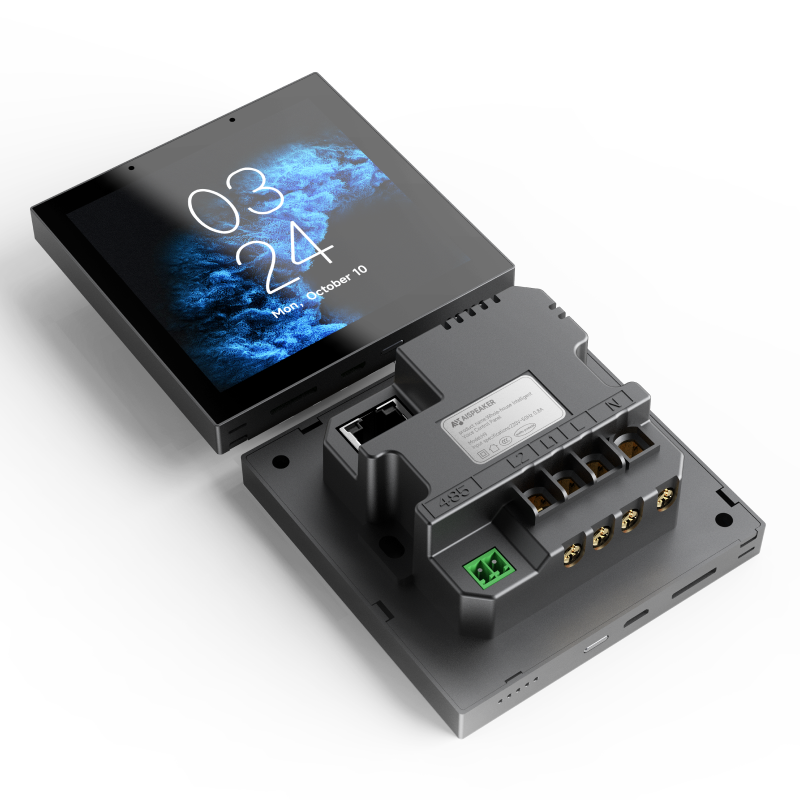

Two Relay、Can Be Connected To Intelligent Light
The product supports the connection of two relays, directly replace the ordinary switch, a single way up to 300W different lamps, can also be customized access to different non-intelligent products, without additional collocation to buy smart switches, you can easily achieve lighting control and scene control of the whole house, can be used as a smart home iot touch screen control panel;
Compatible with anyone, compatible with any situation.
Easy Access To Tuya Gateway
The product comes with Tuya gateway, just scan the code with Tuya APP, you can easily and quickly bind the device account, synchronize all devices under the account, become the central control system of smart home, you can also remotely control the device and scene through the mobile APP, enjoy the convenience and efficiency of smart life.
Stable System
The self-developed HomeOS operating system, simple interface layout, humanized function partition, even if the access to more devices, create more scenes, can be clear at a glance, easy to control;
Beautiful & Simple Design Style
The appearance is small and exquisite, simple and elegant, and the unique light luxury Nordic style is perfectly integrated into the modern hotel and home style, making people feel comfortable and warm.
|
Product Specifications:
|
|
|
|
|||
|
Color:
|
Deep gray
|
Dimensions:
|
86mm86mm10mm
|
|||
|
Installation dimensions:
|
86mm86mm70mm
|
Display:
|
4-inch HD IPS, resolution of 480*480
|
|||
|
CPU:
|
R528 Dual-core 1.5GHz
|
Network:
|
Wireless 802.11b/g/n, 10/100M Ethernet
|
|||
|
Interfaces:
|
RS485, two relays (L1, L2), live and neutral wire interface (L, N)
|
Installation method:
|
Embedded
|
|||
