Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UNITE
-
Model Number:
-
U-256TPRO tire changer machine
-
Warranty:
-
24 Months
-
Product name:
-
Tire Changer Machine
-
Application:
-
Automotive Tire Repair
-
Certification:
-
CE ISO
-
External clamping:
-
12~26"
-
Internal clamping:
-
15~28"
-
Max.wheel diameter:
-
≤1143mm (45")
-
Max.wheel width:
-
≤406mm (16")
-
N/G weight:
-
285/330 kg
-
Package dimension:
-
1130*900*950mm (3.7*3.0*3.1ft)
Quick Details
-
Motor Power:
-
110V (1pH)/ 220V (1/3pH)/380V(3pH)
-
Operating Pressure:
-
8~10 bar(116~145 psi)
-
Power Supply:
-
110v (1ph)/ 220v (1/3ph)/380v(3ph)
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UNITE
-
Model Number:
-
U-256TPRO tire changer machine
-
Warranty:
-
24 Months
-
Product name:
-
Tire Changer Machine
-
Application:
-
Automotive Tire Repair
-
Certification:
-
CE ISO
-
External clamping:
-
12~26"
-
Internal clamping:
-
15~28"
-
Max.wheel diameter:
-
≤1143mm (45")
-
Max.wheel width:
-
≤406mm (16")
-
N/G weight:
-
285/330 kg
-
Package dimension:
-
1130*900*950mm (3.7*3.0*3.1ft)
Product Information
Product Description
Professional pneumatic tire changer machine semi automatic car tire changer changing machine tire machine changer

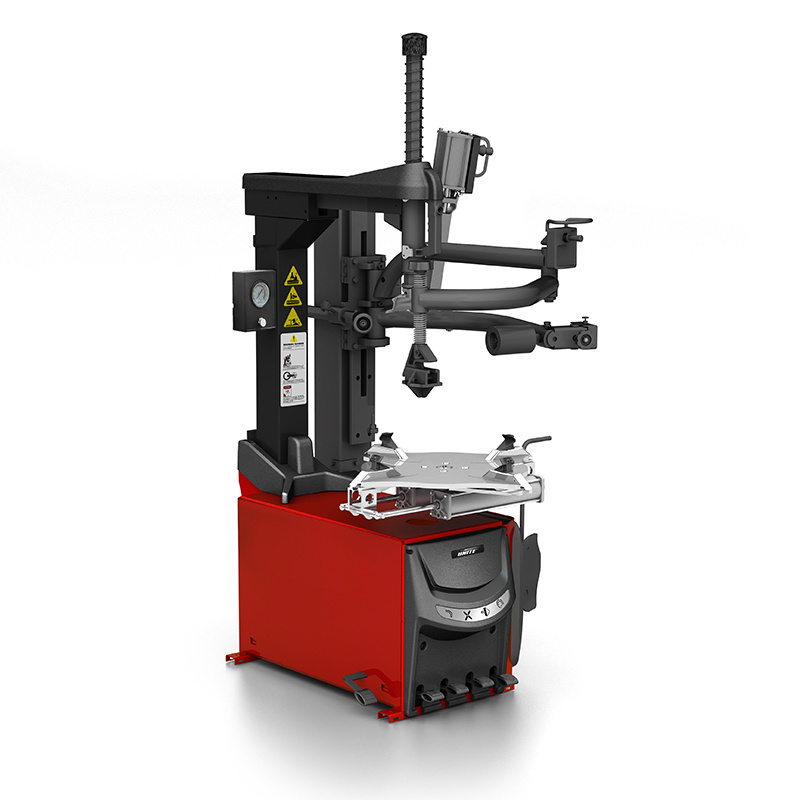

The U-256TPRO is an automatic mount/demount head tilting type tyre changer with a standard automatic mount/demount head T03,28"turntable, and 12-26" external clamping and 15-28" internal clamping. It features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel positioning. The automatic mount/demount head T03 is lever-less and provides up to 500kg of power. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.
Features:
1.28" Turntable
2.12~26" External clamping
3.15~28" Internal clamping
4. Independent Help Arm System
The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance of wheel positioning, bead pressing, bead lifting andloosening, and other functions.Such As:
* roller-bead pressing
* roller-bead lifting
* 360° rotatable combination tyre pressing head-bead pressing
* 360° rotatable combination tyre pressing head - quick wheel clamping or off/on from the turntable
5. Automatic Mount/Demount Head t03
* Lever-less - no need to lift the bead manually;
* The patented lever-less tool provides up to 500kg of power.
6. Plastic Protector
Triple protection, avoiding scratches on the steel ring
* plastic mount/demount head protector;
* plastic jaw protector;
* bead breaker shovel protector.
Features:
1.28" Turntable
2.12~26" External clamping
3.15~28" Internal clamping
4. Independent Help Arm System
The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance of wheel positioning, bead pressing, bead lifting andloosening, and other functions.Such As:
* roller-bead pressing
* roller-bead lifting
* 360° rotatable combination tyre pressing head-bead pressing
* 360° rotatable combination tyre pressing head - quick wheel clamping or off/on from the turntable
5. Automatic Mount/Demount Head t03
* Lever-less - no need to lift the bead manually;
* The patented lever-less tool provides up to 500kg of power.
6. Plastic Protector
Triple protection, avoiding scratches on the steel ring
* plastic mount/demount head protector;
* plastic jaw protector;
* bead breaker shovel protector.
Product Paramenters
|
Product
|
Fully-automatic tilt back tower
|
|
Product Code
|
U-256TPRO Tire Changer
|
|
External clamping
|
12~26"
|
|
Internal clamping
|
15~28"
|
|
N/G weight
|
285/330 kg (628/728 lbs)
|
|
Package dimension
|
1130*900*950mm (3.7*3.0*3.1ft)
|
|
Air supply pressure
|
8-10bar (116-145 psi)
|
|
Optional power supply
|
110V 1PH/220V(1/3PH)/380V 3PH
|
|
Noise Level
|
≤75 dB
|
