Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WINSUN
-
Supplier Type:
-
TR
-
Voltage:
-
Standard
-
Lead time:
-
1-3 Working Days
-
Quality:
-
High-quality
-
Brand:
-
WINSUN or COM
-
Shipping Term:
-
DHL FEDEX EMS UPS TNT
-
MOQ:
-
1 Piece
-
BOM list service:
-
Support Bom List
-
More details:
-
Contact us
Quick Details
-
Chipset:
-
1 GHz - 1.2GHz - 1.3GHz
-
Application:
-
Industrial
-
Model Number:
-
WS2402
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WINSUN
-
Supplier Type:
-
TR
-
Voltage:
-
Standard
-
Lead time:
-
1-3 Working Days
-
Quality:
-
High-quality
-
Brand:
-
WINSUN or COM
-
Shipping Term:
-
DHL FEDEX EMS UPS TNT
-
MOQ:
-
1 Piece
-
BOM list service:
-
Support Bom List
-
More details:
-
Contact us
Description
Item Name : Analogue Siginal Transmission
Receiver
Power Supply : 3.3-5V
Temp. : -10~+65°
Frequency : 1000~1380Mhz
Channel : 8CH
Transmission : Video Audio Synchronous Transmission
Connector : SMA Male
Size : 52*26*6mm
Weight : 20g

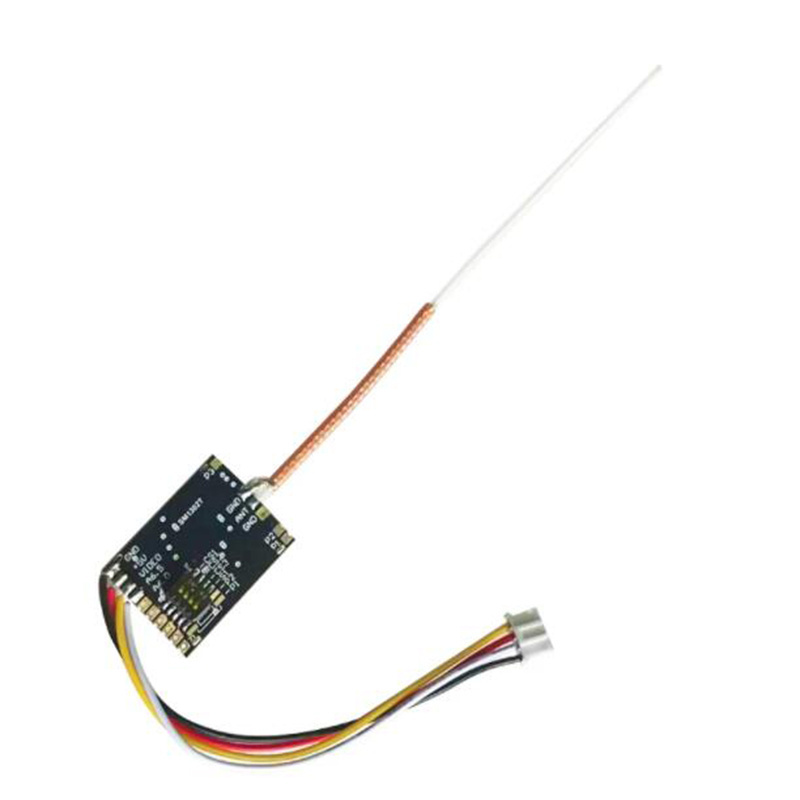

Transmitter
Power : 800mW
Power Supply : 3.3-5v
Working Temp : -10~+65°
Frequency : 1000~1380Mhz
Channel : 8CH
Transmission : Video Audio Synchronous Transmission
Connector : SMA Male
Size : 29*22*5mm
Weight : 10g
VTX SIZE:28X21X3MM
8CH:
CH1:1080mhz
CH2:1120mhz
CH3:1160mhz
CH4:1200mhz
CH5:1240mhz
CH6:1280mhz
CH7:1320mhz
CH8:1360mhz
Note: The high-power transmitter must be connected to the antenna before being powered on. Otherwise, the power amplifier circuit will be burned. Cause transmitter damage!
performance parameter
1, Operating frequency range: 1.0G-1.360GHz
2, Transmission frequency group:
1080MHz 1120MHz 1160MHz 1200MHz
1240MHz 1280MHz 1320MHz 1360MHz
3, Video signal system: PAL/NTSC
4, Audio input impedance: 1K Ω Video input impedance: 75 Ω, video output: 1Vp_ p .
5, Input voltage: DC3.7-5V
6, Working temperature: - 20C °+60C °
7 Module size: 40 * 27 * 4mm
8, Module weight: 6g
| Product Name | Module |
| Model Number | WS2402 |
| Working Termperature | Standard |
| SKYPE | WINSUN22 |
| Datesheet | Please contact us |
| Shipping | DHL/FEDEX/UPS etc |
| Bom List Service | Yes |
|
