Quick Details
-
Model Number:
-
SF/SFZ
-
Coil Number:
-
2or3
-
Use:
-
power
-
Coil Structure:
-
Toroidal, TOROIDAL
-
Output Voltage:
-
13.2kv 13.8kv 24.94kv 34.5kv
-
Rated Power:
-
20mva 30mva 60 mva 63 mva
-
Primary voltage:
-
100/110/160kV Customized
-
Winding Material:
-
Copper
-
Type of tap changer:
-
OLTC or NLTC
-
Connection Symbol:
-
YNyn0d11 or YNd11
-
Cooling Method:
-
ONAN ONAF OFAF
-
Working frequency:
-
50 / 60 Hz
-
Certification:
-
CESI/ISO9001/ISO14001/CNAS
-
Product name:
-

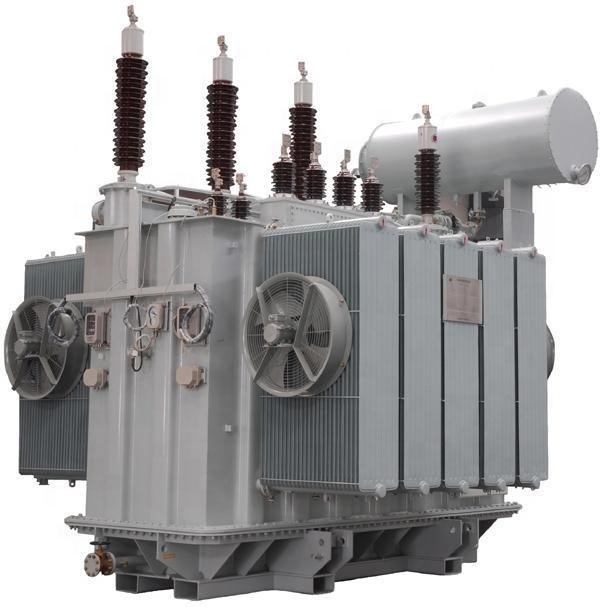

160kv 63 mva 60 mva 20mva 30mva 110kv high voltage transformer price
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Daelim
-
Model Number:
-
SF/SFZ
-
Coil Number:
-
2or3
-
Use:
-
power
-
Coil Structure:
-
Toroidal, TOROIDAL
-
Output Voltage:
-
13.2kv 13.8kv 24.94kv 34.5kv
-
Rated Power:
-
20mva 30mva 60 mva 63 mva
-
Primary voltage:
-
100/110/160kV Customized
-
Winding Material:
-
Copper
-
Type of tap changer:
-
OLTC or NLTC
-
Connection Symbol:
-
YNyn0d11 or YNd11
-
Cooling Method:
-
ONAN ONAF OFAF
-
Working frequency:
-
50 / 60 Hz
-
Certification:
-
CESI/ISO9001/ISO14001/CNAS
-
Product name:
-
160kv 63 mva 60 mva 20mva 30mva 110kv high voltage transformer price
Basic introduction
Beijing Daelim is a professional manufacturer of transformers. It can produce Single phase transformer. Three-phase transformer, Pad mounted transformers, Dry transformer,Distribution transformer and
High voltage transformer
of 69KV and above. It can meet IEEE/ANSI/DOE/CSA and IEC standards. Moreover, Daelim has nearly
20 years
of transformer export experienc., DAELIM transformer have at least
two-year warranty
, moreover Daelim have very good after-sales
installation service team abroad
, so if you have transformer needs, you can contact us.
69kv transformer in Ecuador
110kv transformer in Mexico
Production Description
Daelim brand 220kv,110kv, and 69kv 66kv low-loss series transformer is our independently developed new generation of transformers on the basis of absorption of China and foreign advanced technology, which features low local discharge, low loss, high reliability, strong protection against abrupt short circuit.
11kV power transformer desighned and optimized by sbsorbing and utilizing andwanced technologies at home and abroad to optimize the transformer core, coil, body, leads, fuel tank and other components, which features low partial discharge, low noise, low loss, light weight and high reliability.
Transformer accessories
Dalin's transformers can be assembled with internationally renowned brand accessories such as
Qualitrol
remote installation thermometers and tap changers,
ABB
bushings.
.
Technical Specification
|
|
|
|
|
|
|
|
|
|||||||||
|
Rated Power (kva)
|
High Voltage (kv)
|
H.V.Tap range
|
Low Voltage (kv)
|
Connection symbol
|
Short Circuit Impendence
|
No-load loss(KW)
|
On-load loss(KW)
|
No load current (%)
|
||||||||
|
6300
|
63
66
69
110
132
138
220
|
±8x
1.25%
|
6.3
6.6
10.5
11
33
69
|
YNd11
YNyn0
others |
10-14
|
9.4
|
34
|
0.63
|
||||||||
|
8000
|
|
|
|
|
|
11.2
|
40.4
|
0.63
|
||||||||
|
10000
|
|
|
|
|
|
13.1
|
47.6
|
0.75
|
||||||||
|
12500
|
|
|
|
|
|
15.4
|
56.5
|
0.53
|
||||||||
|
16000
|
|
|
|
|
|
18.5
|
69.5
|
0.49
|
||||||||
|
20000
|
|
|
|
|
|
21.8
|
84.2
|
0.49
|
||||||||
|
25000
|
|
|
|
|
|
25.6
|
99.5
|
0.4
|
||||||||
|
31500
|
|
|
|
|
|
30.4
|
120
|
0.4
|
||||||||
|
40000
|
|
|
|
|
|
36.2
|
140.3
|
0.39
|
||||||||
|
50000
|
|
|
|
|
|
42.6
|
174.3
|
0.39
|
||||||||
|
63000
|
|
|
|
|
|
52
|
210
|
0.39
|
||||||||
|
75000
|
|
|
|
|
|
60
|
238
|
0.49
|
||||||||
|
90000
|
|
|
|
|
|
69
|
274
|
0.49
|
||||||||
|
120000
|
|
|
|
|
|
85
|
328
|
0.46
|
||||||||
|
150000
|
|
|
|
|
|
101
|
385
|
0.42
|
||||||||
|
160000
|
|
|
|
|
|
105
|
404
|
0.42
|
||||||||
|
180000
|
|
|
|
|
|
115
|
436
|
0.42
|
||||||||
|
240000
|
|
|
|
|
|
144
|
539
|
0.4
|
||||||||
Through years of international engineering experience, our factory is capable of producing transformers meeting various international standards, such as IEC, IEEE, ANSI, CSA.
BEIJING DAELIM GREEN EP TECHNOLOGY CO., LTD. Locates in Beijing, China,is a professional transformer manufacturer and international electrical engineering contraction company. The expert team of DAELIM controls each process from product development to design , production and manufacturing in order to achieve its goals. They have strong R&D team and they have more than 20 years of transformer design experience and are familiar with lots of international transformer standards, such as IEC, IEEE / ANSI,CSA, etc. The technical team of DAELIM are experts, electrical engineers, CAD first-class draftsmen, etc. They also use the latest technology, machines and other modern facilities to produce transformers, but meanwhile DAELIM transformers are made of qualified standard materials which meets the standards of world-renowned suppliers through international procurement as well.
