Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0.5~20mm
-
Control Software:
-
CYPCUT
-
Place of Origin:
-
China
-
Brand Name:
-
KNOPPO
-
Weight (KG):
-
3700 KG
-
Core Components:
-
Laser Source
-
Working area:
-
3000*1500MM
-
Machine overall dimensions:
-
4550*2300*2000MM
-
Machine weight:
-
3600KG
-
Laser Head:
-
Switzerland Raytools
-
Laser Source:
-
Raycus
-
Control System:
-
Cypcut
-
Motor:
-
Japan Fuji
-
Driver:
-
Japan Fuji
-
Water Chiller:
-
S&A
-
Product name:
-
economical plate tube fiber laser cutting machine
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
10m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0.5~20mm
-
Control Software:
-
CYPCUT
-
Place of Origin:
-
China
-
Brand Name:
-
KNOPPO
-
Weight (KG):
-
3700 KG
-
Core Components:
-
Laser Source
-
Working area:
-
3000*1500MM
-
Machine overall dimensions:
-
4550*2300*2000MM
-
Machine weight:
-
3600KG
-
Laser Head:
-
Switzerland Raytools
-
Laser Source:
-
Raycus
-
Control System:
-
Cypcut
-
Motor:
-
Japan Fuji
-
Driver:
-
Japan Fuji
-
Water Chiller:
-
S&A
-
Product name:
-
economical plate tube fiber laser cutting machine
cheap IPG big power profitable metal sheet pipe processing fiber laser jet cutting machine with CE certification

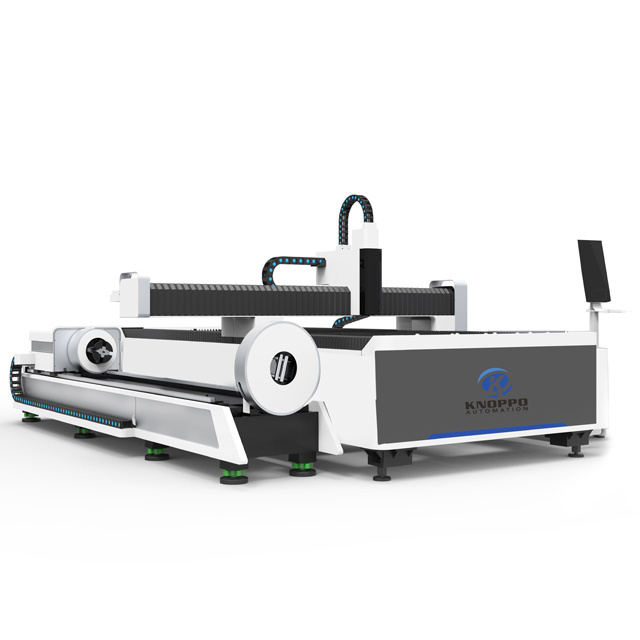

KF-T dual use fiber laser cutting machine can cut metal sheet and tube , sheet cutting area is 3000*1500mm , 6000*1500mm and other option , tube cutting length is 3m or 6m . And most spare parts is from famous brand , Swizerland Raytools laser head , Japan Fuji servo motor , Japan SMC gas valve , Japan Shimpo reducer and Taiwan rail etc , good quality and 3 years warranty .
Product Description
Applicable Industry
Metal working , advertising signs, decoration, arts and crafts, electronics, electric appliances, agricultural machine , metal spare parts , furniture , windows and doors working etc.
Applicable Materials
Materials such as metal , carbon steel , stainless steel , iron , aluminium , brass , copper , mild steel , gavanized steel tube etc.
|
Model
|
|
KF-T
|
|
|
|||
|
Laser Power
|
|
1000W/1500W/2000W/3000W/4000W/6000W /8000W
|
|
|
|||
|
Sheet Working area
|
|
3000*1500mm / 4000*2000mm / 6000*1500mm /6000*2000mm
|
|
|
|||
|
Machine overall dimensions
|
|
4550*2300*2000mm
|
|
|
|||
|
Machine weight
|
|
3600kg
|
|
|
|||
|
Tube Cutting Length
|
|
3000mm / 6000mm
|
|
|
|||
|
Tube Cutting Diameter
|
|
20~220mm
|
|
|
|||
|
Max. linkage speed
|
|
140m/min
|
|
|
|||
|
Max. acceleration
|
|
1.5G
|
|
|
|||
|
Positioning accuracy
|
|
0.03mm
|
|
|
|||
|
Repositioning accuracy
|
|
0.02mm
|
|
|
|||
Switzerland Raytools Or Germany Precitec Laser Head
Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world.
Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.
-
MAX Laser Source
MAX is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Cypcut Control System
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.
Japan YASKAWA Servo Motor
1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
Automatic Rotary And Chuck
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more
stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong.
Self-centering electric chuck, gear
transmission mode, higher transmission efficiency, long working life and high work reliability.
High Power Exhaust Fan
Loading Ball , save labor , easy to load sheet metal .
Double Cooling Water Chiller , Colling laser source and laser head .
Tube Support Point , Prevent tube from being out of shape
Blade Table , easy for sheet metal cutting
T
aiwan Rail and Rack , Good Quality
Sample
Certifications
Our fiber laser cutting machine have CE certificates , all electric drawing and quality is suitable European standard .
Packing&Shipping
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*
Free training to make sure you master the operating of machine at our factory.
*
24 hours online services through Whatsapp, Skype, Email or on the phone.
*
Engineers available for overseas training and after-sale services.
*
Friendly English version manual and operation video CD disk.
