, which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v/220v
-
Power:
-
3.75kw,3/4/7.5kw+0.75kw(vacuum motor)
-
Dimension(L*W*H):
-
1400*600*1100mm
-
Weight:
-
140 kg
-
Product Name:
-
Concrete Floor Grinder
-
Keyword:
-
Hand Push Concrete Grinder
-
Application:
-
Concrete Surface Grinder
-
Grinding Discs:
-
Diamond/Metal/Resin
-
Motor:
-
100% Cooper Wire Motor
-
Model:
-
YM330/YM400/YM630
-
Working Width:
-
330mm/400mm/630mm
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Be-focus
-
Voltage:
-
380v/220v
-
Power:
-
3.75kw,3/4/7.5kw+0.75kw(vacuum motor)
-
Dimension(L*W*H):
-
1400*600*1100mm
-
Weight:
-
140 kg
-
Product Name:
-
Concrete Floor Grinder
-
Keyword:
-
Hand Push Concrete Grinder
-
Application:
-
Concrete Surface Grinder
-
Grinding Discs:
-
Diamond/Metal/Resin
-
Motor:
-
100% Cooper Wire Motor
-
Model:
-
YM330/YM400/YM630
-
Working Width:
-
330mm/400mm/630mm
Pruduct Show

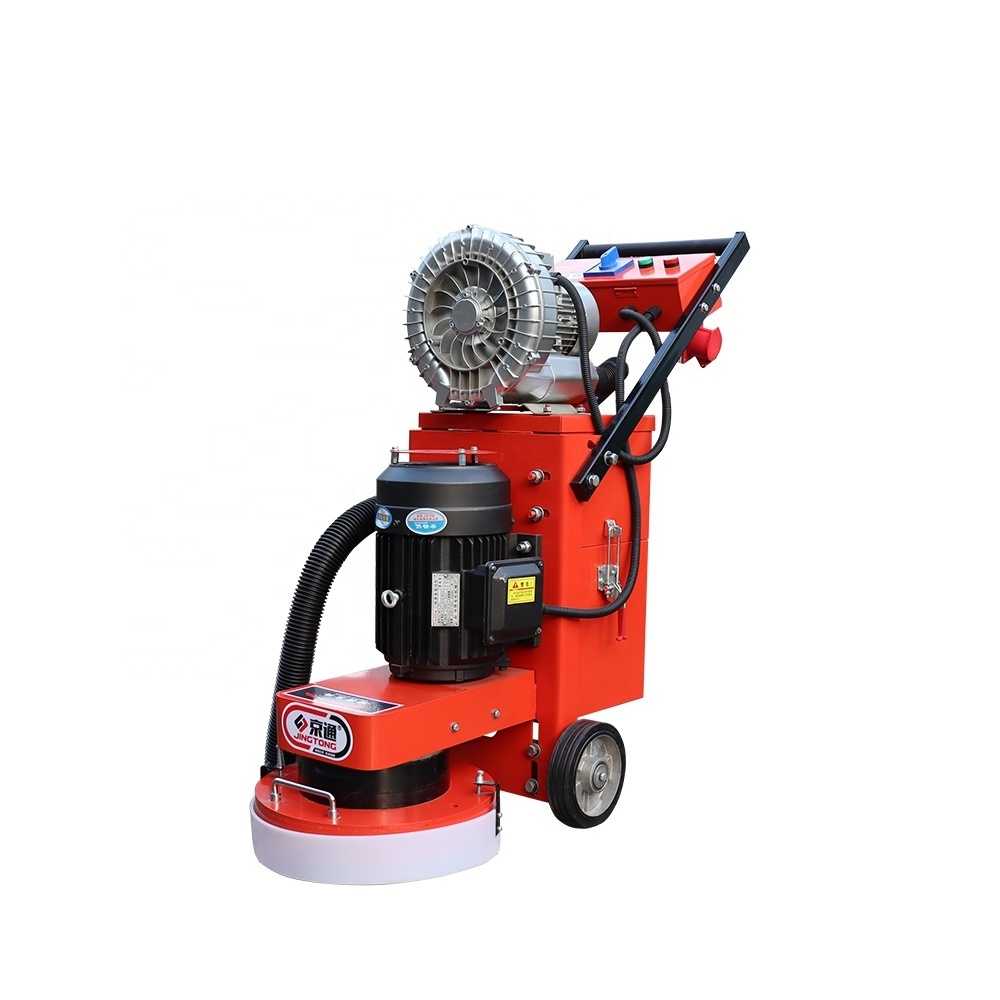

The concrete grinder is mainly used for the grinding treatment of large or medium-scale ground. It can effectively grind the
concrete surface, epoxy mortar layer and old epoxy floor. It has the characteristics of lightness, flexibility and high work
efficiency. With a vacuum cleaner power socket, the vacuum cleaner power cord can be directly connected to the grinder,avoiding the trouble of needing 2 power cords when working. Equipped with special grinding discs, it can also be used for ground renovation and polishing. It is truly a multi-purpose machine, and it is an ideal equipment for floor engineering treatment.
Product Paramenters
|
Metric Dimensions Specifications
|
|
|
|
|
|
|||||
|
Model
|
YM 330
|
YM 400
|
YM 630
|
YM 720
|
YM 800
|
|||||
|
Host length
|
1100 mm
|
1400 mm
|
1400 mm
|
1500 mm
|
2200 mm
|
|||||
|
Host width
|
450 mm
|
600 mm
|
600 mm
|
600 mm
|
800 mm
|
|||||
|
Host height
|
980 mm
|
1100 mm
|
980 mm
|
1300 mm
|
980 mm
|
|||||
|
Power
|
3kw+0.75kw (vacuum motor)
|
4kw+0.75kw (vacuum motor)
|
7.5kw frequency conversion
|
15 KW
|
15 kw
|
|||||
|
Working wide
|
330mm
|
400MM
|
630MM
|
720 mm
|
800 mm
|
|||||
|
Weight
|
140KG
|
150KG
|
260KG
|
350 kg
|
450 kg
|
|||||
|
Voltage
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE
|
380V 3PHASE
|
|
|||||
|
Imperial Dimensions Specifications
|
|
|
|
|
|
|||||
|
Model
|
YM330
|
YM400
|
YM630
|
YM 720
|
YM 800
|
|||||
|
Host length
|
43.3''
|
55.12''
|
55.12''
|
59.06''
|
86.61''
|
|||||
|
Host width
|
17.72''
|
23.62''
|
23.62''
|
23.62''
|
31.50''
|
|||||
|
Host height
|
38.58''
|
43.31''
|
38.58''
|
51.18''
|
38.58''
|
|||||
|
Power
|
4 hp+1 hp (vacuum motor)
|
5.5 hp+1 hp (vacuum motor)
|
11 hp frequency conversion
|
20 hp
|
20 hp
|
|||||
|
Working wide
|
13''
|
15.7''
|
24.8''
|
28.3''
|
31.5''
|
|||||
|
Weight
|
309 ib
|
331 ib
|
573 ib
|
772 ib
|
992 ib
|
|||||
|
Voltage
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE
|
380V 3PHASE
|
380V 3PHASE
|
|||||
Details of the product
Product Advantages
1. A dust removal device is designed, which can be connected to an industrial vacuum cleaner for dust-free operation.
2. The fuselage provides a special power supply socket for the vacuum cleaner, which avoids the trouble of needing 2 cables during operation, which is convenient, simple and safer.3. The operation of this machine is stable and reliable, saving labor and effort, and will not damage the quality of the project.
4. Provide coarse, medium and fine diamond grinding discs, users can choose according to different base grinding ground.
5. The operation is simple and comfortable, and the labor intensity is low, which greatly reduces the labor and physical
expenditure.
Why Choose Us
Company profit
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.
Production Capacity
The company cooperates with all major engineering projects
R&D capability
Packing
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.
FAQ
1. Who are we? We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There
are total about 21-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine
4. Why should you buy from us not from other suppliers?
Henan
Be-focus
Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel
machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,
WesternUnion,Cash,Escrow; Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean,Hindi,Italian
