Quick Details
-
work heads:
-
two heads
-
frame size:
-
510mm-3500mm
-
max.profile width:
-
100mm
-
max.profile height:
-
120mm
-
voltage:
-
380V-3P-50HZ
-
power:
-
4KW
-
oil tank capacity:
-
40L
-
certification:
-
CE
-
hydraulic system pressure:
-
15Mpa
Quick Details
-
Brand Name:
-
PARKER
-
Model Number:
-
LJJZ2A-100*3500
-
function:
-
connect aluminium window frame corners
-
work heads:
-
two heads
-
frame size:
-
510mm-3500mm
-
max.profile width:
-
100mm
-
max.profile height:
-
120mm
-
voltage:
-
380V-3P-50HZ
-
power:
-
4KW
-
oil tank capacity:
-
40L
-
certification:
-
CE
-
hydraulic system pressure:
-
15Mpa

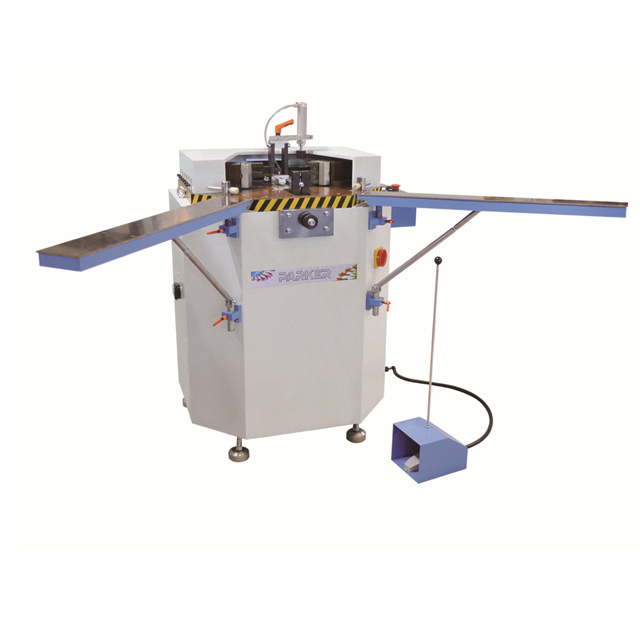

aluminium window frame making corner crimping machine aluminum profile processing machine
Model: LJJZ2A-100*3500
Features:
- Used for corner punching and riveting combination of aluminium window and door. Two corners connecting at one time is available with high efficiency production.
- Wide profile processing range due to convenient locating and clamping device setting.
- High processing accuracy due to super precision linear motion pair adopted in mobbing parts.
- Hydraulic system supplied large punching and riveting force.
- The double-foot brakes make it operate freely, and the reject lowered. So the efficiency and the precision are increased greatly.
- It can feed automatically and operate easily.
Parameters:
