Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Artechcnc
-
Voltage:
-
380V, 50HZ
-
Dimension(L*W*H):
-
1300mm*5000mm*200mm
-
Power (kW):
-
12
-
Weight (KG):
-
1100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Table Structure:
-
Double table Vacuum
-
X Y Transmission:
-
Rack Gear X Y
-
Guide Rail:
-
TAIWAN HIWIN Square Rail
-
motor:
-
Servo motor
-
Spindle power:
-
4.5Kw
-
control system:
-
Nc studio
-
positioning system:
-
Pneumatic position stop system
-
spindle:
-
4 pneumatic air cooling spindle
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Artechcnc
-
Voltage:
-
380V, 50HZ
-
Dimension(L*W*H):
-
1300mm*5000mm*200mm
-
Power (kW):
-
12
-
Weight (KG):
-
1100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Table Structure:
-
Double table Vacuum
-
X Y Transmission:
-
Rack Gear X Y
-
Guide Rail:
-
TAIWAN HIWIN Square Rail
-
motor:
-
Servo motor
-
Spindle power:
-
4.5Kw
-
control system:
-
Nc studio
-
positioning system:
-
Pneumatic position stop system
-
spindle:
-
4 pneumatic air cooling spindle
Features:
1. The spidle speed is up to 32 meters/min, engraving speed is 20 meters/min
2.Adopting advanced Nc studio , operated with the handle, convenient operation, designed with more human nature.
3.Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smoother curves.
4.Y spindle adopts double motors to drive
5.High strength steel tube jointing.
6.Professional and human nature 3D control system,
Technical parameter of cnc router machine
:
low cost pcb cnc wood turning drilling machine price 1325
|
Parameters |
Standard Specifications |
|
X,Y,Z Working Area |
1300*5000*200mm combine woodworking machinery |
|
Spindle Power |
4.5kw HSD spindle |
|
X,Y,Z Traveling Positioning Accuracy |
±0.01/2000mm |
|
Table |
Double table T slot & vaccum |
|
X,Y,Z Rail and Transmission |
Taiwan TBI Ball Screw and gear rack |
|
Max. Rapid Travel Rate |
50000mm/min |
|
Max. Working Speed |
30000mm/min |
|
Spindle Speed |
18000RPM |
|
Drive Motors |
servo motor and driver |
|
Working Voltage |
AC380V/3PH/50Hz or 220V |
|
Command Language |
G Code |
|
Operating System |
Nc studio |
|
Software Compatibility |
Option:Type3, Ucancam, Artcam, solidworks,etc. |
|
Running Environment |
Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
|
Parameters |
Standard Specifications |
|
Oil system |
Automatic |
|
Frame structure |
Welding structure |
|
Collect |
ER32 collect |
|
Dust collector |
1 pieces |

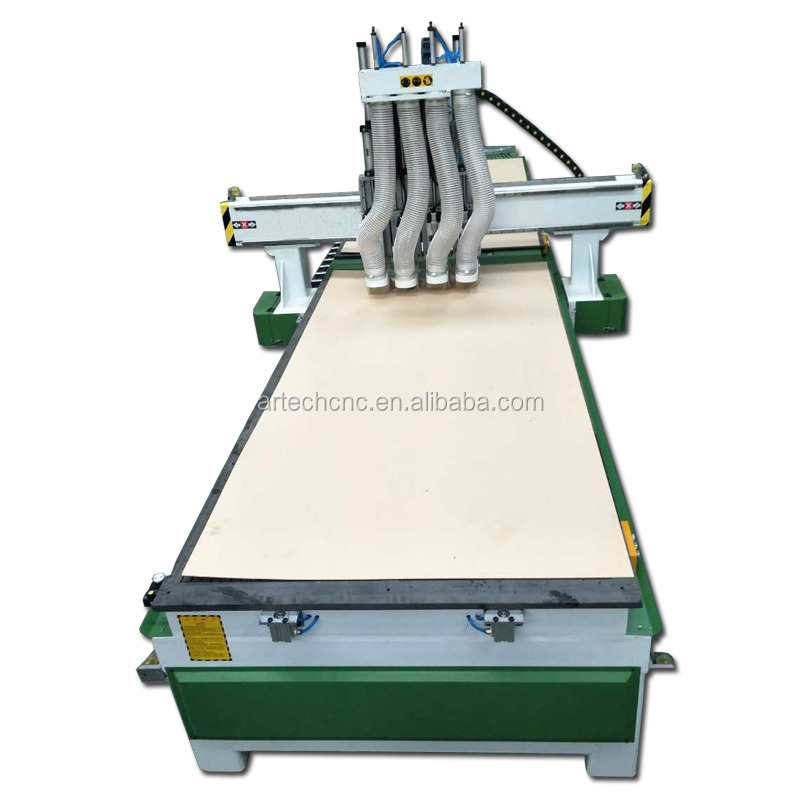

cnc router machine pictuer:
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
