Quick Details
-
Key words:
-
Mason Frame Scaffolding
-
Size:
-
5'x6'4'' 5'x5' 5'x3' 42''x3'
-
Material:
-
Q235 Steel
-
Application:
-
Building Construction
-
Color:
-
Dark Blue
-
Surface:
-
Powder Coated/Galvanized
-
Certificate:
-
ISO9001
-
Standard:
-
USA & America Standard
-
Thickness:
-
42.7x2.4mm 25.4x1.8mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINSHANG, XINSHANG
-
Model Number:
-
Mason Frame Scaffolding
-
Key words:
-
Mason Frame Scaffolding
-
Size:
-
5'x6'4'' 5'x5' 5'x3' 42''x3'
-
Material:
-
Q235 Steel
-
Application:
-
Building Construction
-
Color:
-
Dark Blue
-
Surface:
-
Powder Coated/Galvanized
-
Certificate:
-
ISO9001
-
Standard:
-
USA & America Standard
-
Thickness:
-
42.7x2.4mm 25.4x1.8mm
High Quality 5'x6'4'' Mason Frame Scaffolding For Construction
I.
Basic Information:
•
Manufacturer: Xinshang
• Key Words: Mason Frame Scaffolding
• Material: Q235, Q345 mateails
• Standard: Meet American Standard And Canada Standard
• Size : 5'x6'4'' 5'x5' 5'x3' 3'x3'
• Surface Treatment :Powder Coated , Galvanized
•Tube
Thickness :42.7x2.4mm 25.4x2.0mm/1.8mm
•
Locks : V Locks , Drop Locks , Fast Locks, Canada Locks
•
Standard : USA & Canada standard
• Packaging details: pallets or Bundles
• Delivery time:10-15 Days/40'HQ container
• Minimum order: 300pcs
• Supply ability: 20000pcs / Month
• Brand Stick: Safety brand and customized brand
•Certificate:ISO9001-2008
II. SPEICIFCATION
| Model No. | Type | Specification |
Diameter*Thickness
|
Net Weigt |
| XS-WT364 | Walk Thru Frame | 914*1930mm | 43x2.4mm ; 33x2.3mm | 20.96kg |
| XS-WT464 |
Walk Thru Frame
|
1219*1930mm | 43x2.4mm ; 33x2.3mm | 21.72kg |
| XS-WT564 |
Walk Thru Frame
|
1524*1930mm | 43x2.4mm ; 33x2.3mm | 22.05kg |
| XS-WT4264 |
Walk Thru Frame
|
1066.8*1930mm | 43x2.4mm ; 33x2.3mm | 21.25kg |
| XS-MF564 | Mason Frame | 1524*1930mm | 43x2.4mm;25.4x2.0mm | 20.08kg |
| XS-MF55 | Mason Frame | 1524*1524mm | 43x2.4mm;25.4x2.0mm | 17.83kg |
| XS-MF53 | Mason Frame | 1524*914mm | 43x2.4mm;25.4x2.0mm | 12.42kg |
| XS-MF423 | Mason Frame | 1066.8*14mm | 43x2.4mm;25.4x2.0mm | 11.52kg |
| XS-MF33 | Mason Frame | 914*914mm | 43x2.4mm;25.4x2.0mm | 10.06kg |

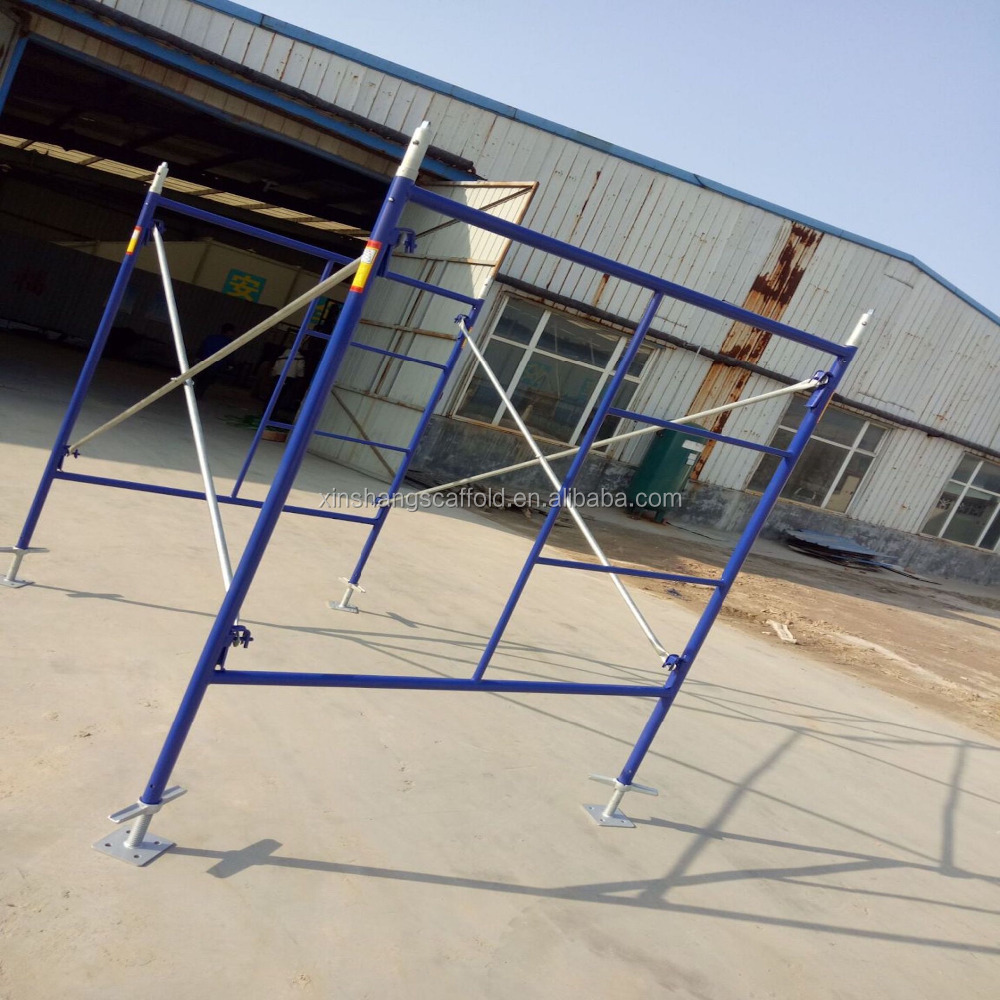

5'x6'4'' Mason Frame With V locks
5'x6'4'' Mason Frame With Canadian locks
5'x6'4'' Mason Frame With Drope locks
III . Packing Details
Thin Film & Pallets Package Or As Per Customer Required
IV.MOQ And PRICE
1.Ordering Start From 200pcs
2.Price Start From US$8.00-16.23 According To Different Length , Width , Thickness, Parts Etc
V. Lead Time And Delivery Time
1.Lead Time: From 10-15 Days Depend On Different Qty And Specs
2.Delivery Time : One Week Before Production Finished , We Will Arrange Book Shipment Or Inform Customer For Booking Vessel
VI. Payment Procedures And Documents Handle For Custom-Clearance
1.Payment Term: T/T +L/C At Sight
2.Documents For Custom-Clearance : Telex-Rleased Or Expressed (B/L, Invoice , Packing List etc) To Customer Address
VII. Follow Up Feedback After Products Used
1. Sales Staff Will Inuiry Feedback For Products After Customer Pick Up
2. Feedback Will Be Sent To Engineering Departmet For Improvement Work
VIII . FACTORY VIEWS
SHANDONG XISNHANG METAL PRODUTS CO.,LTD Is A Manufacturer In Shandong , We Mainly Supply For USA , Canada ,Mexico, and South America For Over Ten Years , You Are Welcomed To Visit To Our Factory And Inquiry Us
Skype :Ping.lu90
