Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEWMAN
-
Dimensions(L*W*H):
-
59X47X45CM
-
Weight:
-
28kg
-
Certification:
-
CE certificate
-
Max. Print Area:
-
200*240mm
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Overseas service center available
-
Pallet Size:
-
320 x 370mm
-
Max Diameter:
-
160mm
-
Max Circumference:
-
200mm
-
Max Printing size:
-
200*240mm
-
Material:
-
steel
-
Net Weight:
-
25kgs
-
Gross Weight:
-
28kgs
-
package:
-
Carton box
-
Application:
-
round surface printing
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
N/A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEWMAN
-
Dimensions(L*W*H):
-
59X47X45CM
-
Weight:
-
28kg
-
Certification:
-
CE certificate
-
Max. Print Area:
-
200*240mm
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Overseas service center available
-
Pallet Size:
-
320 x 370mm
-
Max Diameter:
-
160mm
-
Max Circumference:
-
200mm
-
Max Printing size:
-
200*240mm
-
Material:
-
steel
-
Net Weight:
-
25kgs
-
Gross Weight:
-
28kgs
-
package:
-
Carton box
-
Application:
-
round surface printing

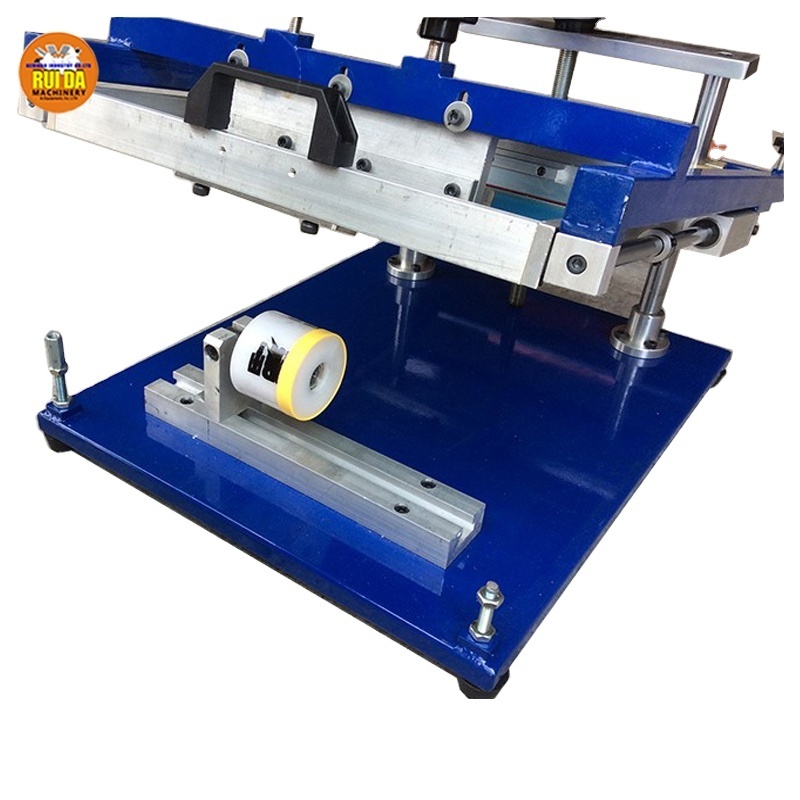

Manual Silk Screen Printing Press Printer Cosmetic Bottle Cylinder Tube Cup Embossing Machine
1. Application
Manual cylinder screen printing machine, mainly used for printing monochrome patterns on the surface of round products. Such as: water cup, water bottle, medicine bottle, cosmetic bottle, paint barrel, and all kinds of cylinder printing.
2. Features
·
With universal bracket: it can be adjusted to meet the requirements of different shapes and dimensions of products.
·
With counter weight: automatic return position and oil return function.
·
New design for easier operation:
adjust the bracket so that the printed surface is in the same plane as the screen plate, then press scraper and pull the handle evenly, at last loosen it upward to complete once printing.
·
The maximum width of printing diameter reach 20cm.
·
The mounting position of the bracket can be adjusted as needed.
3. Parameters
Plate frame material: aluminium alloy
Max supported screen plate dimension: 400*500mm (not included)
Max supported printing area dimension: 300*400mm (not included)
Standard screen plate dimension: 32*37cm ( included , inner dimension: 26*31cm)
Standard screen printing area dimension: 20*25cm( included )
Silk screen plate tensile force: 20-24N/CM
Max printed product diameter:200mm
Minimum printed product diameter: about 1cm
Minimum printed product height: 2.5cm
Max circumference :450mm
Silk-screen mesh number: 300 mesh (if you need other type,please inquire the sales)
Product dimensions: 680*370*680
Machine net weight: 10Kg
We provide silk screen plate customization services
4. Packing list
1PC Cylindric Screen printing machine
1PC Screen plate (32*37cm)
1PC English manual
