- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
5200*2000*2780mm
-
Weight:
-
4.5 KG
-
Drilling Depth:
-
180,200,300,350,400,500,600
-
Mobility:
-
Crawler Tracked, Portable
-
Certification:
-
CE, ISO
-
Showroom:
-
None
-
Engine Model:
-
Quanchai
-
Power Oil:
-
Diesel
-
Travelling System:
-
Rubber Crawler
-
Travelling speed:
-
2.5km/h
-
Gradeability:
-
30%
-
Elevating capacity:
-
12 Ton
-
Swing torque:
-
3200-4600 N.m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TOROS
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
5200*2000*2780mm
-
Weight:
-
4.5 KG
-
Drilling Depth:
-
180,200,300,350,400,500,600
-
Mobility:
-
Crawler Tracked, Portable
-
Certification:
-
CE, ISO
-
Showroom:
-
None
-
Engine Model:
-
Quanchai
-
Power Oil:
-
Diesel
-
Travelling System:
-
Rubber Crawler
-
Travelling speed:
-
2.5km/h
-
Gradeability:
-
30%
-
Elevating capacity:
-
12 Ton
-
Swing torque:
-
3200-4600 N.m

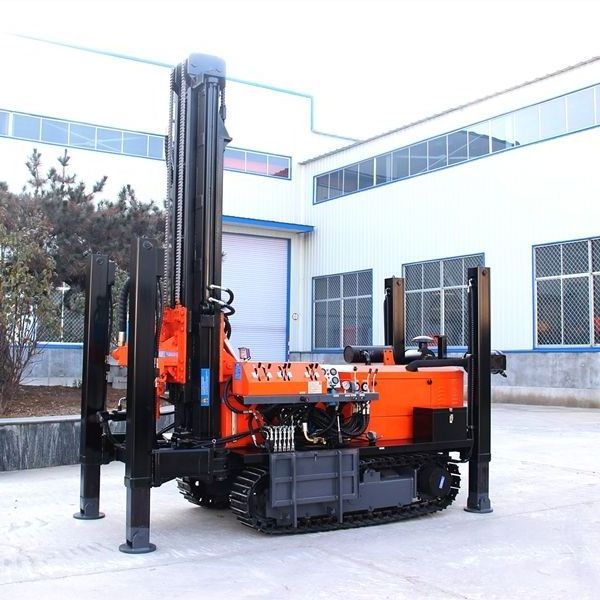

The Water Well Drilling Rig Is Mainly Applicable To Industrial And Civil Drilling, Geothermal Drilling, Has The Advantages Of Compact Structure, Fast Advancing, Mobile And Flexible Wide Application Region Etc.. Pneumatic Well Drill Is Especially Suitable For Water Intake In Mountainous And Rocky Strata.
|
Model & Name
|
TRS-180
|
Travelling speed
|
2.5km/h
|
|
Weight
|
4500 kg
|
Gradeability
|
30%
|
|
Dimensions（mm）
|
3800*1500*2200mm
|
Rated pressure
|
1.7-2.5MPa
|
|
Power Oil
|
Diesel
|
Air consumption
|
17-31m³/min
|
|
Engine Model
|
QUANCHAI
|
Drill rod diameter
|
Φ76,Φ89mm
|
|
Rated Power
|
55 kW
|
Drill rod length
|
1.5m, 2.0m, 3.0m
|
|
Travelling System
|
Rubber Crawler
|
Elevating capacity
|
12 Ton
|
|
Drilling depth
|
180m
|
Swing speed
|
45-65rpm
|
|
Bore diameter
|
140-254mm
|
Swing torque
|
3200-4600 N.m
|
|
Model & Name
|
TRS-200
|
TRS-200X
|
TRS-300
|
TRS-350
|
|
Weight
|
5800 kg
|
5000 kg
|
7000 kg
|
9000 kg
|
|
Dimensions（mm）
|
4000*1750*2450mm
|
3950*1700*2300mm
|
4100*1950*2600mm
|
5900*2000*2850mm
|
|
Power Oil
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
|
Engine Model
|
YUCHAI
|
QUANCHAI
|
YUCHAI
|
YUCHAI
|
|
Rated Power
|
70 kW
|
65 kW
|
85 kW
|
92 kW
|
|
Travelling System
|
Steel Crawler
|
Rubber Crawler
|
Steel Crawler
|
Steel Crawler
|
|
Drilling depth
|
200m
|
200m
|
300m
|
350m
|
|
Bore diameter
|
140-305mm
|
140-350mm
|
140-325mm
|
140-325mm
|
|
Swing torque
|
3500-4800 N.m
|
3500-4700 N.m
|
5700-7500 N.m
|
6.6m
|
|
Model & Name
|
TRS-400
|
TRS-500
|
TRS-600
|
|
Weight
|
10 Ton
|
11.5Ton
|
12Ton
|
|
Dimensions（mm）
|
5900*2100*2850mm
|
6000*2100*2900mm
|
6200*2200*2950mm
|
|
Power Oil
|
Diesel
|
Diesel
|
Diesel
|
|
Engine Model
|
YUCHAI
|
YUCHAI
|
CUMMINS
|
|
Rated Power
|
92 kW
|
118 kW
|
132 kW
|
|
Travelling System
|
Steel Crawler
|
Steel Crawler
|
Steel Crawler
|
|
Drilling depth
|
400m
|
500m
|
600m
|
|
Bore diameter
|
140-350mm
|
140-350mm
|
140-350mm
|
|
Drive Head Stroke
|
6.6m
|
6.6m
|
6.6m
|
