Quick Details
-
Tube Length(ft):
-
4
-
CRI (Ra>):
-
70
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LR1200-TX-54W-F
-
Product Name:
-
led square batten light
-
Lamp Luminous Flux(lm):
-
4320
-
LED Light Source:
-
SMD2835
-
Model No:
-
LR1200-XT-54W-F
-
CCT:
-
2700-6500k
-
Beam angle:
-
180degree
-
Warranty:
-
2years
-
installation:
-
surface mounted & pendant
-
Power Factor:
-
0.6-0.9
Quick Details
-
Warranty(Years):
-
2
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Lamp Body Material:
-
Aluminum
-
Tube Length(ft):
-
4
-
CRI (Ra>):
-
70
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LR1200-TX-54W-F
-
Product Name:
-
led square batten light
-
Lamp Luminous Flux(lm):
-
4320
-
LED Light Source:
-
SMD2835
-
Model No:
-
LR1200-XT-54W-F
-
CCT:
-
2700-6500k
-
Beam angle:
-
180degree
-
Warranty:
-
2years
-
installation:
-
surface mounted & pendant
-
Power Factor:
-
0.6-0.9

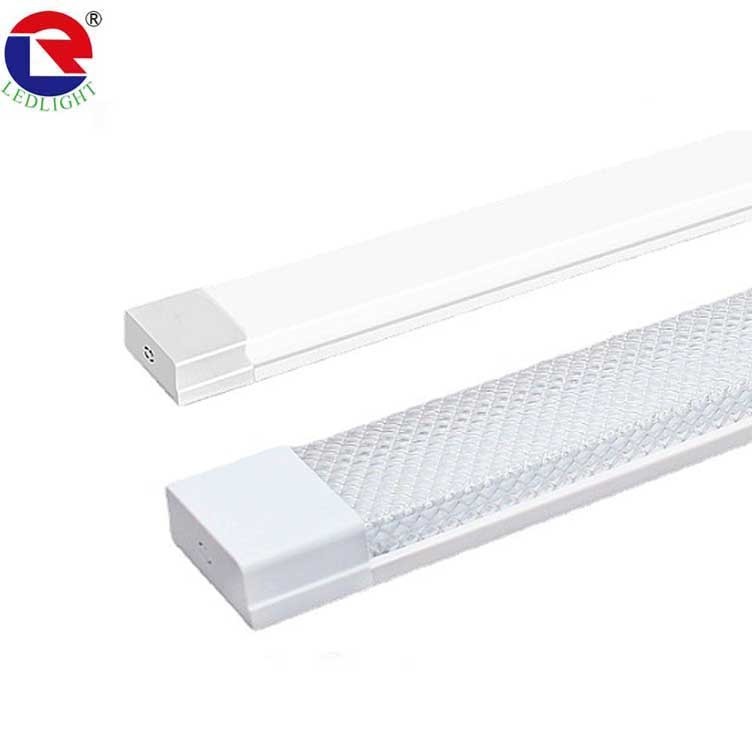

Prismatic diffuser led linear light 600mm 1200mm 54w led square batten light fixture
Product Features
1. Dust-proof and corrosion-proof
2.High lumens, high power, lowest light dissipation, low heat
3. CE, RoHS , TISI approval
4.sufrace mounted & pendant installation
5. special design with male and female connectors can use in series .
6. Widely used for ambient lighting application
7.Constant current driver with unique technology, long lifespan more than 35000hrs..
Product Parameters
| Model | LR600-XT-28W-F | LR600-XT-36W-F | LR1200-XT-36W-F | LR1200-XT-72W |
| Product length | 600mm/2ft | 600mm/2ft | 1200mm/4ft | 1200mm/3ft |
| Output power | 28w | 36W | 54w | 72w |
| Input Voltage | 175-265v | 17 5-265v | 17 5-265v | |
| Luminous Flux | 80 lm/w | |||
| Light source | SMD LED 2835 | |||
| Color Temperature | WW:2700-3300k,PW:4000-4500k,CW:6000-6500k | |||
| CRI |
≥70 |
|||
| Beam Angle | 180 | |||
| Lifespan | 20000h | |||
| Working Frequency | 50/60Hz | |||
| Working Temperature | -20~40C | |||
| Material | Iron+PC | |||
| Power Factor | 0.6 | |||
| Warranty | 2 years | |||
| Certification |
CE,ROHS |
|||
Product Pictures
CE,RoHS,FCC Approved.
Products Application
-Office, Meeting Room, School, Library
-Factory,Warehouse,workshop
-underground Parking lots,Sbuway station , Hospitals
-Commercial Centre, Supermarket, Shopping Mall,
-Swimming pool ,Bathroom ,Restaurant, Restroom
Precaution:Please switch off power before doing any works.
