- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V/380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
910*730*850MM
-
Weight:
-
300 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
meat tumbler vacuum marinator marinating machine
-
Material:
-
304 Food Grade Stainless Steel
-
Capacity:
-
50l 100l 150l 200l 300l 400l 500l
-
Processing:
-
Chicken Pork Beef Duck
-
Power Source:
-
Electricity
-
Feature:
-
Low Energy High Speed
-
power:
-
1.5kw
-
MOQ:
-
1 Set
-
Color:
-
Stainless Steel Color
-
Advantage:
-
High Quaility
Quick Details
-
Production Capacity:
-
50L /100L /200L /300L /500L/600L/800L/1000L/1200L
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WANGTEER
-
Voltage:
-
110V/220V/380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
910*730*850MM
-
Weight:
-
300 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
meat tumbler vacuum marinator marinating machine
-
Material:
-
304 Food Grade Stainless Steel
-
Capacity:
-
50l 100l 150l 200l 300l 400l 500l
-
Processing:
-
Chicken Pork Beef Duck
-
Power Source:
-
Electricity
-
Feature:
-
Low Energy High Speed
-
power:
-
1.5kw
-
MOQ:
-
1 Set
-
Color:
-
Stainless Steel Color
-
Advantage:
-
High Quaility

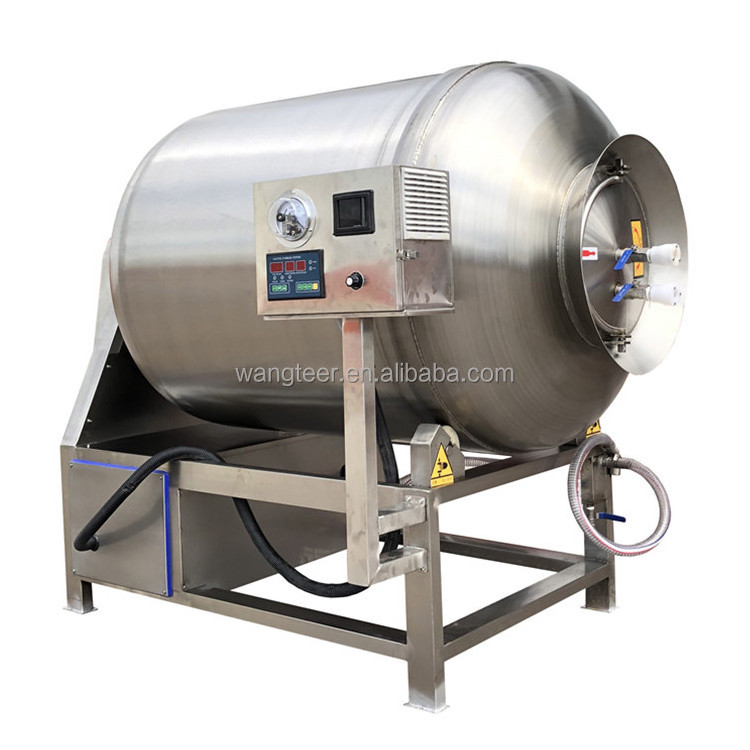

Automatic Stainless Steel Chicken Fish Food Mutton Meat Tumbler Vacuum Marinator Marinating Machine
Products Description
The tumbler uses the principle of physical impact to make the meat move up and down in the drum, collide and beat each other to achieve massage and pickling effects.
The working principle of the hydraulic tumbler: The hydraulic tumbler adopts frequency conversion stepless speed regulation, and the speed range is 3-12 rpm (the low-speed function of 1-4 rpm can be selected). Starts smoothly, reduces the impact when the machine starts, and prolongs the service life of the equipment. Specially equipped with auxiliary material vacuum suction tube. Using (optional) PLC and touch screen control can divide the total working time into six more process cycles, each process cycle is divided into two steps, and each step is individually set for time, speed, vacuum state, and steering. Meet the processing requirements of diverse products. High-standard hygienic design. The whole machine is made of SUS304 high-quality stainless steel; the inside of the tumbler barrel is finely polished, there is no sanitary dead corner, and the discharge position can be completely drained. Optional "V-shaped" and "single-piece" blades, with different rolling strengths, are suitable for different products.
The following effects can be obtained by using a vacuum tumbler:
1. Make the marinating liquid evenly absorbed in the raw meat, and quickly marinate the taste
2. Enhance the binding force of meat and improve the elasticity of meat
3. Ensure the slicability of meat products and prevent cracks when slicing
4. Increase water retention and increase yield
5. Increase the softness and elasticity of the product, and improve the taste of the product
Product Paramenters
|
Model
|
WT-50
|
WT-100
|
WT-200
|
WT-300
|
WT-500
|
WT-600
|
WT-800
|
WT-1000
|
|
Capacity
|
50L
|
100L
|
200L
|
300L
|
500L
|
600L
|
800L
|
1000L
|
|
Power(kw)
|
1.5
|
1.5
|
2.25
|
2.25
|
2.95
|
2.95
|
4.5
|
5.5
|
|
Vacuum(mp)
|
≦-0.8
|
≦-0.8
|
≦-0.8
|
≦-0.8
|
≦-0.8
|
≦-0.8
|
≦-0.8
|
≦-0.8
|
|
Thickness
|
2mm
|
2mm
|
3mm
|
3mm
|
3mm
|
3mm
|
4mm
|
4mm
|
|
Diameter(mm)
|
500
|
600
|
900
|
1000
|
1000
|
1000
|
1200
|
1200
|
|
Size(m)
|
0.91*0.73*0.85
|
1.13*0.71*1.1
|
1.45*0.8*1.45
|
1.76*1*1.5
|
2*1*
1.55
|
2.06*1.1*
1.57
|
2.6*1.2*
1.8
|
3.1*1.35*
1.95
|
The main purpose of the vacuum tumbler is to put processed meat, such as beef, lamb, chicken, duck, goose, pork, fish, etc. in a vacuum state, which can increase the speed of condiments entering the meat, and limit the Keep the moisture in the meat. The meat and additives are melted together to achieve the purpose of fresh and tender meat and high yield. It is used to produce sausages, suitable for the curing and processing of western-style sausages, ham, bacon, barbecue, poultry, Chinese-style sauces, and leisure meat products.
