PP melt blown security filter is a widely used filtering equipment in industry; The security filter is composed of a stainless steel shell and a filter element. Liquid or gas passes through the filter element from the inside out and flows out from the center. The magazine particles in the medium are trapped on the surface of the filter element, thus achieving the purpose of filtration and purification.
- Product Details
- {{item.text}}
Quick Details
-
Keyword:
-
security filter
-
Accuracy:
-
0.003-100 micron
-
Temperature:
-
80℃
-
Pressure:
-
1.6 Mpa
-
Number of filter cartridge:
-
3-300
-
flow rate:
-
0.1-5000 m³/h
Quick Details
-
Weight (KG):
-
456
-
Place of Origin:
-
China
-
Product name:
-
PP melt Blown Security Filter
-
Keyword:
-
security filter
-
Accuracy:
-
0.003-100 micron
-
Temperature:
-
80℃
-
Pressure:
-
1.6 Mpa
-
Number of filter cartridge:
-
3-300
-
flow rate:
-
0.1-5000 m³/h
Product Overview

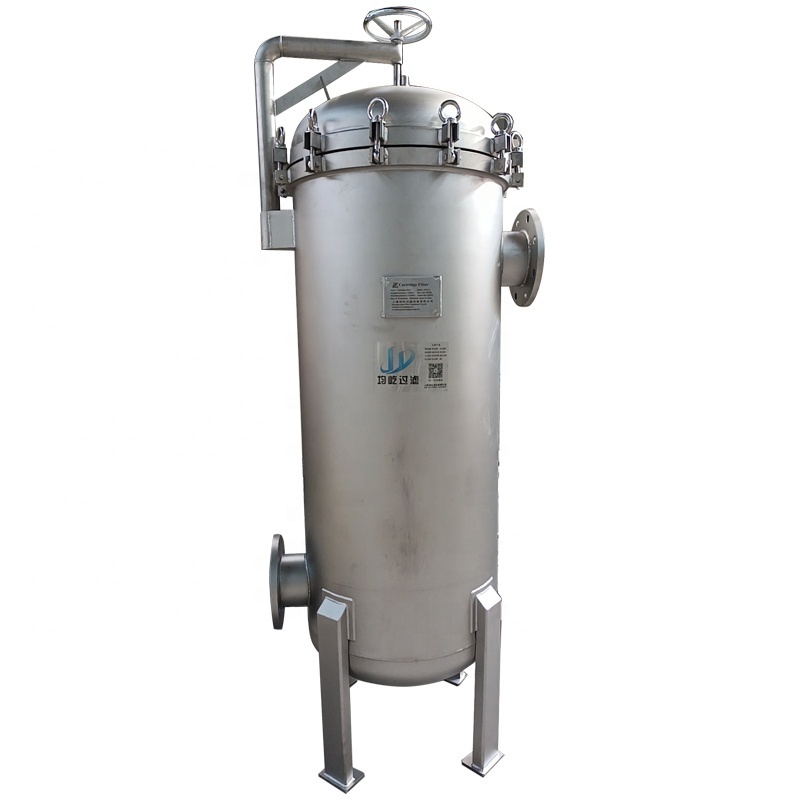

PP Melt Blown Security Filter
|
Main Features
|
|
|
|
|
||||
|
1
|
Good airtightness, compact structure and not easy to damage. Applicable to the harsher working conditions at the production site, without maintenance costs;
|
|
|
|
||||
|
2
|
There is no problem of adsorption loss for the filtering solution, adsorbent and catalyst, and the original composition of the working medium is not changed;
|
|
|
|
||||
|
3
|
Non-toxic, non-magnetic, non-shedding, and good biological compatibility. Because of this performance, titanium rod filters are widely used in the food and beverage industry;
|
|
|
|
||||
|
4
|
Small footprint, high temperature resistance, and good oxidation resistance, suitable for high-temperature precision filtration of various acid-base salts and various organic solvents;
|
|
|
|
||||
|
5
|
Convenient disassembly and assembly, the filter structure is scientific and diverse, and meets various filtering requirements;
|
|
|
|
||||
|
6
|
High filtration accuracy, it can filter particles above 0.2 micron at one time.
|
|
|
|
||||
PRODUCT SPECIFICATIONS
|
Model
|
Diameter of Housing
|
H(housing)
|
H(the center of the water inlet to the ground)
|
H(the center of the water outlet to the ground)
|
H(the bottom of the cylinder to the ground)
|
|
JYSF-3/20
|
Φ180
|
750
|
350
|
160
|
75
|
|
JYSF-5/20
|
Φ200
|
750
|
350
|
160
|
80
|
|
JYSF-5/30
|
Φ200
|
1005
|
350
|
160
|
80
|
|
JYSF-5/40
|
Φ200
|
1260
|
350
|
160
|
80
|
|
JYSF-7/20
|
Φ250
|
792
|
350
|
170
|
90
|
|
JYSF-7/30
|
Φ250
|
1046
|
350
|
170
|
90
|
|
JYSF-7/40
|
Φ250
|
1300
|
350
|
170
|
90
|
|
JYSF-12/20
|
Φ300
|
850
|
450
|
220
|
90
|
|
JYSF-12/30
|
Φ300
|
1100
|
450
|
220
|
90
|
|
JYSF-12/40
|
Φ300
|
1360
|
450
|
220
|
90
|
|
JYSF-15/30
|
Φ350
|
1100
|
450
|
220
|
105
|
|
JYSF-15/40
|
Φ350
|
1365
|
450
|
220
|
105
|
|
Model
|
|
Inlet/Outlet
|
Sewage outlet
|
air evacuation valve
|
|
|
3-core security filter
|
JYSF-3/20
|
G1
|
G1/2
|
G1/4
|
|
|
5-core security filter
|
JYSF-5/20
|
DN32-PN10
|
G1/2
|
G1/4
|
|
|
|
JYSF-5/30
|
DN32-PN10
|
G1/2
|
G1/4
|
|
|
|
JYSF-5/30
|
DN40-PN10
|
G1/2
|
G1/4
|
|
|
7-core security filter
|
JYSF-7/20
|
DN40-PN10
|
G1/2
|
G1/4
|
|
|
|
JYSF-7/30
|
DN50-PN10
|
G1/2
|
G1/4
|
|
|
|
JYSF-7/40
|
DN50-PN10
|
G1/2
|
G1/4
|
|
|
12-core security filter
|
JYSF-12/20
|
DN50-PN10
|
G3/4
|
G1/4
|
|
|
|
JYSF-12/30
|
DN50-PN10
|
G3/4
|
G1/4
|
|
|
|
JYSF-12/40
|
DN50-PN10
|
G3/4
|
G1/4
|
|
|
15-core security filter
|
JYSF-15/30
|
DN50-PN10
|
G3/4
|
G1/4
|
|
|
|
JYSF-15/40
|
DN65-PN10
|
G3/4
|
G1/4
|
|
|
20-core security filter
|
JYSF-20/40
|
DN65-PN10
|
G1
|
G1/4
|
|
