Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPH
-
Input Voltage:
-
220/230/240V
-
Output Voltage:
-
220/230/240V
-
Output Current:
-
48A
-
Output Frequency:
-
50Hz
-
Size:
-
470/754/270MM
-
Certificate:
-
CE,CCC,CQC
-
Warranty:
-
10years
-
Weight:
-
36.8kg, 36.8kg
-
Product name:
-
Inverter
-
Custom support:
-
software reengineering
-
Types of:
-
DC/AC inverter
-
Output current:
-
48A
-
size:
-
470/754/270MM
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Hybrid
-
Protection:
-
IP65
Quick Details
-
Output Type:
-
Single, DUAL, Triple, Three Phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPH
-
Input Voltage:
-
220/230/240V
-
Output Voltage:
-
220/230/240V
-
Output Current:
-
48A
-
Output Frequency:
-
50Hz
-
Size:
-
470/754/270MM
-
Certificate:
-
CE,CCC,CQC
-
Warranty:
-
10years
-
Weight:
-
36.8kg, 36.8kg
-
Product name:
-
Inverter
-
Custom support:
-
software reengineering
-
Types of:
-
DC/AC inverter
-
Output current:
-
48A
-
size:
-
470/754/270MM
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Hybrid
-
Protection:
-
IP65
Products Description
G
rowatt
Solar Inverter
GLOBAL LEADING DISTRIBUTED ENERGY SOLUTION PROVIDER
Residential Inverter Supplier
GLOBAL NO.1
PV Inverter Supplier
GLOBAL ТОP3
User Side Energy Storage Inverter Supplier
GLOBAL NO.1

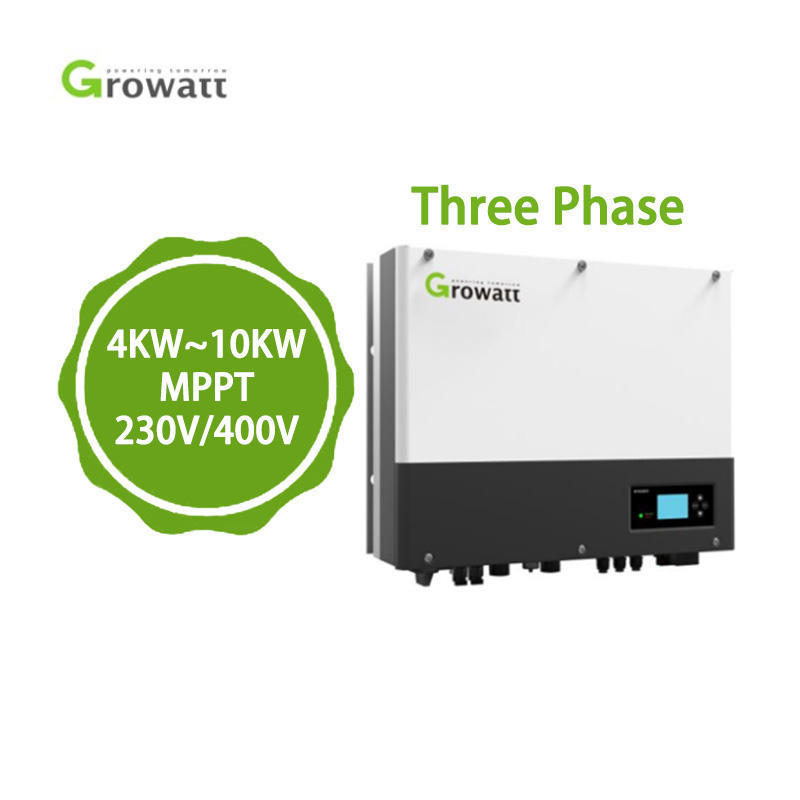

SPH 4000-10000TL3 BH-UP
Residential Storage Inverter
4-10kW
Hybrid
UPS
* 100% three-phase imbalance output
* Smart phase-level power export limitation
* Wide battery voltage 100-550V
* UPS function, 10ms transition
* Scalable system configuration
* VPP interface ready
* DC/AC type II SPD
* 1.5 DC/AC Ratio
* Smart phase-level power export limitation
* Wide battery voltage 100-550V
* UPS function, 10ms transition
* Scalable system configuration
* VPP interface ready
* DC/AC type II SPD
* 1.5 DC/AC Ratio
|
Datasheet
|
SPH
4000
TL3 BH
|
SPH
5000
TL3 BH
|
SPH
6000
TL3 BH
|
SPH
7000
TL3 BH
|
SPH
80000
TL3 BH
|
SPH
100000
TL3 BH
|
||||||
|
Input data(PV)
|
|
|
|
|
|
|
||||||
|
Max. recommended PV power (for module STC)
|
5200W
|
6500W
|
7800W
|
9100W
|
10400W
|
13000W
|
||||||
|
Max. DC Voltage
|
1000V
|
|
|
|
|
|
||||||
|
Start Voltage
|
160V
|
|
|
|
|
|
||||||
|
MPP Voltage Range
|
160V-1000V/600V
|
|
|
|
|
|
||||||
|
No. of MPP trackers
|
2
|
|
|
|
|
|
||||||
|
No. of PV String per MPP tracker
|
1
|
|
|
|
|
|
||||||
|
Max. Input Current per MPP tracker
|
12A
|
|
|
|
|
|
||||||
|
Max. Short-circuit Current per MPP tracker
|
15A
|
|
|
|
|
|
||||||
|
Output data(AC)
|
|
|
|
|
|
|
||||||
|
AC Nominal Power
|
4000W
|
5000W
|
6000W
|
7000W
|
8000W
|
10000W
|
||||||
|
Max. AC apparent Power
|
4000VA
|
5000VA
|
6000VA
|
7000VA
|
8000VA
|
10000VA
|
||||||
|
Nominal AC Voltage
|
230V/400V (310~476V)
|
|
|
|
|
|
||||||
|
AC Grid Frequency
|
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
|
|
|
|
|
|
||||||
|
Max. Output Current
|
6.1A
|
7.6A
|
9.1A
|
10.6A
|
12.1A
|
15.2A
|
||||||
|
Adjustable Power Factor
|
0.8leading…0.8lagging
|
|
|
|
|
|
||||||
|
THDi
|
<3%
|
|
|
|
|
|
||||||
|
AC Grid Connection Type
|
3W+N+PE
|
|
|
|
|
|
||||||
|
Battery data (DC)
|
|
|
|
|
|
|
||||||
|
Battery voltage range
|
100~550V
|
|
|
|
|
|
||||||
|
Max charging and discharging current
|
25A
|
|
|
|
|
|
||||||
|
Continuous charging and discharging power
|
4000W
|
5000W
|
6000W
|
7000W
|
8000W
|
10000W
|
||||||
|
Type of battery
|
Lithium battery
|
|
|
|
|
|
||||||
SPH series
Inverter power S
ingle-phase has: 3KW, 3.6KW, 4KW, 4.6KW, 5KW, 6KW; Three-phase has: 4KW, 5KW, 6KW, 7KW, 8KW, 10KW.
For more models, please contact customer service.
Hybrid Storage Solar System Chart
The cable of meter is suggested not longer than 15m. Because of this, you shouldconsider the cable length between SPH and combiner
box.
The meter must installed in the L line.
The cable of meter is suggested not longer than 15m. Because of this, you shouldconsider the cable length between SPH and combiner
box.
The meter must installed in the L line.
