Quick Details
-
Application:
-
Water tank switch control, water dispenser
-
Type:
-
water solenoid valve, Water Inlet Flow Switch
-
Power (Watts):
-
5W
-
Voltage - Rated:
-
DC12V
-
Mounting Type:
-
Horizontal
-
Size / Dimension:
-
84.5x30.5x57.5mm
-
Description:
-
Plastic Electric Solenoid Valve, Water Inlet Flow Switch
-
Item Name:
-
Plastic Electric Solenoid Valve
-
Status:
-
Normally Closed
-
Pressure:
-
0.02-0.8MPa
-
Interface:
-
G1/2" Male External Thread
-
Voltage:
-
DC12V
-
Rated power:
-
5W
-
Medium:
-
Drink water, Tap water
-
Work:
-
flat-rate system
-
Medium temperature:
-
0-90°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIYmall
-
Model Number:
-
FZ1705
-
Application:
-
Water tank switch control, water dispenser
-
Type:
-
water solenoid valve, Water Inlet Flow Switch
-
Power (Watts):
-
5W
-
Voltage - Rated:
-
DC12V
-
Mounting Type:
-
Horizontal
-
Size / Dimension:
-
84.5x30.5x57.5mm
-
Description:
-
Plastic Electric Solenoid Valve, Water Inlet Flow Switch
-
Item Name:
-
Plastic Electric Solenoid Valve
-
Status:
-
Normally Closed
-
Pressure:
-
0.02-0.8MPa
-
Interface:
-
G1/2" Male External Thread
-
Voltage:
-
DC12V
-
Rated power:
-
5W
-
Medium:
-
Drink water, Tap water
-
Work:
-
flat-rate system
-
Medium temperature:
-
0-90°C

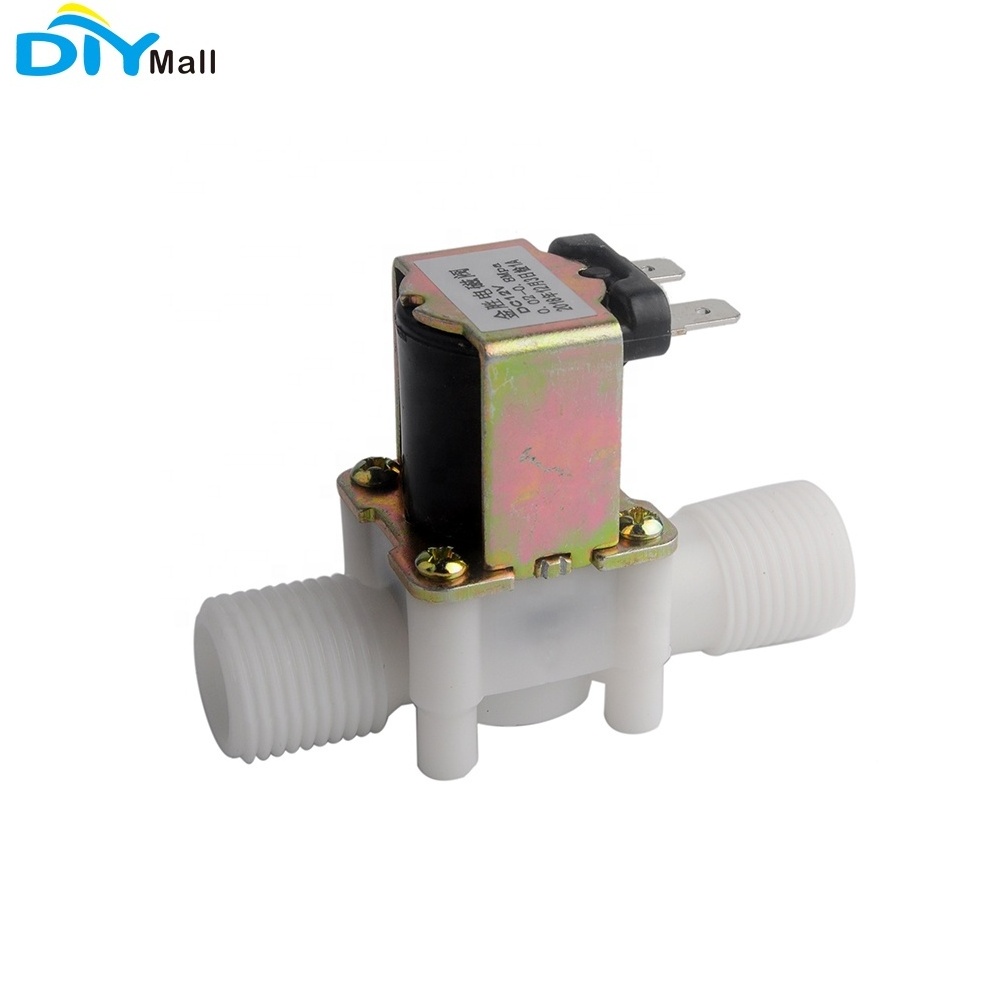

Plastic Electric Solenoid Valve Magnetic DC 12V N/C Water Air Inlet Flow Switch 1/2" 50/60mhz 0.02-0.8MPA Normally Closed
Voltage:DC12V
Interface: Four exceptionally thread
Rated power: 5W
Pressure: This is the micro-pressure valve (with pressure), is suitable for 0.02-0.8MPA pressure
Fluid: (0-90 ° C) pure water, tap water
Work: flat-rate system
Water flow characteristics (with pressure-type): 0.02Mpa> 1.5L / min; 0.10Mpa> 7L / min; 0.30Mpa> 12L / min; 0.80Mpa> 20L / min
Insulation: insulation resistance between conductors and non-conductor is greater than 100MΩ
Insulation class: E class insulation
Life: ≥50 thousand times (laboratory data) ≥30 million times (actually normal use)
Package Included:
1 X Electric Solenoid Valve 12V N/C
Difference of the valve with and without Pressure:
If the water of outlets is sprayed then use the one with pressure (Work under 0.02~0.8Mpa )
If the water of outlets is small water flow then use the one without pressure (Work under 0~0.2pa )
Difference of normally closed and open one:
Normally closed: the solenoid valve have water when power on, and do not have water when power off
Normally open: the solenoid valve do not have water when power on, and have water when power off
Voltage Available:
Normal Voltage: DC12V DC24V AC220V
Support Customize Voltage: DC6V AC12V AC24V AC110V DC36V AC36V DC48V AC48V
