Quick Details
-
Brand Name:
-
First class brand
-
Model Number:
-
SD13
-
Dimension(Long * Breadth * High):
-
5140*3388*3032mm
Quick Details
-
Machine Weight:
-
16.2t
-
Dozing Capacity:
-
6.5m³
-
Place of Origin:
-
China
-
Brand Name:
-
First class brand
-
Model Number:
-
SD13
-
Dimension(Long * Breadth * High):
-
5140*3388*3032mm

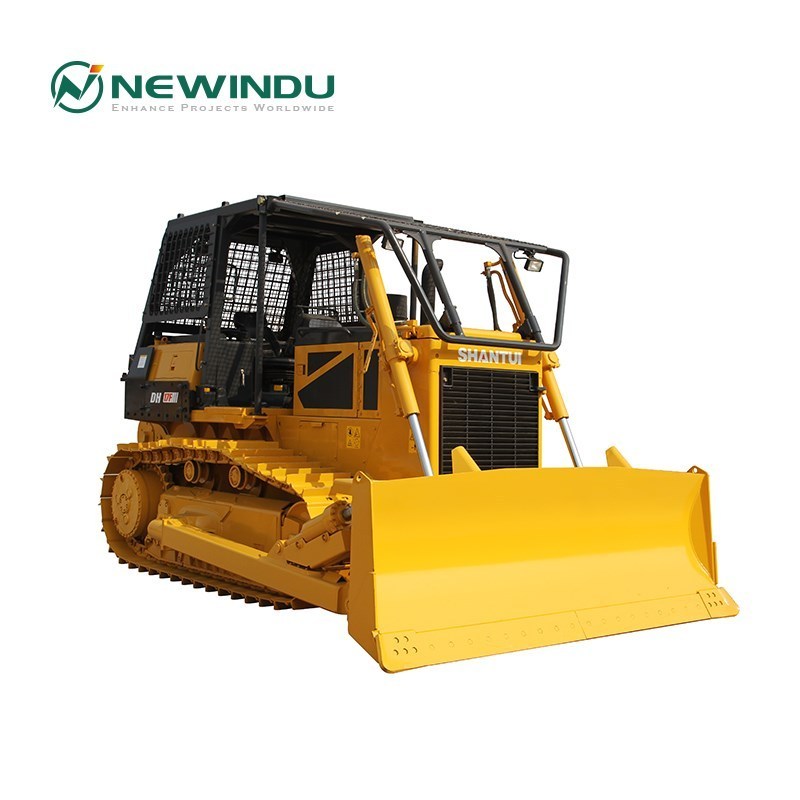

Mini Tractors Bulldozer T130 Lower Track Roller Bulldozer Spare Parts
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-187 1509 5906
Mini Tractors Bulldozer T130 Lower Track Roller Bulldozer Spare Parts
Technical Features
The turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve efficiency.
The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating effic
The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances.
The valves and pumps are reasonably arranged to ease the repairs and maintenances. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system.
The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
The electric system features stable and reliable working. All instruments are controlled by microcomputer, featuring vivid and distinct display and accurate and convenient readings.
The rigid traveling system effectively improves the stability of machine under complicated working conditions.
The comfortable and convenient operating console, light controls, and adjustable seat and armrests provide the operation personnel with comfortable operating experiences.
The working device features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions.
The standard straight tilting blade features strong cutting force to handle all kinds of severe working faces and the outstanding durability of blade is guaranteed by the application of high strength structure and high performance materials.
ERFORMANCE PARAMETERS | Operatiing Weight (kg) | 17000 | |
Rated horsepower (kw/hp) | (120/160) | ||
Minimum turning radius (mm) | 4466 | ||
Ground pressure (kpa) | 58 | ||
ENGINE | Model | Weichai WP10G178E355/Shangchai SC11CB184G2B1 | |
Emission | China II | ||
Type | In-line,direct injction,4-cycles,water cooled,turbocharged | ||
No.of cylinders×Bore×stroke (mm×mm) | 6-126×130/6-121×152 | ||
Piston displacement (L) | 9.726/10.5 | ||
Horsepower/rpm (kw/rpm) | 131/1850,135/1850 | ||
Maximum torque (N.m/r/min) | 764/1300 | ||
DIMENSIONS | Length(mm)X Width(mm)X Height(mm) | 5140×3388×3032 | |
TRAVELING PERFORMANCE | Forward(km/h) | F1:0~3.29 | |
F2:0~5.82 | |||
F3:0~9.63 | |||
Reverse(km/h) | R1:0~4.28 | ||
R2:0~7.59 | |||
R3:0~12.53 | |||
Gradeability(deg) | 30° | ||
Clearance(mm) | 400 |
