Quick Details
-
Chip:
-
Infineon( Import from Germany ) Freescale(USA)
-
Working temperature:
-
-30°C-85°C
-
RF Emission frequency:
-
433.92MHz±50KHz
-
Display:
-
LCD Color display
-
Working Pressure:
-
0-72PSI( Infineon)
-
Working pressure:
-
0-102si(Freescale)
-
Solar Panel Capacity:
-
400mA
-
Default Pressure:
-
26PSI-46PSI( Adjustable )
-
Keyword:
-
TPMS Wireless Solar Internal Sensor System Tyre Pressure Monitor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
1 Years
-
Operating voltage:
-
3.7V-5V
-
Chip:
-
Infineon( Import from Germany ) Freescale(USA)
-
Working temperature:
-
-30°C-85°C
-
RF Emission frequency:
-
433.92MHz±50KHz
-
Display:
-
LCD Color display
-
Working Pressure:
-
0-72PSI( Infineon)
-
Working pressure:
-
0-102si(Freescale)
-
Solar Panel Capacity:
-
400mA
-
Default Pressure:
-
26PSI-46PSI( Adjustable )
-
Keyword:
-
TPMS Wireless Solar Internal Sensor System Tyre Pressure Monitor

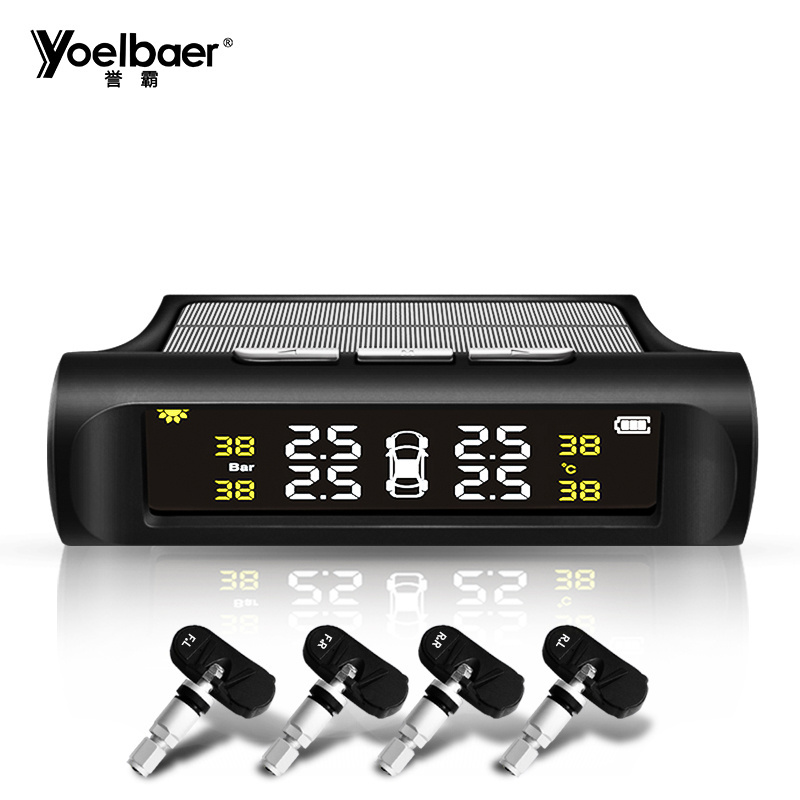

History Cheapest Promotion TPMS Wireless Solar Internal Sensor System Tyre Pressure Monitor
External Battery lifespan : Apbout 1-3 years(Depending on driving time ) Easy DIY installation done in 10 minutes.
Main Features:
1.Use solar energy to get electricity,with 4 internal or external sensors.
2.LCD pannel,with extra Micro USB port for charging.
3.Light weight design for sensor,no need to adjust to be balance when the tire moving.
4.Real-time Monitor the tempreature and pressure with high degree accuracy
5.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.
7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.
8.Support tire position exchange function.
9.Sensor waterproof grade: IP67.
10.With Infineon Chip and RENATA anti-explosion battery.
|
History Cheapest Promotion TPMS Wireless Solar Internal Sensor System Tyre Pressure Monitor |
|
|
Monitor Specification |
|
|
1.Operating Voltage |
3.7-5v |
|
2.Storage Temperature |
-30℃ -90 ℃ |
|
3.Working Temperature |
-30℃ -85 ℃ |
|
4.RF Emission Frequency |
433.92MHZ+/-50MHZ |
|
5.Monitor Mode |
LCD Color Display |
|
6.Working Pressure |
0-116PSI(Freescale) 0-9PSI(Infineon) |
|
7.Bright Operating Current |
≤ 6mA |
|
8.Black Operating Current |
≤ 4mA |
|
9.Size |
95*83*75MM |
|
10.Chip |
Infineon (Import Germany)Freescale(USA) |
|
11. Use time/cycle |
10-15days after get full charged |
|
12.Factory Default Pressure |
26-46 PSI |
|
13.Solar Panel Battery Capacity |
400 ma |
|
10.NW |
0.4KG |
|
11.GW |
0.45KG |
|
Internal Sensor Specification |
|
|
1. Battery Life |
3-5 years |
|
2.Operating Voltage |
3v |
|
3.Storage Temperature |
-30℃ -90 ℃ |
|
4.Working Temperature |
-30℃ -85 ℃ |
|
5.Temperature Resolution |
+/-2℃ (25 ℃) |
|
6.Pressure Range |
0-7.0Bar |
|
7.Waterproof Grade |
IP67 |
|
8.Transmitted Power |
≤ 10dBm |
|
9.Transmitted Frequency |
433.92MHZ |
|
10.Size |
21*17mm |
|
11.Weight |
16g*4pcs |
|
12.Lithium Battery |
CR1632 |
|
Certification |
CE ROHS |
|
Aging test |
full 72hours aging test |
|
QC testing |
100% full inspection before shipping out |
